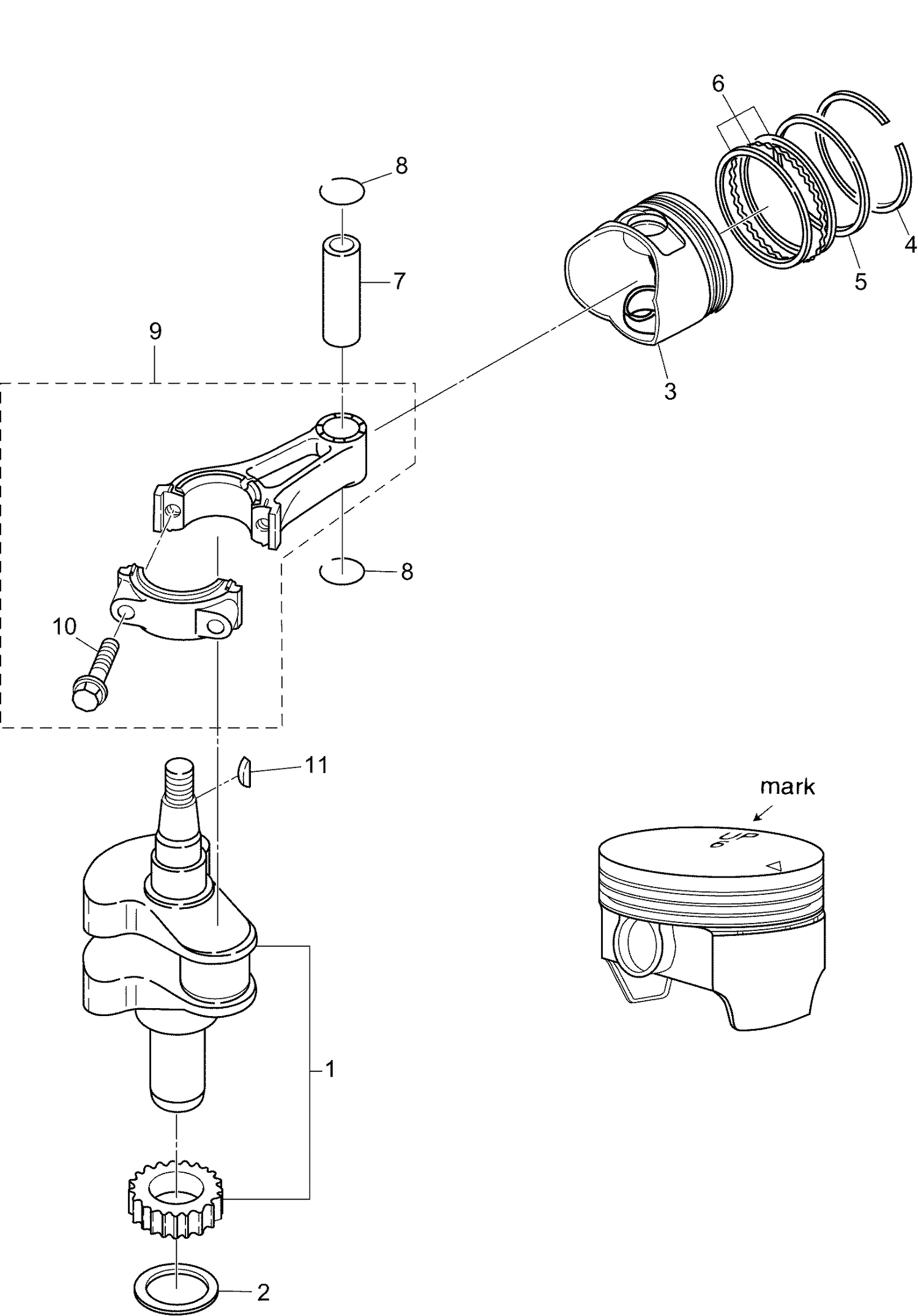

15-2_CRANKSHAFT & PISTON
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 5040950 | Crankshaft Assy |
| 2 | 5040953 | Thrust Plate |
| 3 | 5041243 | Piston, Standard |
| 3 | 5041244 | Piston, 0.5 Oversize |
| 4 | 5040943 | Piston Ring, Standard 1st |
| 4 | 5040946 | Piston Ring, 0.5 Oversize 1st |
| 5 | 5040944 | Piston Ring, Standard 2nd |
| 5 | 5040947 | Piston Ring, 0.5 Oversize 2nd |
| 6 | 5040945 | Piston Ring-Oil, Standard |
| 6 | 5040948 | Pst Rng-Oil .5 O/S |
| 7 | 5040476 | Piston Pin |
| 8 | 5040949 | Piston Pin Clip |
| 9 | 5040951 | Connecting Rod Asy |
| 10 | 5040952 | Conn Rod Bolt |
