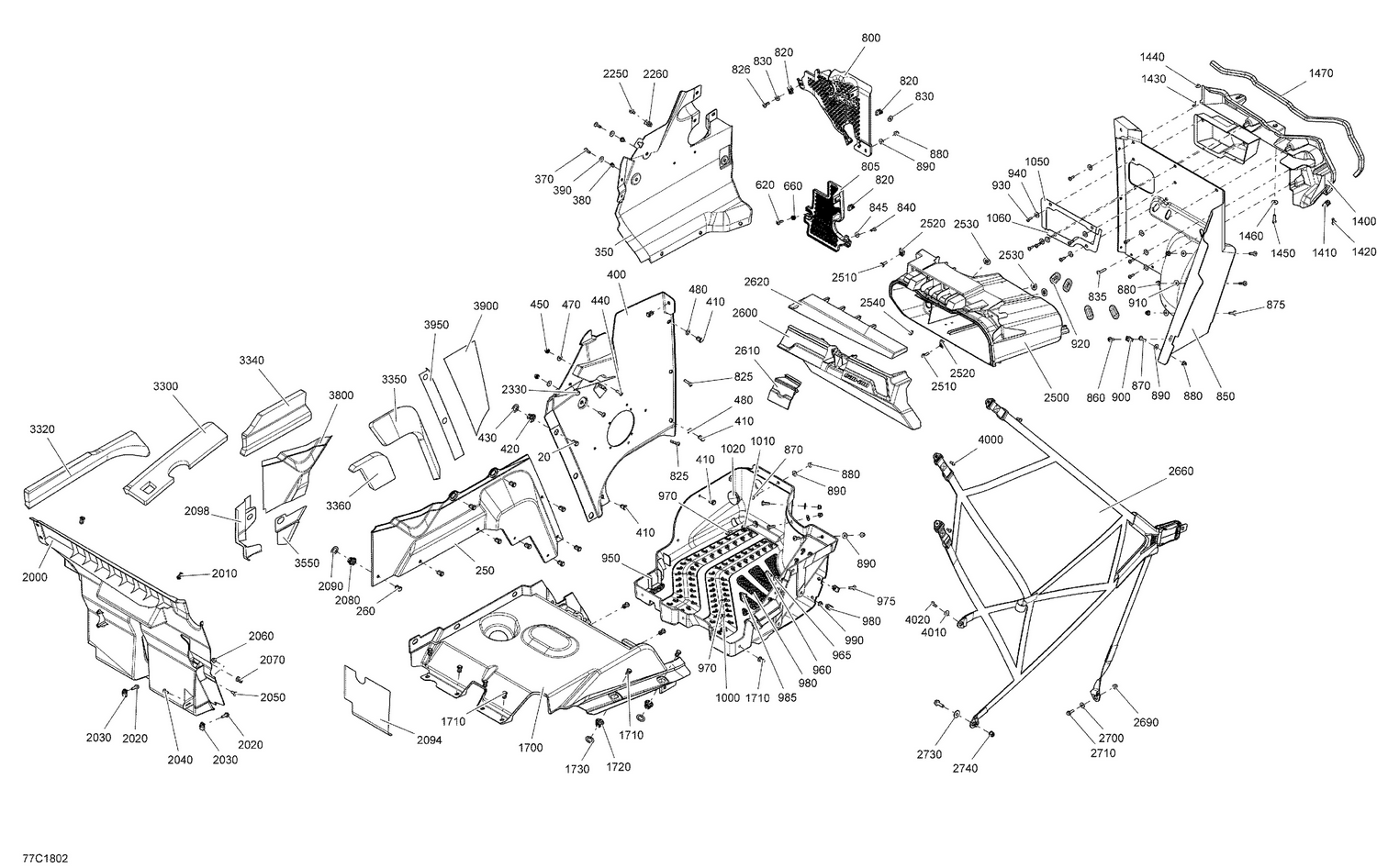

09- Cab Interior Commander Non MAX - Side Panels All Models
Parts (99)
| Ref | Part Number | Description |
|---|---|---|
| 20 | 293150230 | Tuflok Plastic Rivet This part replaces 293150089. |
| 250 | 707900002 | RH Side Console |
| 260 | 293150230 | Tuflok Plastic Rivet This part replaces 293150089. |
| 370 | 250000722 | Torx Screw M6 X 20 |
| 380 | 250100242 | Threaded Insert M6 X 1.0 This part replaces 293450274. |
| 390 | 234062670 | Stainless Steel Flat Washer |
| 410 | 293150230 | Tuflok Plastic Rivet This part replaces 293150089. |
| 420 | 707900133 | Insert |
| 430 | 503189273 | Washer |
| 440 | 250000722 | Torx Screw M6 X 20 |
| 450 | 250100242 | Threaded Insert M6 X 1.0 This part replaces 293450274. |
| 470 | 234062670 | Stainless Steel Flat Washer |
| 480 | 506151252 | Washer |
| 620 | 250000722 | Torx Screw M6 X 20 |
| 660 | 250100242 | Threaded Insert M6 X 1.0 This part replaces 293450274. |
| 800 | 707900178 | Grille |
| 805 | 707900180 | Grille |
| 820 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000957. |
| 825 | 250000843 | Torx Truss Screw M6 X 30 |
| 826 | 250000722 | Torx Screw M6 X 20 |
| 830 | 234062670 | Stainless Steel Flat Washer |
| 835 | 250000843 | Torx Truss Screw M6 X 30 |
| 840 | 250000720 | Torx Screw K50 X 16 |
| 845 | 250200025 | Washer M5 |
| 850 | 707900004 | RH Front Floor |
| 860 | 250000722 | Torx Screw M6 X 20 |
| 870 | 250000712 | Torx Screw M6 X 20 |
| 875 | 250000758 | Torx Screw M6 X 25 |
| 880 | 233261494 | Hex. Flange Elastic Nut M6 |
| 890 | 234062670 | Stainless Steel Flat Washer |
| 900 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000957. |
| 910 | 234062670 | Stainless Steel Flat Washer |
| 920 | 705003668 | Oblong Grommet |
| 930 | 250000720 | Torx Screw K50 X 16 |
| 940 | 234062410 | Flat Washer 6 mm |
| 950 | 707900023 | RH Lower Floor |
| 960 | 250000712 | Torx Screw M6 X 20 |
| 965 | 234062670 | Stainless Steel Flat Washer |
| 970 | 250000722 | Torx Screw M6 X 20 |
| 975 | 250000807 | Torx Truss Screw M6 X 25 |
| 980 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000957. |
| 985 | 250000722 | Torx Screw M6 X 20 |
| 990 | 233261494 | Hex. Flange Elastic Nut M6 |
| 1000 | 234062670 | Stainless Steel Flat Washer |
| 1010 | 250100242 | Threaded Insert M6 X 1.0 This part replaces 293450274. |
| 1020 | 293250242 | Rubber Cover |
| 1050 | 293250252 | Upper Seal |
| 1060 | 293250253 | Bottom Seal |
| 1400 | 707900030 | SUPPORT_PANEL RH - Call your local BRP dealership |
| 1410 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000957. |
| 1420 | 250000722 | Torx Screw M6 X 20 |
| 1430 | 250000720 | Torx Screw K50 X 16 |
| 1440 | 224060201 | Flat Washer |
| 1450 | 207162544 | Hex. Screw M6 X 25 |
| 1460 | 224061201 | Flat Washer |
| 1470 | 219704365 | Was 293200017 Neoprene Seal |
| 1700 | 707900006 | RH Under Seat Plate |
| 1710 | 293150230 | Tuflok Plastic Rivet This part replaces 293150089. |
| 1720 | 707900133 | Insert |
| 1730 | 503189273 | Washer |
| 2000 | 707900166 | DEFLECTOR_BODY PANEL REAR R - Call your local BRP dealership |
| 2010 | 293150230 | Tuflok Plastic Rivet This part replaces 293150089. |
| 2020 | 207662034 | Hex. Flange Screw M6 X 20 |
| 2030 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000957. |
| 2040 | 250000720 | Torx Screw K50 X 16 |
| 2050 | 250000755 | Torx Screw M6 X 16 |
| 2060 | 233261494 | Hex. Flange Elastic Nut M6 |
| 2070 | 293150230 | Tuflok Plastic Rivet This part replaces 293150089. |
| 2080 | 707900133 | Insert |
| 2090 | 503189273 | Washer |
| 2094 | 707900167 | Heat Shield |
| 2098 | 707900184 | Heat Shield |
| 2250 | 250000722 | Torx Screw M6 X 20 |
| 2260 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000957. |
| 2330 | 293150230 | Tuflok Plastic Rivet This part replaces 293150089. |
| 2510 | 207662034 | Hex. Flange Screw M6 X 20 |
| 2520 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000957. |
| 2530 | 414859400 | CAP - Call your local BRP dealership |
| 2540 | 293830005 | Rubber Bumper |
| 2600 | 707900221 | LUGGAGE COVER KIT - Call your local BRP dealership |
| 2610 | 707900031 | Latch |
| 2620 | 707900062 | Trim Glove Box |
| 2660 | 707900062 | Trim Glove Box |
| 2690 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 2700 | 234062410 | Flat Washer 6 mm |
| 2710 | 207662044 | Hex. Flange Screw M6 X 20 |
| 2730 | 234082410 | Flat Washer 8 mm |
| 2740 | 233281414 | Hex. Flange Elastic Nut M8 |
| 3300 | 707900619 | Front Central Console Foam |
| 3320 | 707900620 | Left Upper Lateral Console Foam |
| 3340 | 707900622 | RH Lateral Console Foam |
| 3350 | 707900623 | RH Lateral Console Foam |
| 3360 | 707900624 | RH Lateral Console Foam |
| 3550 | 707900148 | Heat Sheet |
| 3800 | 707900147 | Heat Sheet |
| 3900 | 707900190 | Heat Sheet |
| 3950 | 707900191 | Heat Sheet |
| 4000 | 250000742 | Torx Screw M5 X 14 |
| 4010 | 250200040 | Flat Washer |
