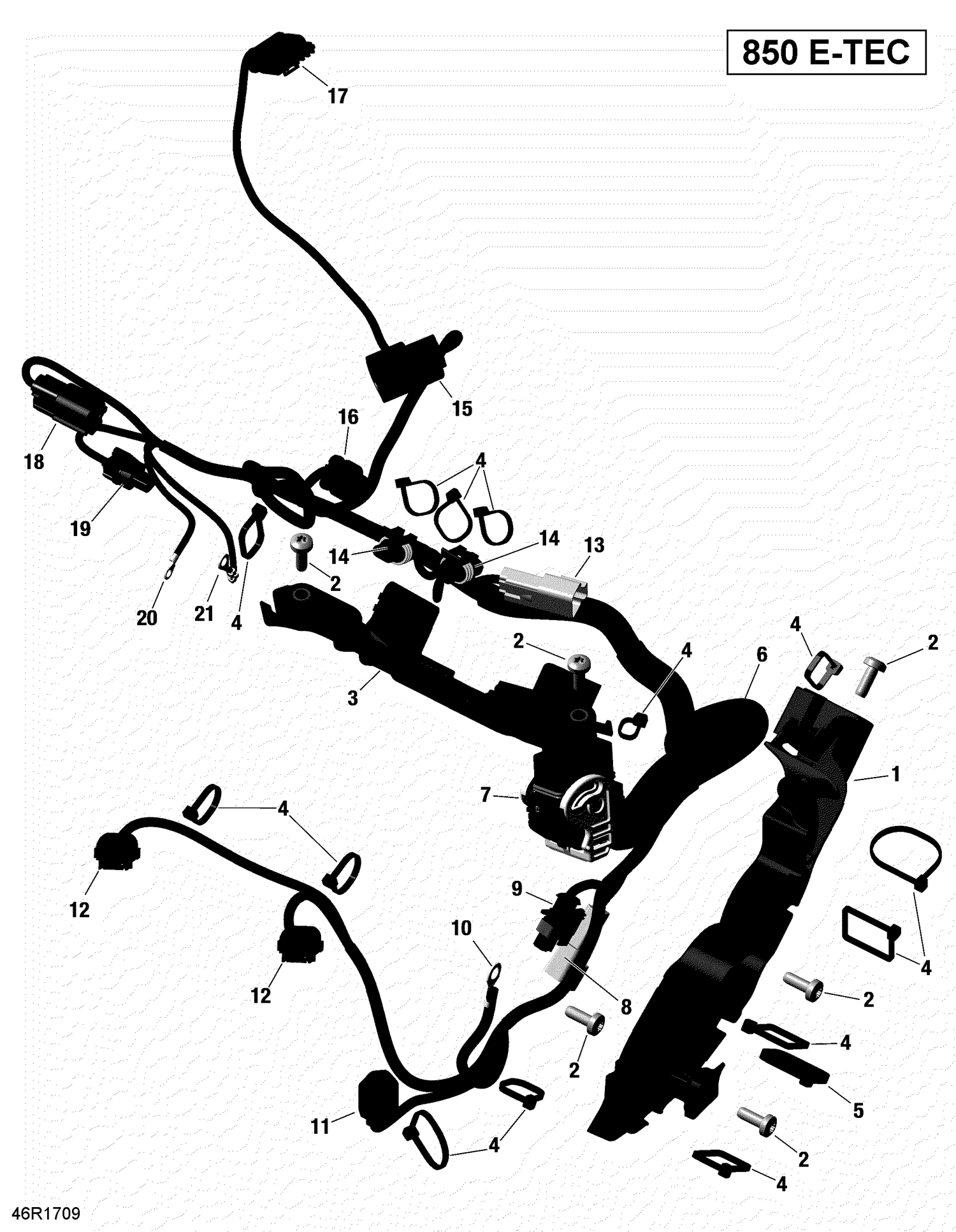

| Ref | Part Number | Description |
|---|
| 1 |
420260152 |
HARNESS SUPPORT - Call your local BRP dealership |
| 2 |
420640324 |
Torx Screw M6 X 16 |
| 3 |
420260156 |
HARNESS SUPPORT - Call your local BRP dealership |
| 4 |
Not |
Available As Spare Part - Tie Rap |
| 5 |
420651397 |
Tie Rap |
| 8 |
409206900 |
Male Housing, 2 Circuits |
| 9 |
278001005 |
Male Housing, 2 Circuits |
| 11 |
415130195 |
Connector |
| 11 |
710000057 |
FEMALE TERMINAL YASAKI - Call your local BRP dealership |
| 11 |
710000058 |
WIRE SEAL YASAKI - Call your local BRP dealership |
| 13 |
409206900 |
Male Housing, 2 Circuits |
| 14 |
409209500 |
Female Housing, 2 Circuits |
| 15 |
515178202 |
Coil Connector |
| 19 |
515177192 |
Female Housing, 2 Circuits |
