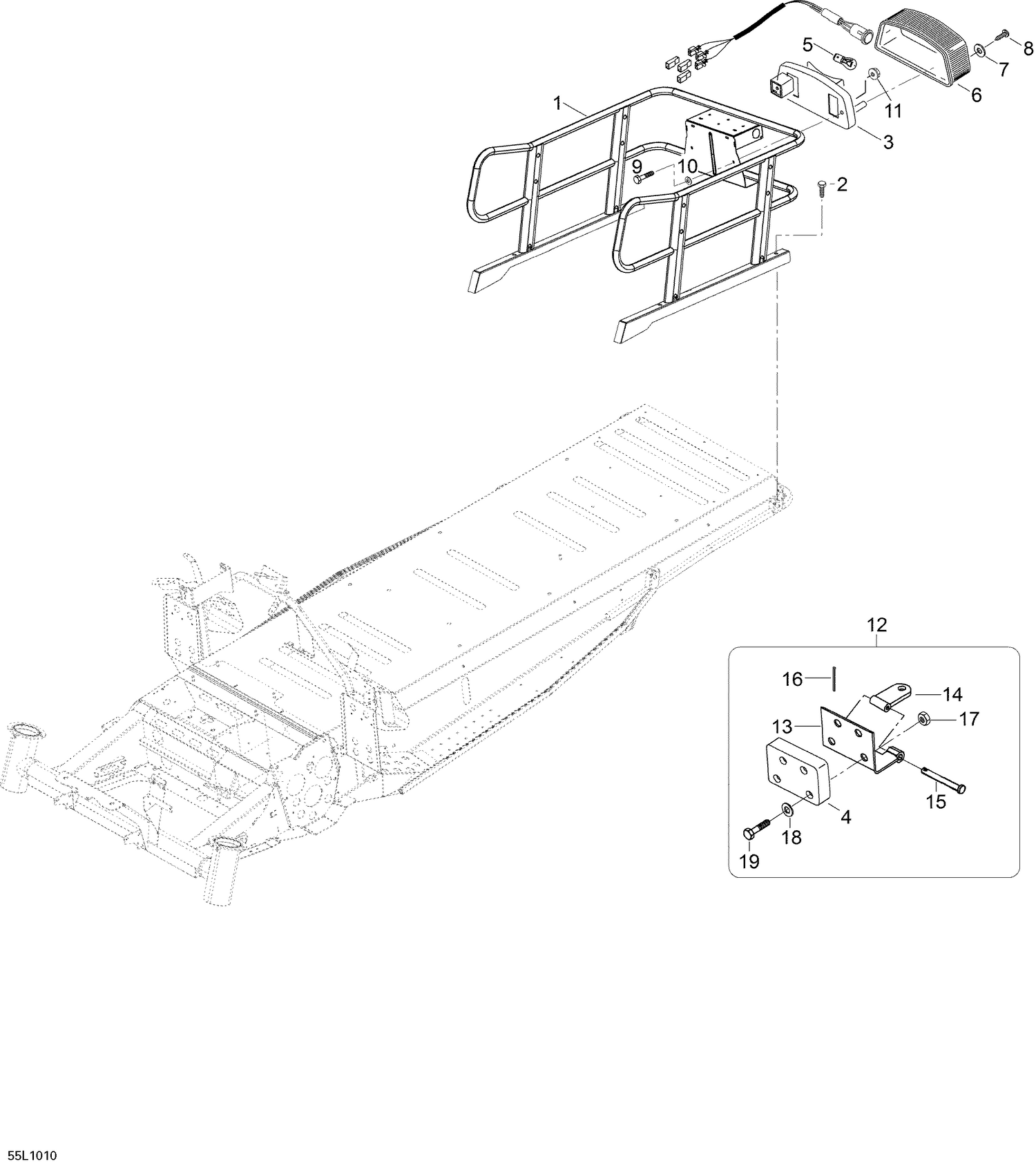

| Ref | Part Number | Description |
|---|
| 1 |
605255117 |
Portable Rack Ass'y |
| 2 |
M40316 |
Screw |
| 3 |
515175397 |
LAMP HOUSING - Call your local BRP dealership |
| 4 |
605351510 |
SPACER - Call your local BRP dealership |
| 5 |
520000758 |
Bulb |
| 6 |
414513700 |
Lens |
| 7 |
414516400 |
Washer - Call your local BRP dealership |
| 8 |
209632540 |
Phillips Tapping Screw M3.9 X 25 |
| 9 |
207764044 |
BOLT CARRIAGE DIN.603 - Call your local BRP dealership This part replaces M40064. |
| 10 |
20077 |
M8 Washer This part replaces M20077. |
| 11 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 This part replaces M33200. |
| 12 |
Not |
Available As Spare Part - Hitch Tongue Ass'y |
| 13 |
5344151 |
Fitting Plate This part replaces M5344151. |
| 14 |
548745 |
TONGUE WELD - Call your local BRP dealership This part replaces M548745. |
| 15 |
41031 |
Cotter Pin This part replaces M41031. |
| 16 |
560309200 |
PIN-RETAINER - Call your local BRP dealership |
| 17 |
232581414 |
Hex. Elastic Stop Nut M8 |
| 18 |
234081410 |
Flat Washer 8 mm |
