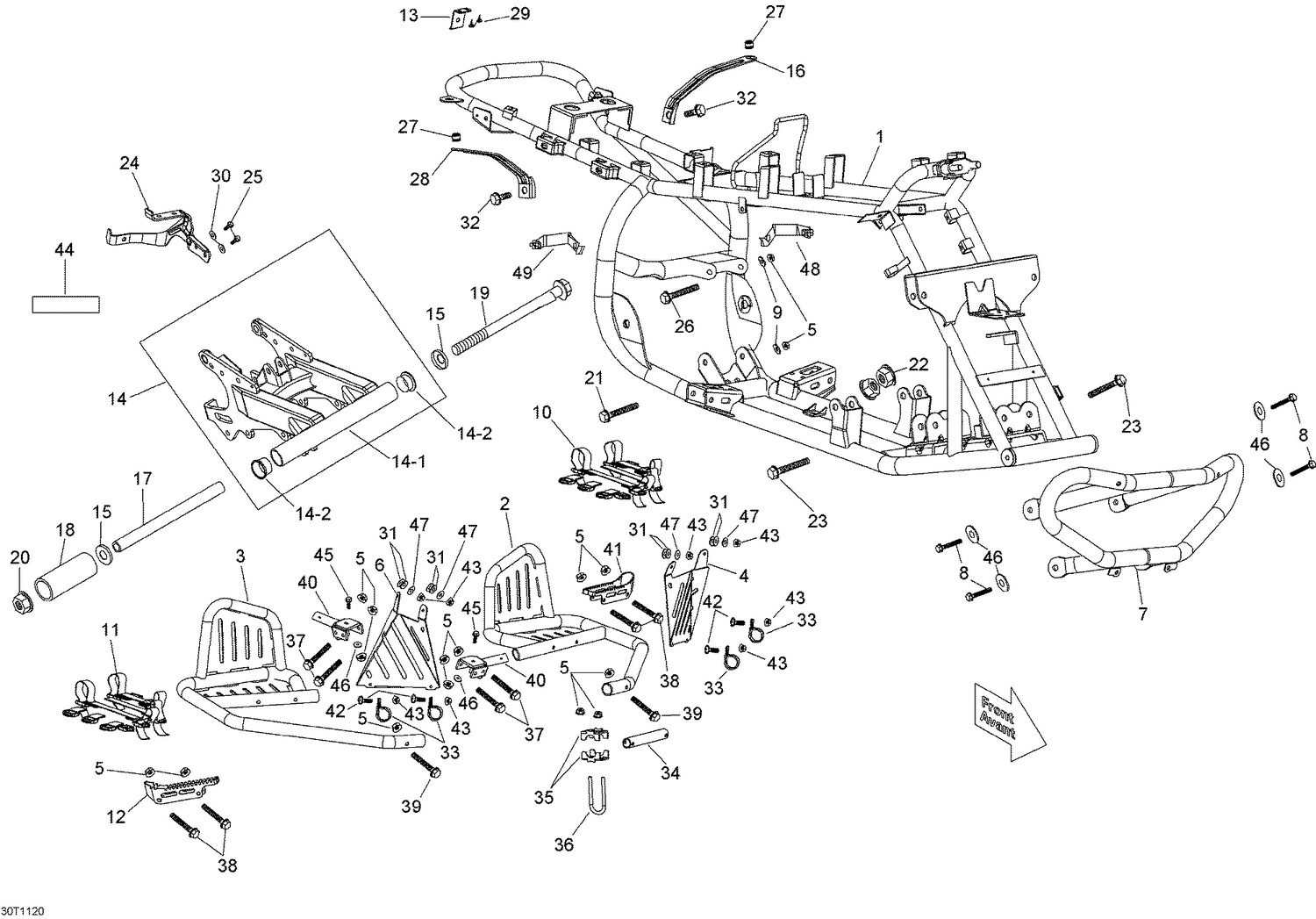

09- Frame
Parts (48)
| Ref | Part Number | Description |
|---|---|---|
| 1 | V50100DGF06HLL | FRAME COMP - Call your local BRP dealership This part replaces V50100DGF05HLL. |
| 2 | V50099DGF10HLL | LH Bar |
| 3 | V50107DGF10HLL | DH Bar |
| 4 | V50108DGF04HLL | LH Foot Protector |
| 5 | 232581414 | Hex. Elastic Stop Nut M8 |
| 6 | V50109DGF03HLL | RH Foot Protector |
| 7 | V50270DGF07H | Front Bumper This part replaces V50270DGF06H. |
| 8 | V9600008014 | Hex. Flange Screw |
| 9 | 234181601 | Lock Washer 8 mm, Stainless |
| 10 | V70001DGF10HLL | LH Net |
| 11 | V70002DGF10HLL | RH Net |
| 12 | V50112DGF04HLL | Footrest |
| 13 | V50266DGF020 | Reflector Bracket |
| 14 | V52370DGF16H | Swing Arm |
| 15 | V11400MAA000 | Swing Arm Seal Cover |
| 16 | V50260DGF050BK | LH Upper Fixed Plate |
| 17 | V44170MAA000 | Swing Arm Spacer |
| 18 | V53436MAA020LL | Rubber Sleeve This part replaces V53436MAA020. |
| 19 | V9600014290010LL | Hex. Flange Bolt |
| 20 | 232571414 | NUT-STOP ELASTIC DIN.985 - Call your local BRP dealership |
| 21 | V9600008100 | Hex. Flange Screw |
| 22 | 232501416 | Elastic Flange Nut M10 This part replaces A9035010000. |
| 23 | 207605544 | Hex. Flange Screw M10 X 55 |
| 24 | V50268DGF040 | Chain Cover Braket |
| 25 | 207661244 | Hex. Flange Screw M6 X 12 |
| 26 | V9600108125 | Hex. Flange Screw |
| 27 | V85278DGF020LL | Rubber Cushion |
| 28 | V50261DGF050BK | RH Upper Fixed Plate |
| 29 | V9309304012LL | Tapping Screw |
| 30 | 234161601 | Lock Washer Helical M6 |
| 31 | V15235DGF030 | Rubber Cushion |
| 32 | 207681244 | Hex. Flange Screw |
| 33 | V50110DGF05HLL | Clip |
| 34 | V50103DGF01H | Connector |
| 35 | V50106DGF02H | Clip |
| 36 | V50105DGF02H | U-Bolt |
| 37 | V9600008068 | Hex. Flange Bolt M8 X 68 |
| 38 | 207684544 | Hex. Flange Screw M8 X 45 |
| 39 | 207684044 | Hex. Flange Screw M8 X 40 |
| 40 | V50118DGF05H | Support |
| 41 | V50127DGF02HLL | Footrest |
| 42 | V930000601501LL | Round Head Screw |
| 43 | 232561414 | Elastic Stop Nut M6 |
| 44 | V87606DGF00HLL | Drive Chain Label |
| 45 | 207682044 | Hex. Flange Screw M8 X 20 |
| 46 | V941010816015LL | Washer |
| 47 | V94101062201001 | WASHER - Call your local BRP dealership This part replaces V94101062201001LL. |
| 48 | V50267DGF01H | LH Support Fender |
