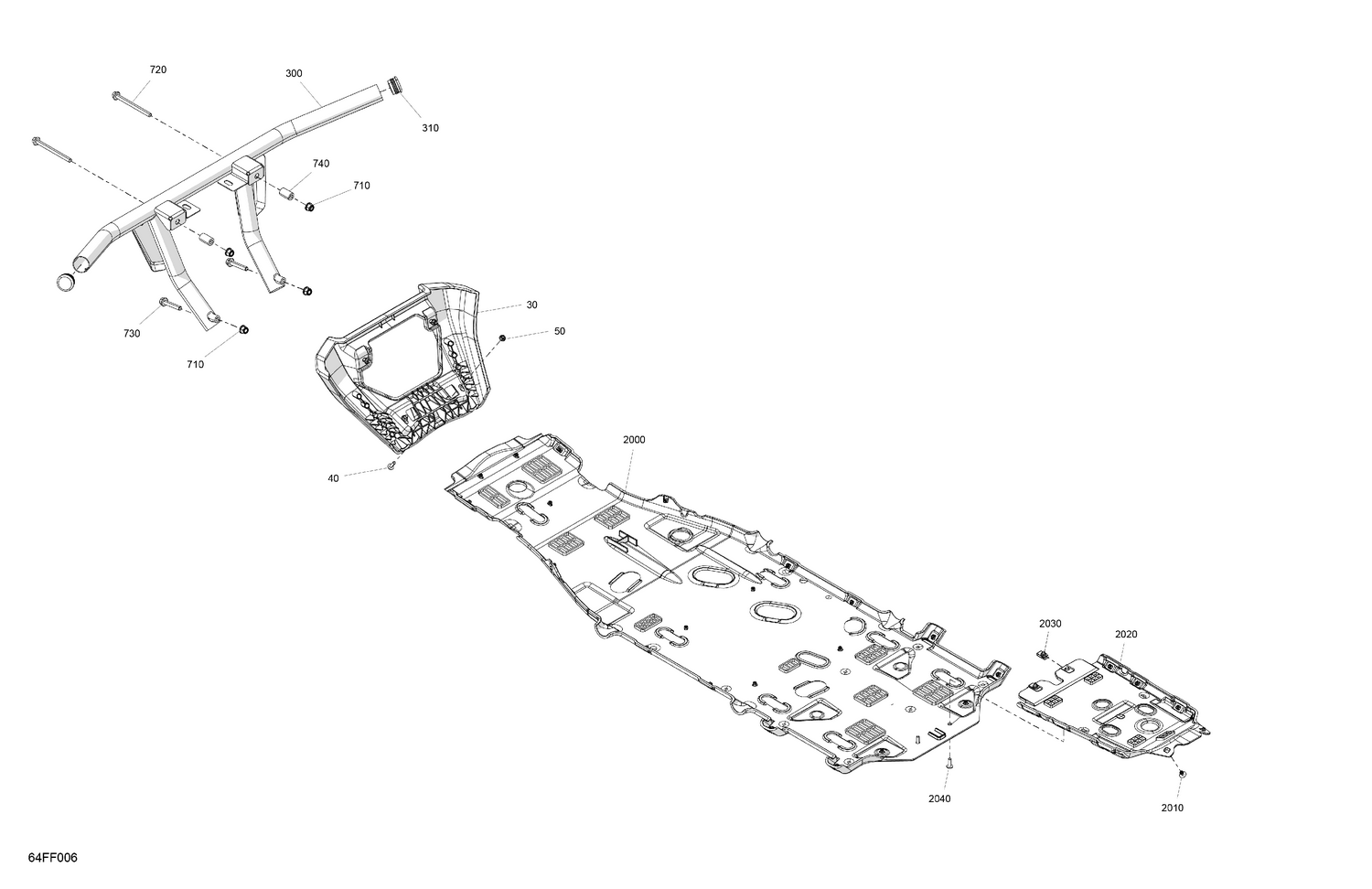

07- Body - Skid Plate and Bumper
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 30 | 705014900 | Front Skid Plate |
| 40 | 250001257 | Screw Torx M6 X 20 |
| 50 | 233161414 | Hex. Flange Nut M6 |
| 300 | 705016742 | Deep Black, Front Bumper |
| 710 | 233281416 | Hex. Elastic Flange Nut M8 |
| 720 | 207689534 | Hex. Flange Screw M8 X 95 |
| 730 | 250001028 | Hex. Flange Screw M6 X 45 |
| 740 | 705210807 | Spacer |
| 2000 | 705018716 | Central Skid Plate Long |
| 2010 | 293150292 | Black, Pop Rivet 3/16 X ,550 |
| 2020 | 705014893 | Lower Rear Skid Plate |
| 2030 | 250100198 | Panel Nut M6 X 1.0 |
| 2040 | 250001257 | Screw Torx M6 X 20 |
