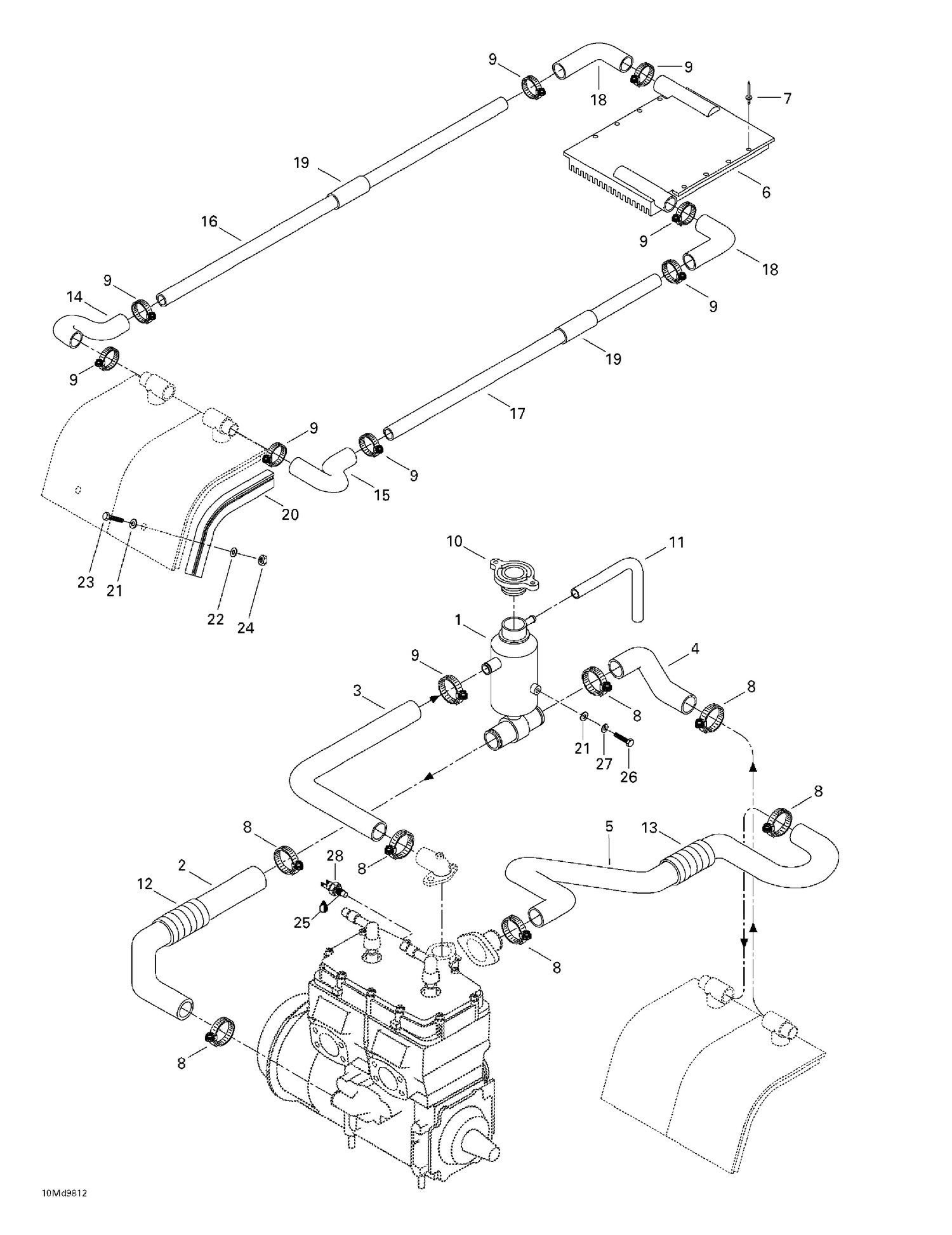

01- Cooling System
Parts (27)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 572094400 | Coolant Tank |
| 2 | 415120600 | Engine Inlet Hose |
| 3 | 415066700 | Engine Outlet Hose |
| 4 | 415066800 | Radiator Outlet Hose |
| 5 | 415066900 | Radiator Inlet Hose |
| 6 | 517291800 | Rear Radiator |
| 7 | 390402200 | Pop Rivet 3/16" |
| 8 | 408800400 | TRIDON GEAR CLAMP - Call your local BRP dealership |
| 9 | 293650173 | Tridon Gear Clamp This part replaces 293650066. |
| 10 | 509000187 | Pressure Cap This part replaces 414684700. |
| 11 | 219704410 | Polyurethane Hose 10000Mm Long |
| 12 | 219704413 | Was 415084700 Protective Shield |
| 13 | 219704402 | Tubing 25 MM 1000MM Long |
| 14 | 415067000 | RH Hose |
| 15 | 415067100 | LH Hose |
| 16 | 517292100 | RH Tube |
| 17 | 517292101 | LH Tube |
| 18 | 415067200 | Hose |
| 19 | 415077400 | Hose |
| 20 | 415067300 | Radiator Protector |
| 21 | 224061121 | Flat Washer |
| 22 | 234061410 | Flat Washer 6 mm This part replaces 224061151. |
| 23 | 207161244 | HEX. SCREW M6 X 12 - Call your local BRP dealership This part replaces 222061265. |
| 24 | 232561434 | Elastic Stop Nut M6 This part replaces 228561045. |
| 25 | 219704455 | Was 293800018 Loctite 592, 50 ml |
| 26 | 207161044 | HEX. SCREW M6 X 10 - Call your local BRP dealership This part replaces 222061065. |
| 27 | 234161471 | Lock Washer M6, Black This part replaces 224761110. |
