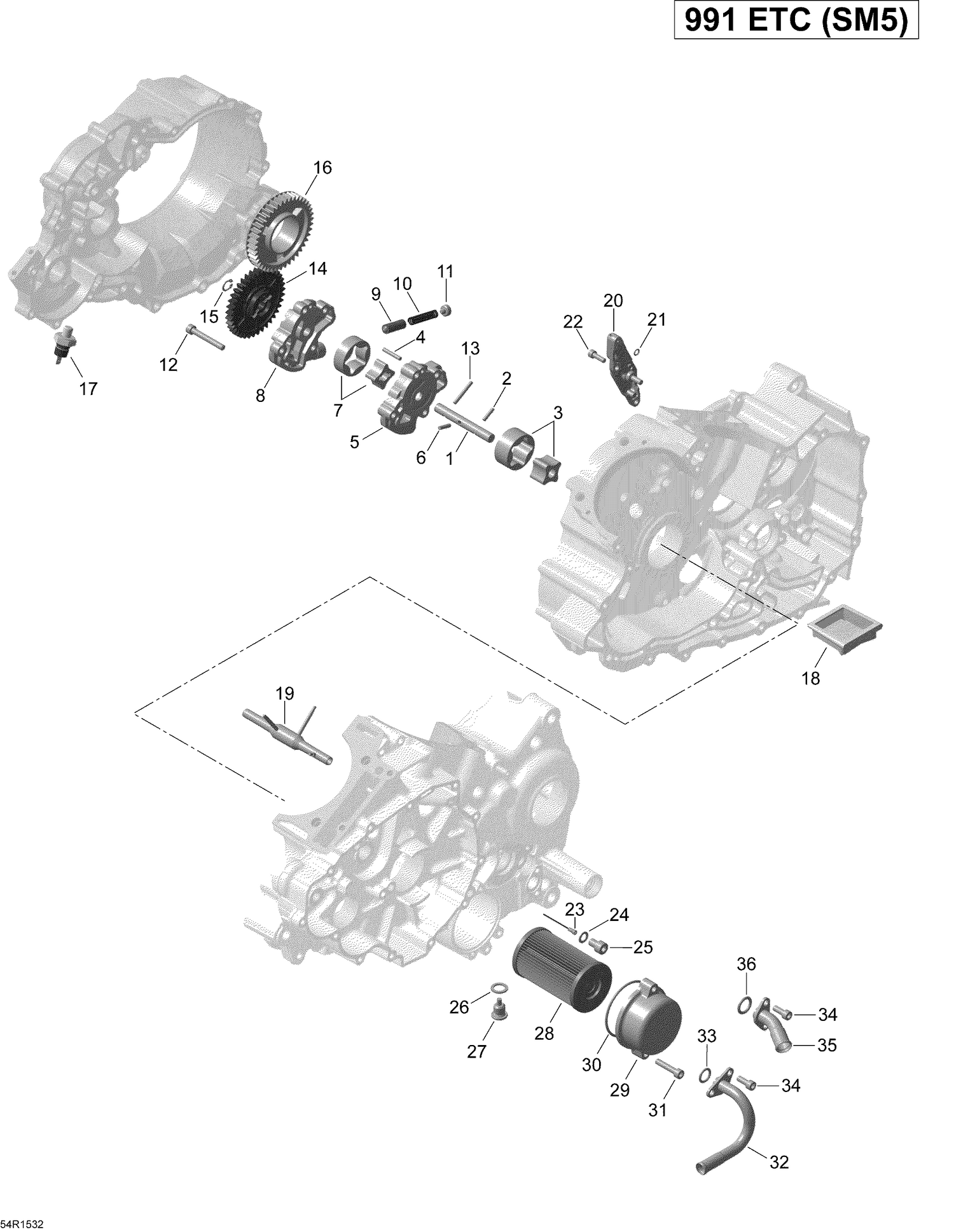

01- Engine Lubrication _54R1532
Parts (34)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 420220425 | Oil Pump Shaft |
| 2 | 420232731 | Needle Pin |
| 3 | 420256681 | Oil Pump Rotor, Suction |
| 4 | 420232971 | NEEDLE PIN - Call your local BRP dealership |
| 5 | 420211625 | Oil Pump Housing |
| 6 | 420232731 | Needle Pin |
| 7 | 420256671 | Oil Pump Rotor, Pressure |
| 9 | 420256510 | Pressure Regulating Piston |
| 10 | 420239449 | Spring |
| 11 | 420241651 | SCREW - Call your local BRP dealership |
| 12 | 205064544 | SOCKET HEAD SCREW M6 X 45 - Call your local BRP dealership |
| 13 | 420232431 | Needle Pin |
| 14 | 420634488 | OIL PUMP GEAR, 37 TEETH - Call your local BRP dealership |
| 15 | 504152282 | Circlip |
| 16 | 420634478 | Oil Gear Pump, 42 Teeth |
| 17 | 420256912 | Oil Pressure Switch |
| 18 | 420256498 | Oil Sieve This part replaces 420256497. |
| 19 | 420656232 | Oil Tube |
| 20 | 420656595 | OIL DUCT COVER - Call your local BRP dealership |
| 21 | 420950420 | O-Ring |
| 22 | 420840514 | Allen Screw M5 x 16 This part replaces 420840511. |
| 23 | 420456250 | OIL NOZZLE - Call your local BRP dealership |
| 24 | 420950141 | Sealing Ring |
| 25 | 420841522 | SOCKET HEAD SCREW M8 X 12 - Call your local BRP dealership This part replaces 420841521. |
| 26 | 420250640 | Copper Washer |
| 27 | 420241780 | Magnetic Drain Plug M12 X 1.5 This part replaces 420241782. |
| 28 | 420956747 | Oil Filter |
| 29 | 420610233 | Oil Cover Filter |
| 30 | 420230923 | O-Ring This part replaces 420650500. |
| 31 | 205063044 | Socket Head Screw M6 X 30 |
| 32 | 420656540 | BENT OUTLET - Call your local BRP dealership |
| 33 | 420950815 | O-Ring |
| 34 | 420440164 | Torx Flange Screw M6 X 16 |
| 35 | 420656556 | OIL INLET ELBOW - Call your local BRP dealership |
