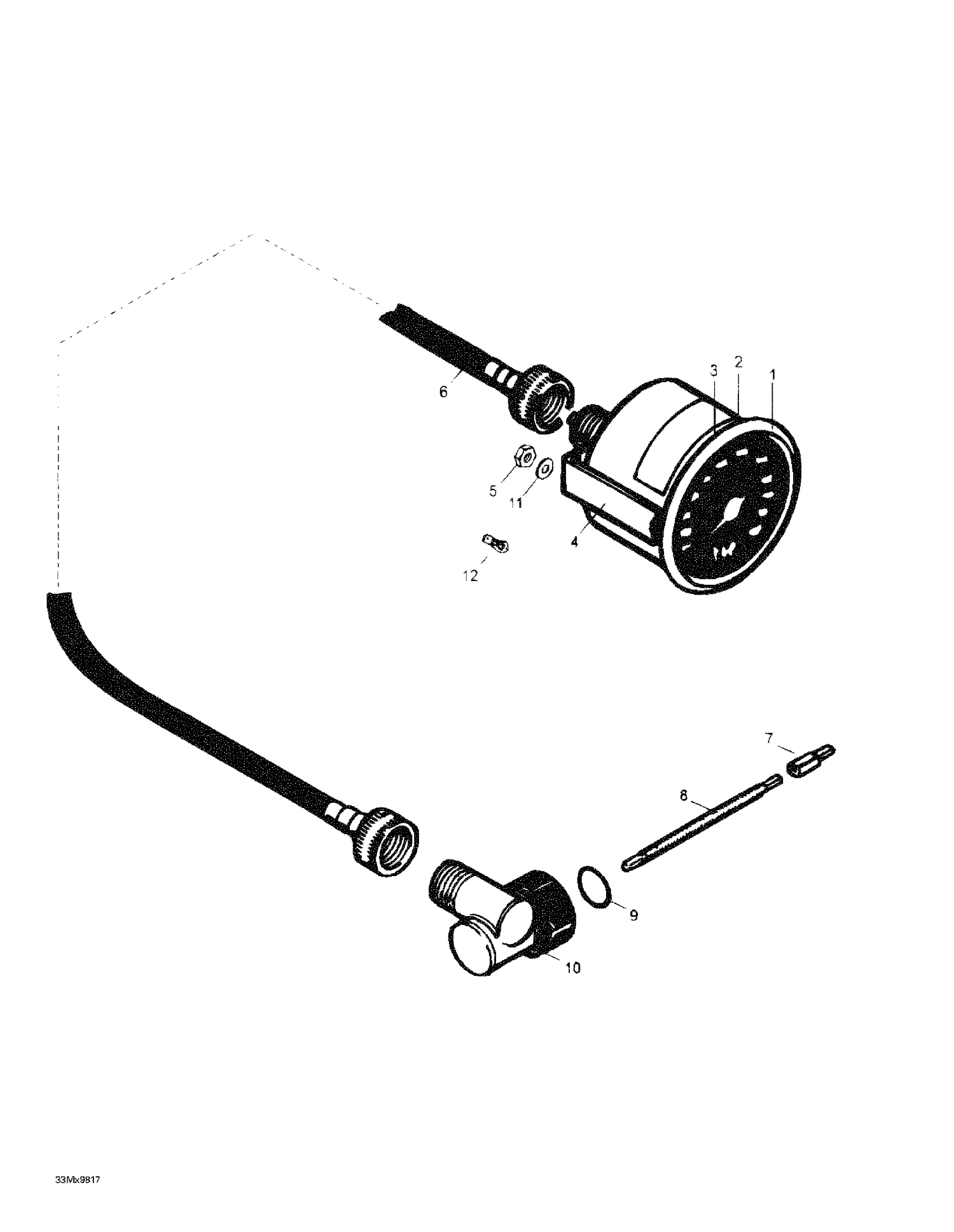

10- Speedometer Arrangement
Parts (9)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 415097000 | Speedometer (KMH) |
| 2 | 517258500 | Washer |
| 3 | 414807100 | O-Ring |
| 4 | 414806500 | Case Holder |
| 5 | 232551414 | Elastic Stop Nut M5 This part replaces 228551045. |
| 7 | 542013 | Speed Drive Insert This part replaces M542013. |
| 9 | M31020 | Washer |
| 10 | 35021 | Gear Unit 1:1.4 Left Op-0127-002-N0-Gu This part replaces M35021. |
| 11 | 234051410 | Flat Washer M5 This part replaces 224051111. |
