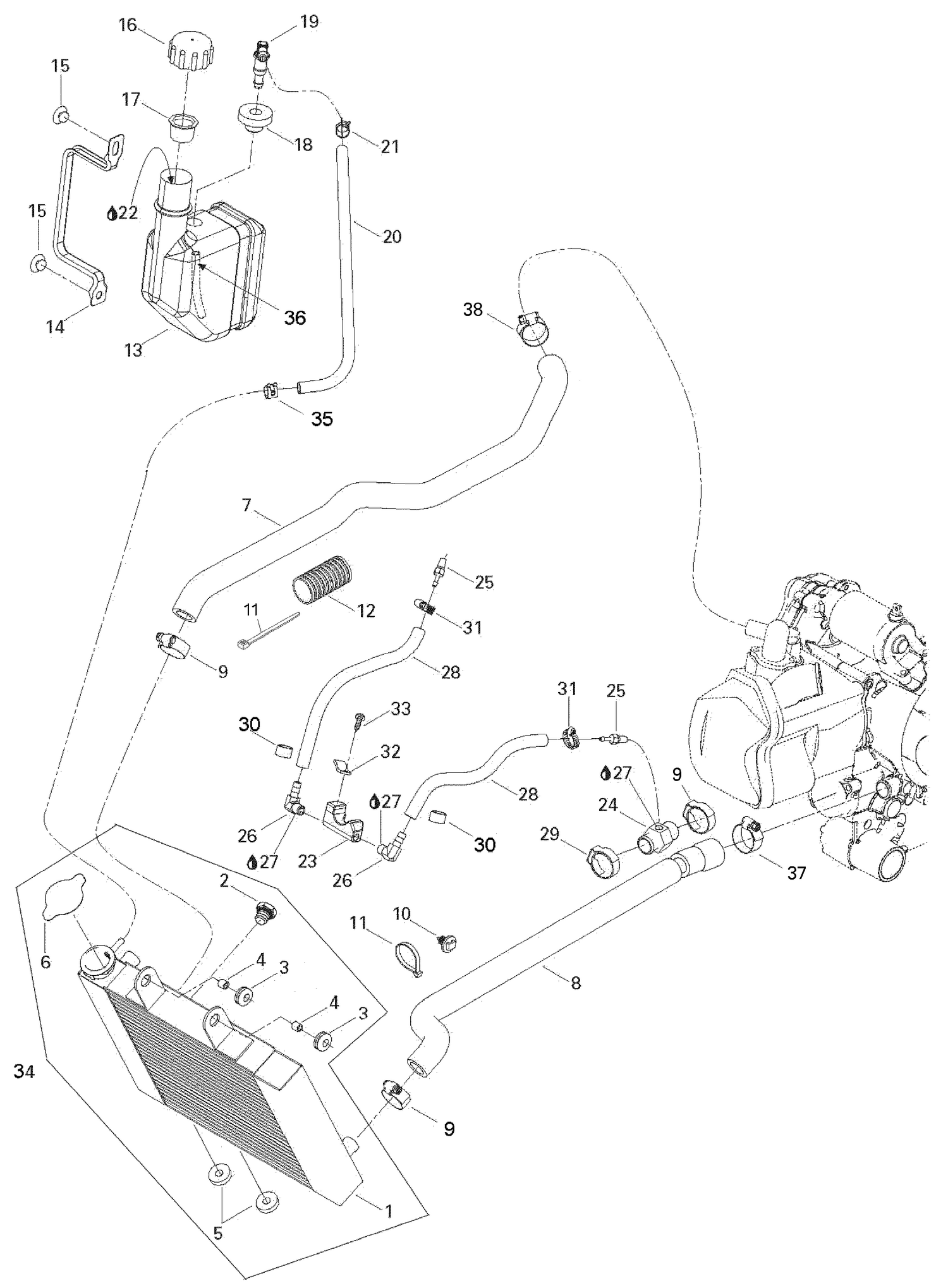

01- Cooling System
Parts (37)
| Ref | Part Number | Description |
|---|---|---|
| 1 | A19100179000 | Radiator |
| 2 | 250500006 | PLUG - Call your local BRP dealership |
| 3 | 705005156 | Oval Washer |
| 4 | 293900105 | Bushing This part replaces 293900045. |
| 5 | 709200285 | Grommet This part replaces 570135100. |
| 6 | A19110179000 | PRESSURE CAP - Call your local BRP dealership |
| 7 | 709200066 | INLET RADIATOR HOSE - Call your local BRP dealership |
| 8 | 709200067 | OUTLET RADIATOR HOSE - Call your local BRP dealership |
| 9 | 293650051 | Tridon Gear Clamp |
| 10 | 293730040 | Mount Dart This part replaces 293730018. |
| 11 | 414115200 | Tie-Rap 180 mm |
| 12 | 709200031 | PROTECTION SHIELD - Call your local BRP dealership |
| 13 | A19200179000 | COOLANT TANK - Call your local BRP dealership |
| 14 | 709200080 | TANK ANCHOR - Call your local BRP dealership |
| 15 | 293150104 | Pop Rivet 3/16" This part replaces 390409600. |
| 16 | A19210179000 | TANK CAP - Call your local BRP dealership |
| 17 | 709200205 | PROTECTION CAP - Call your local BRP dealership This part replaces 709200034. |
| 18 | 709200285 | Grommet This part replaces 570135100. |
| 19 | 414580600 | Elbow Male Connector |
| 20 | 219704414 | Was 415110000 Polyurethane Hose 5.2 mm |
| 21 | 414554800 | Spring Clamp |
| 22 | Not | Available As Spare Part - Antifreeze |
| 23 | 709200096 | Block Heater |
| 24 | 709200097 | ADAPTER - Call your local BRP dealership |
| 25 | 293710037 | Male Connector |
| 26 | 293700016 | Elbow Fitting |
| 27 | 219704454 | Was 293800013 Loctite 56765 |
| 28 | 219704549 | Hose This part replaces 219704439. |
| 29 | 293650141 | Oetiker Clamp |
| 30 | 293650125 | Oetiker Clamp |
| 31 | 293650170 | Tridon Gear Clamp |
| 32 | 709200116 | Lock |
| 33 | 208640860 | PHILLIPS SCREW M4 X 8 - Call your local BRP dealership |
| 34 | Not | Available As Spare Part - Radiator Ass'y |
| 35 | 414554800 | Spring Clamp |
| 36 | 219704414 | Was 415110000 Polyurethane Hose 5.2 mm |
| 37 | A9451430000 | Gemi Clamp |
