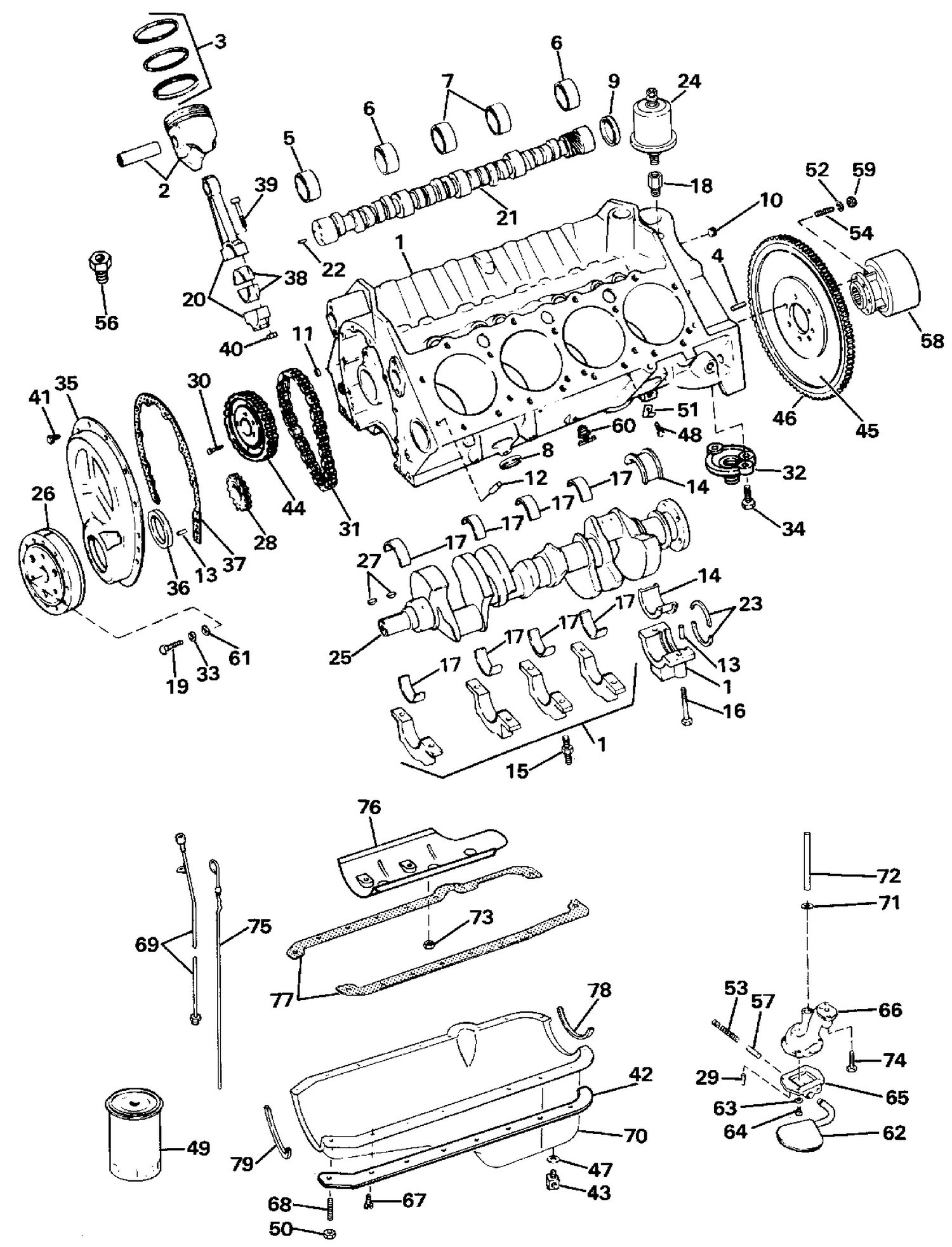

| Ref | Part Number | Description |
|---|
| 1 |
14019867 |
CRANKCASE ASSY |
| 1 |
14024311 |
CRANKCASE ASSY |
| 2 |
0364702 |
PISTON & ASSY, Std |
| 2 |
0364703 |
PISTON & PIN ASSY, .001" O.S. |
| 2 |
0364704 |
PISTON & PIN ASSY, .030" O.S. |
| 2 |
3911020 |
PISTON & PIN ASSY, Std |
| 2 |
3911021 |
PISTON & PIN AASSY, .020" o.s. |
| 2 |
3911023 |
PISTON & ASSY, .030" o.s. |
| 3 |
0328506 |
PISTON RING SET |
| 3 |
0328516 |
PISTON RING SET 020: O.S |
| 3 |
0370409 |
PISTON RIGN SET, Std |
| 3 |
0370419 |
PISTON RING SET, .020 0s |
| 4 |
1453658 |
DOWEL PIN |
| 5 |
0474005 |
BEARING, Camshaft #1 |
| 6 |
0474006 |
BEARING, Camshaft, #2, #4 |
| 7 |
0474007 |
BEARING, Camshaft, #3 |
| 8 |
0311376 |
CORE PLUG, Side |
| 9 |
3997752 |
PLUG, Camshaft bearing, rear |
| 10 |
0444776 |
PLUG, Oil gallery, |
| 11 |
3701638 |
PLUG, Oil galler, fron, 1/2" dia cup shaped |
| 12 |
0585927 |
DOWEL PIN |
| 13 |
3836903 |
PILOT PIN, Cam shaft gear |
| 14 |
3912030 |
BEARING ASSY - REAR, Std |
| 14 |
3912032 |
BEARING ASSY - REAR, .001" U.S. |
| 14 |
3912033 |
BEARING ASSY - REAR, .002" U.S. |
| 14 |
3912035 |
BEARING ASSY - REAR, .010" U.S. |
| 14 |
3912036 |
BEARING ASSY - REAR, .020" U.S. |
| 17 |
0462661 |
BEARING ASSY, Upper #1, std |
| 17 |
0462664 |
BEARING ASSY, Lower #1, std |
| 17 |
0462673 |
BEARING ASSY, Upper #1, .001" U.S. |
| 17 |
0462674 |
BEARING ASSY, Upper #1, .002" U.S. |
| 17 |
0462677 |
BEARING ASSY, Lower #1, .001" U.S. |
| 17 |
0462678 |
BEARING ASSY, Lower #1, .002" U.S. |
| 17 |
0464047 |
BEARING ASSY, #1, .010" U.S. |
| 17 |
0464048 |
BEARING ASSY, #1, .020" U.S. |
| 17 |
3912038 |
BEARING ASSY, #2 #3, #4, std. |
| 17 |
3912039 |
BEARING ASSY, #2, #3, #4, .001" u.s |
| 17 |
3912040 |
BEARAING ASSY.-FRONT & INTERMEDIATE,.002"us |
| 17 |
3912041 |
BEARING ASSY -EXC REAR, .010'' u.s. |
| 17 |
3912042 |
BEARING ASSY 0EXC REAR, .020'' u.s. |
| 18 |
3855776 |
ADAPTER, Oil sender This part replaces 0910232. |
| 19 |
9428643 |
BOLT |
| 20 |
14031310 |
CONNECTING ROD ASSY |
| 21 |
0340284 |
CAMSHAFT ASSY |
| 22 |
3836903 |
PILOT PIN, Cam shaft gear |
| 23 |
0473424 |
OIL SEAL SET, Crankshaft rear baering |
| 24 |
3853800 |
OIL PRESSURE SENDER This part replaces 0982650. |
| 25 |
0361982 |
CRANKSHAFT |
| 25 |
3932444 |
CRANKSHAFT |
| 26 |
6272221 |
DAMPER ASSY |
| 27 |
0106751 |
KEY, Wdf, 3/16" x 3/4" |
| 28 |
3735413 |
SPROCKET, Crankshaft |
| 28 |
3909805 |
SPROCKET, Crankshaft |
| 29 |
0103677 |
PIN, Pressuer regulator |
| 30 |
0443899 |
BOLT, Camshaft sprocket |
| 31 |
3735411 |
CHAIN, Camshaft |
| 32 |
3952301 |
ADAPTER & VALVE ASSEMBLY |
| 33 |
0114607 |
LOCKWASHER |
| 34 |
3951644 |
BOLT, Adapter |
| 35 |
14050642 |
COVER, C'case front end |
| 36 |
3980267 |
SEAL |
| 37 |
3799620 |
GASKET, Front cover |
| 38 |
3910555 |
BEARING, Connecting rod, std. |
| 38 |
3910556 |
BEARING, Rod, .001" u.s. |
| 38 |
3910557 |
BEARING, Rod .002" u.s. |
| 38 |
3910558 |
BEARING, Rod, .010" u.s. |
| 38 |
3910559 |
BEARING, Rod, .020" u.s. |
| 39 |
0461372 |
BOLT, Connecting rod |
| 40 |
0225854 |
NUT, Conn rod, 11/32-34 |
| 41 |
5950740 |
Gasket This part replaces 0460578. |
| 42 |
14082340 |
REINFORCEMENT, Stbd |
| 42 |
14082341 |
REINFORCEMENT, Port |
| 43 |
0908484 |
ELBOW OIL DRAIN PAN |
| 44 |
3735412 |
SPROCKET, Camshaft |
| 45 |
0366860 |
FLYWHEEL |
| 46 |
3991407 |
GEAR, Flywheel |
| 48 |
0313117 |
SCR,Clamp,eng cable |
| 49 |
0502901 |
OIL FILTER This part replaces 0173233. |
| 50 |
9439493 |
NUT, Oil pan |
| 51 |
0330151 |
CLAMP, Harness to oil tank boss This part replaces 0309322. |
| 52 |
0304671 |
LOCKWASHER, Coupler to flywheel |
| 53 |
3814903 |
SPRING, Regulator valve |
| 54 |
0911927 |
STUD, Coupling |
| 55 |
0306519 |
SCR,Coil clamp |
| 56 |
0909641 |
ADAPTER, Water drain stbd |
| 57 |
3702366 |
VALVE, Pressure regulator |
| 58 |
3853962 |
COUPLING This part replaces 0983902. |
| 59 |
3853273 |
LOCKNUT, Coupler This part replaces 0912383. |
| 60 |
0379957 |
PETCHOCK ASSY, Water drain |
| 61 |
3739422 |
WASHER |
| 62 |
3764113 |
PICK-UP SCREEN |
| 63 |
9421423 |
LOCKWASHER, Switch attach |
| 64 |
0133043 |
BOLT, Cover to pump |
| 65 |
3836980 |
COVER, Pump |
| 66 |
3764547 |
OIL PUMP ASSEMBLY |
| 67 |
5950740 |
Gasket This part replaces 0460578. |
| 68 |
14080363 |
STUD, Oil pan |
| 69 |
0984569 |
TUBE ASSY., Oil drain This part replaces 0981397. |
| 70 |
0984477 |
OIL PAN |
| 71 |
3764554 |
RETAINER, Distibutor to oil pump |
| 72 |
3998287 |
SHAFT, Distributor to oil pump |
| 73 |
9422297 |
NUT, 3/8-16 |
| 74 |
3892678 |
BOLT, Hex, oil pump to block |
| 75 |
3865665 |
GAUGE, Oil level |
| 76 |
3927136 |
BAFFLE, Oil pan |
| 77 |
14079398 |
GASKET SET, Oil pan |
| 78 |
0458625 |
SEAL, Rear |
