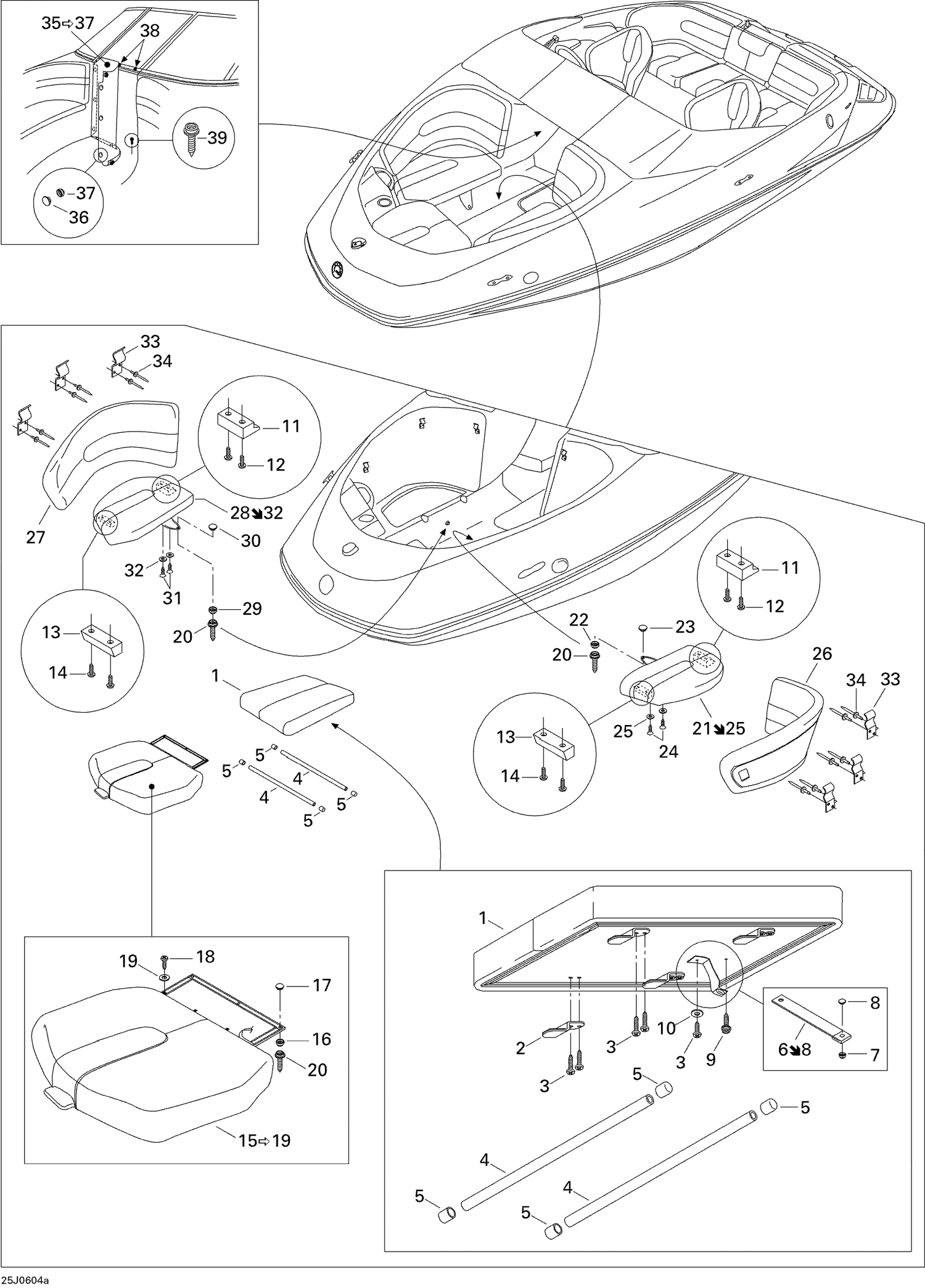

| Ref | Part Number | Description |
|---|
| 1 |
204613121 |
Seat Ass'y, Bow (Grey) |
| 2 |
204613161 |
BRACKET - Call your local BRP dealership |
| 3 |
204100073 |
SCREW-PAN HD.#10 X 5/8 SS - Call your local BRP dealership |
| 4 |
204613164 |
TUBE, STAINLESS - Call your local BRP dealership |
| 5 |
204613165 |
TUBE CAP - Call your local BRP dealership |
| 7 |
204000083 |
SNAP BASE - Call your local BRP dealership |
| 8 |
204611609 |
SNAP COVER - Call your local BRP dealership |
| 9 |
202000159 |
SCREW-STUD TAPP. 3/8 SS - Call your local BRP dealership |
| 10 |
204100059 |
FLAT WASHER #10 - Call your local BRP dealership |
| 11 |
204611940 |
SEAT LATCH - Call your local BRP dealership |
| 12 |
204100039 |
SCREW 1/4?-20 X 2? - Call your local BRP dealership |
| 13 |
204611805 |
LATCH - Call your local BRP dealership |
| 14 |
209642560 |
PHILLIPS SCREW M4.2 X 25 - Call your local BRP dealership |
| 16 |
204000083 |
SNAP BASE - Call your local BRP dealership |
| 17 |
204611609 |
SNAP COVER - Call your local BRP dealership |
| 18 |
204100054 |
SCREW 8 X 3/4? - Call your local BRP dealership |
| 19 |
211200019 |
FLAT WASHER - Call your local BRP dealership |
| 20 |
202000159 |
SCREW-STUD TAPP. 3/8 SS - Call your local BRP dealership |
| 22 |
204000083 |
SNAP BASE - Call your local BRP dealership |
| 23 |
204611609 |
SNAP COVER - Call your local BRP dealership |
| 24 |
204100054 |
SCREW 8 X 3/4? - Call your local BRP dealership |
| 25 |
211200019 |
FLAT WASHER - Call your local BRP dealership |
| 29 |
204000083 |
SNAP BASE - Call your local BRP dealership |
| 30 |
204611609 |
SNAP COVER - Call your local BRP dealership |
| 31 |
204100054 |
SCREW 8 X 3/4? - Call your local BRP dealership |
| 32 |
211200019 |
FLAT WASHER - Call your local BRP dealership |
| 33 |
204613998 |
SEAT SUPPORT - Call your local BRP dealership This part replaces 204610288. |
| 34 |
293150043 |
Pop Rivet 3/16" |
| 36 |
204000085 |
SNAP COVER - Call your local BRP dealership |
| 37 |
204000083 |
SNAP BASE - Call your local BRP dealership |
| 38 |
204613515 |
SNAP - Call your local BRP dealership |
