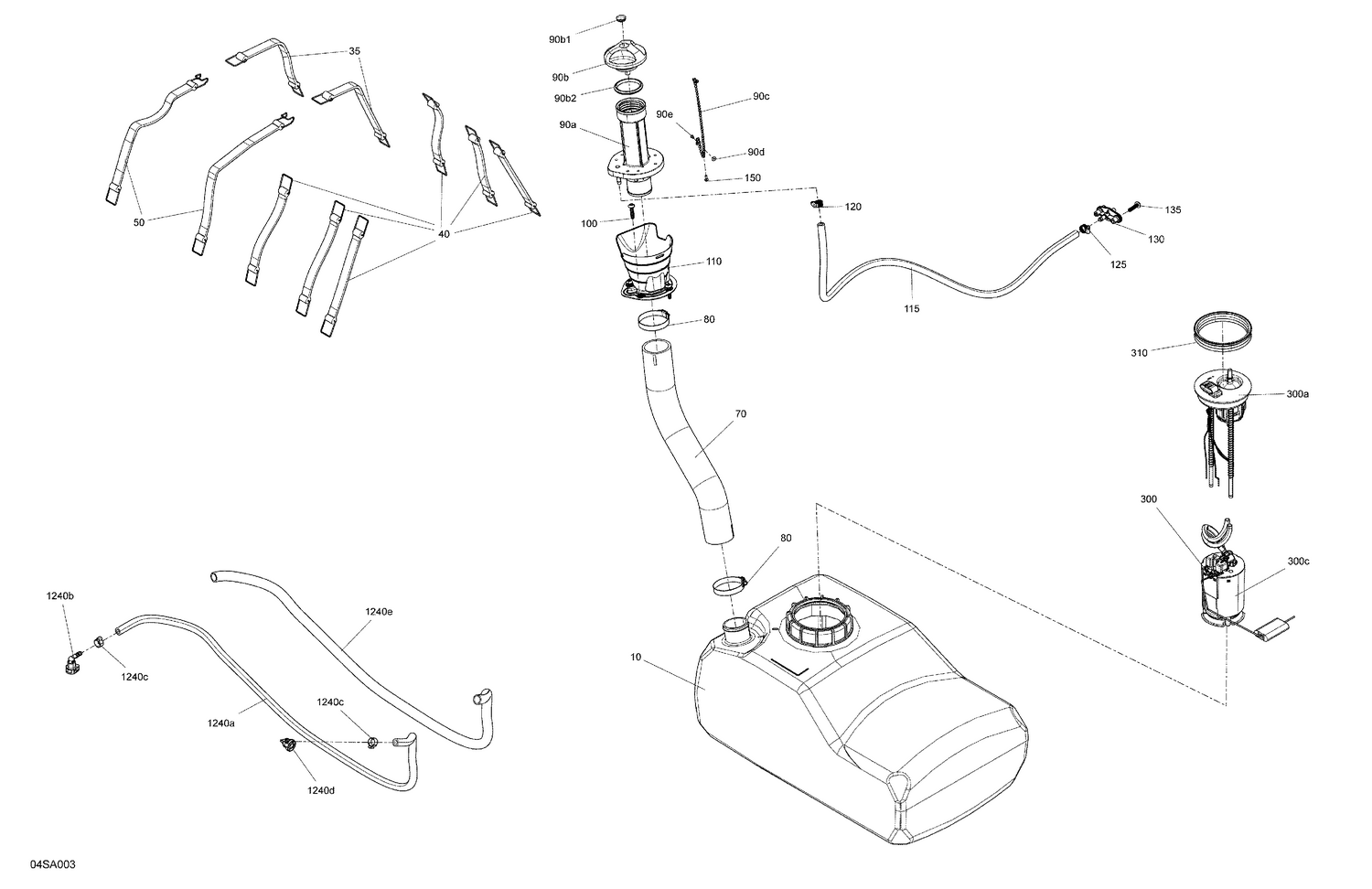

02- Engine - Fuel
Parts (27)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 275500962 | Fuel Tank |
| 35 | 293850112 | Holding Strap |
| 40 | 293850112 | Holding Strap |
| 50 | 293850134 | Holding Strap |
| 70 | 275501019 | Hose, Filler |
| 80 | 293650081 | Norma Clamp |
| 90a | 275501005 | Filler Neck |
| 90b1 | 293000034 | Black, Snap Cap |
| 90b2 | 293250417 | Gasket |
| 90c | 275500972 | Fuel Cap Chain |
| 90d | 234032600 | Flat Washer M3, Stainless |
| 90e | 390407900 | Pop Rivet 1/8" |
| 100 | 250001138 | Plastite Screw Torx Cone HD.M6.81X3 This part replaces 250000828. |
| 110 | 293250480 | Gas, Deflector |
| 115 | 219704359 | Hose I.D. 7.9Mm 3000Mm Long |
| 120 | 293650171 | Tridon Gear Clamp |
| 125 | 293650171 | Tridon Gear Clamp |
| 130 | 275501022 | Fitting Sub Ass'y |
| 135 | 250001138 | Plastite Screw Torx Cone HD.M6.81X3 This part replaces 250000828. |
| 150 | 241140060 | Screw K40 X 10 |
| 300a | 275500780 | Sensor Lever |
| 300c | 270600113 | Fuel Filter |
| 310 | 293250173 | Gasket |
| 1240a | 219704359 | Hose I.D. 7.9Mm 3000Mm Long |
| 1240b | 275500921 | Quick Disconnect |
| 1240c | 293650053 | Crimp Clamp |
| 1240d | 293710105 | Elbow Fitting 90° |
