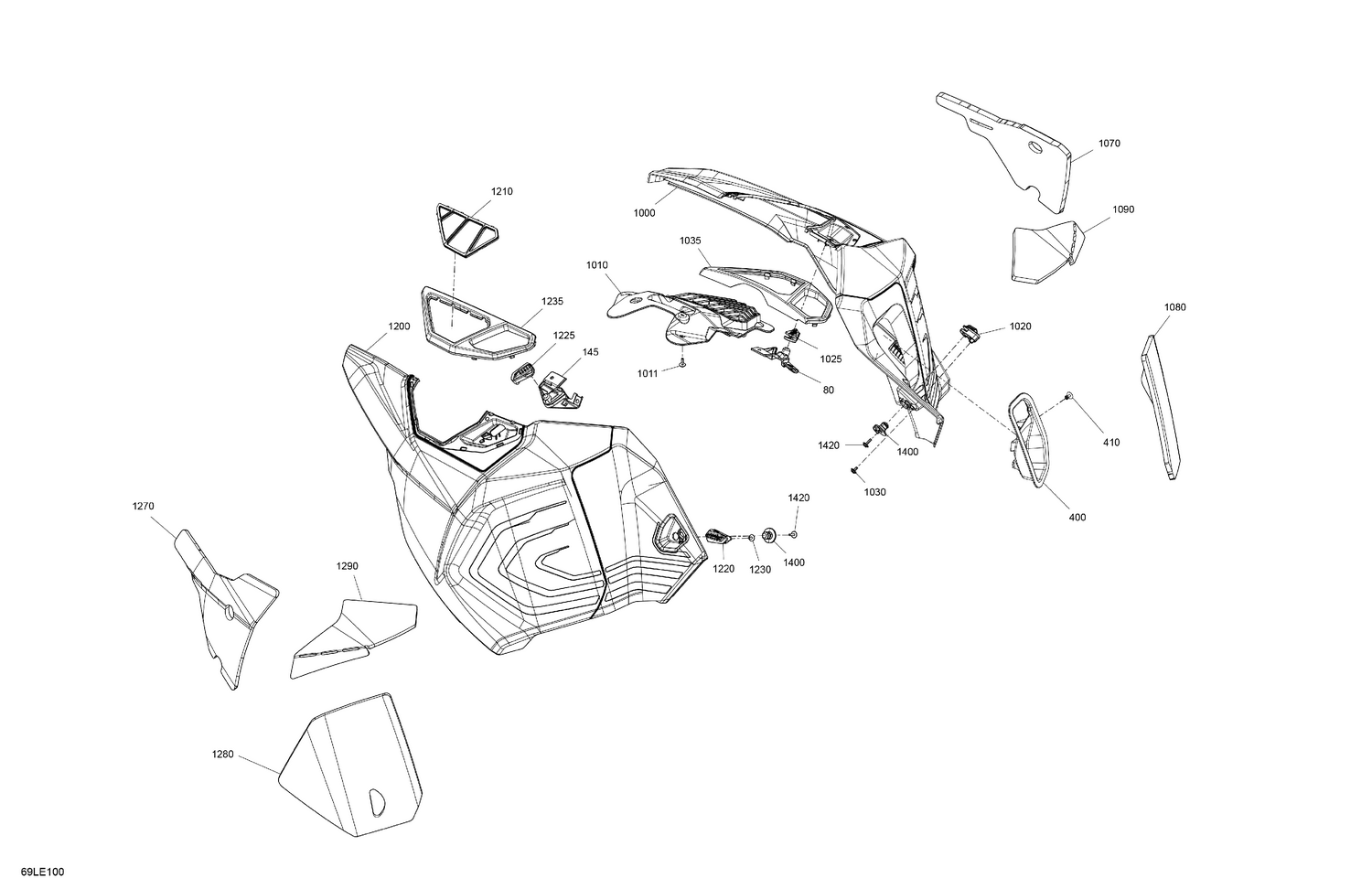

07- Body - Side Panels
Parts (24)
| Ref | Part Number | Description |
|---|---|---|
| 80 | 517306450 | RH Knob Part |
| 145 | 517306451 | LH Knob Part |
| 400 | 517306302 | Reverse Lever Trim |
| 410 | 293150292 | Black, Pop Rivet 3/16 X ,550 |
| 1000 | 517307024 | RH Side Panel With Opening And L Grille |
| 1010 | 517306706 | RH Grille |
| 1011 | 250000725 | Screw M4 X 16 |
| 1020 | 517305773 | RH Rear Latch |
| 1025 | 517305773 | RH Rear Latch |
| 1030 | 250000805 | Plastite Screw M4 X 10 |
| 1035 | 517306888 | Black, RH Trim 20",24"" |
| 1070 | 517308470 | RH Central Side Panel Foam |
| 1080 | 517308471 | RH Rear Side Panel Foam |
| 1090 | 517308473 | RH Upper Side Panel Foam |
| 1200 | 517307025 | LH Side Panel With Filter |
| 1210 | 517306832 | LH Air Intake Grip |
| 1220 | 517305774 | LH Rear Latch |
| 1225 | 517305774 | LH Rear Latch |
| 1230 | 250000805 | Plastite Screw M4 X 10 |
| 1235 | 517306889 | Black, LH Trim 20",24" |
| 1270 | 517306577 | LH Central Side Panel Foam |
| 1280 | 517306578 | LH Rear Side Panel Foam |
| 1290 | 517306579 | LH Upper Side Panel Foam |
| 1400 | 517305985 | Rear Stud |
