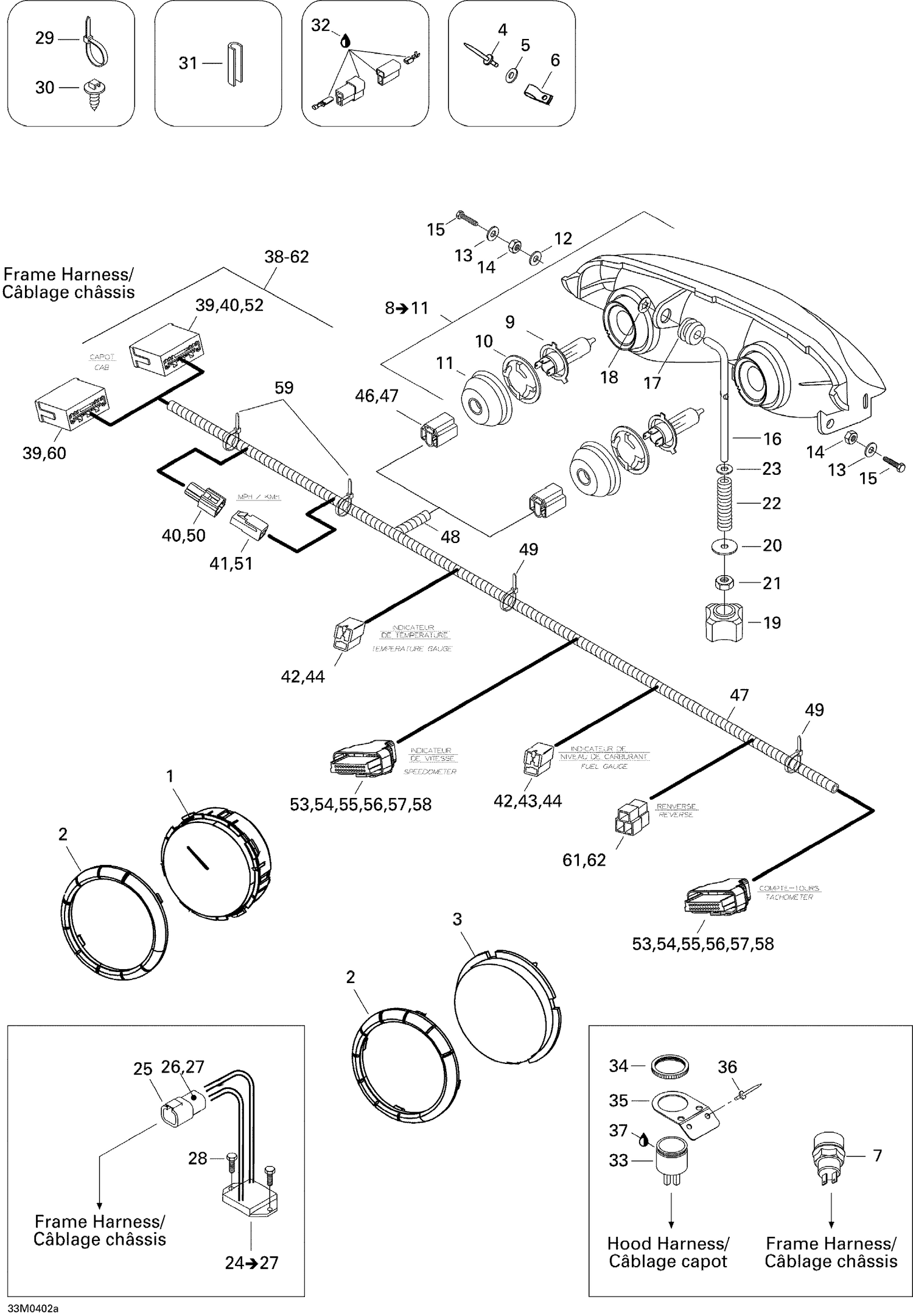

| Ref | Part Number | Description |
|---|
| 1 |
515175999 |
Speedometer |
| 2 |
515179005 |
Gauge Ring This part replaces 515175651. |
| 3 |
515175901 |
GAUGE HOLE COVER - Call your local BRP dealership |
| 4 |
390402200 |
Pop Rivet 3/16" |
| 5 |
517225900 |
Flat Washer |
| 6 |
415018200 |
CLIP - Call your local BRP dealership |
| 7 |
415130372 |
Push Button This part replaces 415101200. |
| 9 |
515176274 |
Halogen Bulb, 60/55 W, 12 V ( H4 ) This part replaces 410504401. |
| 10 |
515176385 |
BULB HOLDER - Call your local BRP dealership This part replaces 515175910. |
| 11 |
515175911 |
COVER - Call your local BRP dealership |
| 12 |
234001410 |
Flat Washer 10 mm |
| 13 |
234051410 |
Flat Washer M5 |
| 14 |
250100018 |
NUT M5 - Call your local BRP dealership |
| 15 |
207053544 |
Hex. Screw M5 X 35 |
| 16 |
517295800 |
ADJUSTER ROD - Call your local BRP dealership |
| 17 |
415100800 |
Grommet - Call your local BRP dealership |
| 18 |
732610072 |
Push Nut |
| 19 |
515175548 |
Handle - Call your local BRP dealership |
| 20 |
224060251 |
Washer |
| 21 |
232561414 |
Elastic Stop Nut M6 |
| 22 |
415100600 |
SPRING - Call your local BRP dealership |
| 23 |
234061410 |
Flat Washer 6 mm |
| 29 |
293750001 |
Tie Wrap 94 mm |
| 29 |
293750009 |
Tie-Rap 173 mm |
| 29 |
414115200 |
Tie-Rap 180 mm |
| 30 |
293730040 |
Mount Dart This part replaces 293730018. |
| 31 |
219704353 |
Was 271000110 Protection Trim |
| 32 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 33 |
515176035 |
HORN - Call your local BRP dealership |
| 34 |
414805101 |
PLASTIC NUT - Call your local BRP dealership |
| 35 |
515175688 |
PLATE - Call your local BRP dealership |
| 36 |
390402200 |
Pop Rivet 3/16" |
| 37 |
296000309 |
Silicone Sealant 51388, 300 ml |
| 39 |
515175232 |
Male Terminal |
| 40 |
515175273 |
MALE TERMINAL - Call your local BRP dealership |
| 41 |
515175282 |
Female Terminal |
| 42 |
561503100 |
FEMALE TERMINAL - Call your local BRP dealership This part replaces 409205300. |
| 43 |
561503100 |
FEMALE TERMINAL - Call your local BRP dealership This part replaces 409203300. |
| 44 |
409204300 |
Female Housing |
| 45 |
515175321 |
FEMALE TERMINAL - Call your local BRP dealership |
| 46 |
409202700 |
FEMALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership |
| 47 |
219704408 |
Tubing 16 Mm 1000Mm Long |
| 48 |
219704407 |
Tubing 10 MM 1000MM Long |
| 49 |
293750001 |
Tie Wrap 94 mm |
| 50 |
515175509 |
MALE TERMINAL HOUSING, 1 CIRCUIT - Call your local BRP dealership |
| 51 |
515175510 |
FEMALE TERMINAL HOUSING, 1 CIRCUIT - Call your local BRP dealership |
| 52 |
515175720 |
MALE TERMINAL HOUSING, 11 CIRCUITS - Call your local BRP dealership |
| 53 |
515175812 |
Plug |
| 54 |
515175801 |
Female Housing, 24 Circuits |
| 55 |
515175802 |
Retainer Block |
| 56 |
515175803 |
Wire Seal |
| 57 |
515175804 |
BLOCK - Call your local BRP dealership |
| 58 |
515175806 |
Female Terminal |
| 59 |
414115200 |
Tie-Rap 180 mm |
| 60 |
Not |
Available As Spare Part - Male Terminal Housing (10 Circuits) |
| 61 |
515176069 |
MALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership |
