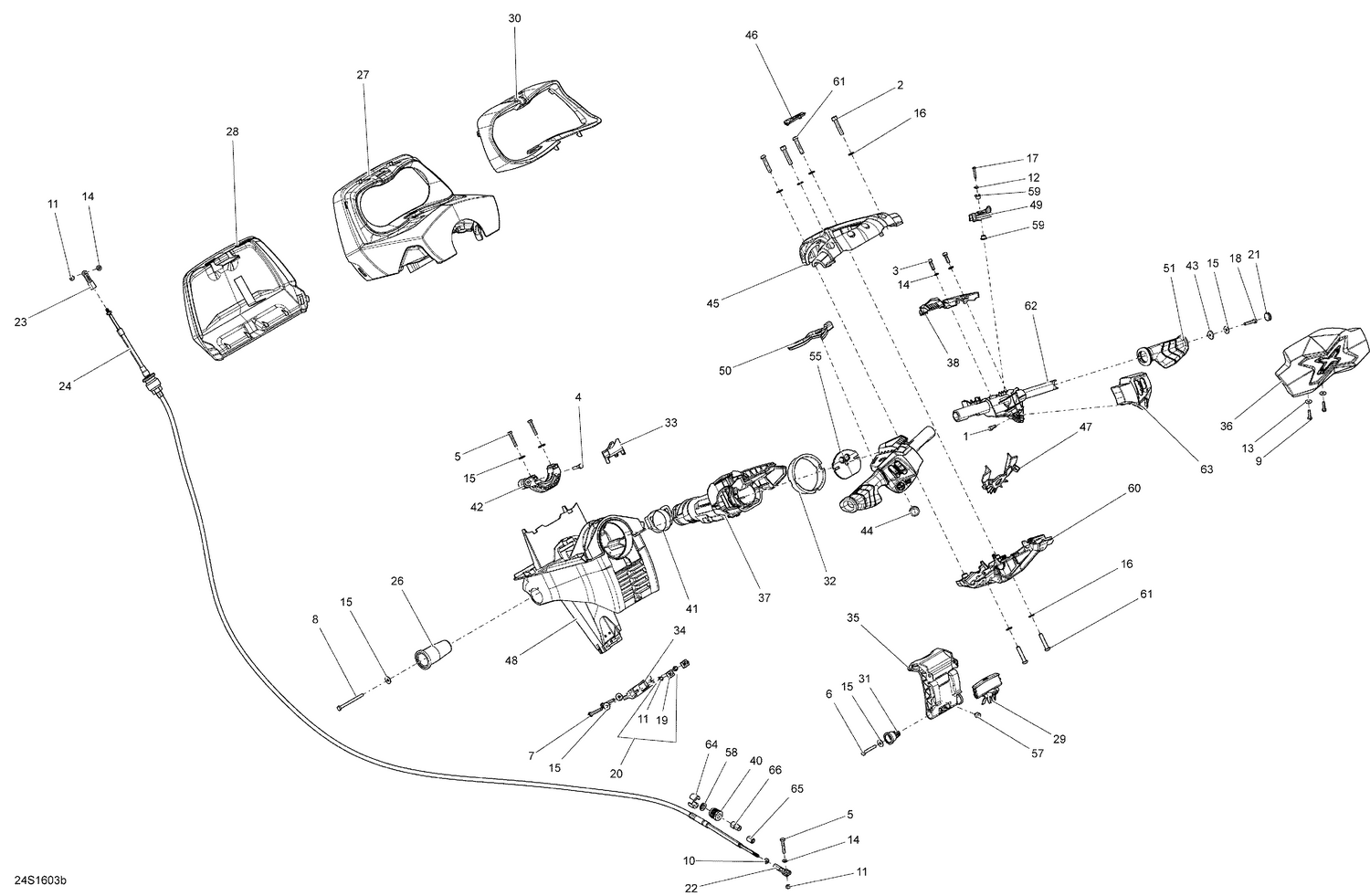

| Ref | Part Number | Description |
|---|
| 1 |
205061660 |
Socket Screw M6 X 16 |
| 2 |
205084060 |
SOCKET HEAD SCREW M8 X 40 - Call your local BRP dealership |
| 3 |
205562060 |
Socket Head Screw M6 X 20, Scotch Grip |
| 4 |
207063060 |
Hex. Screw M6 X 30 |
| 5 |
207063560 |
Hex. Screw M6 X 35 |
| 6 |
207064060 |
Hex. Screw M6 X 40 |
| 7 |
207165060 |
Hex. Screw M6 X 50 |
| 8 |
207168060 |
Hex Screw M6 X 80 |
| 9 |
211000023 |
Hex. Screw 10-14 X 7/8” |
| 10 |
211100056 |
Hex. Nut 1/4"-28 |
| 11 |
232561200 |
Brass Elastic Stop Nut M6 |
| 12 |
234042600 |
Flat Washer 4 mm, Stainless |
| 13 |
234052600 |
Flat Washer 5 mm, Stainless |
| 14 |
234061600 |
Stainless Flat Washer M6 |
| 15 |
234062600 |
Flat Washer M6, Stainless |
| 16 |
234080600 |
Flat Washer M8, Stainless |
| 17 |
241142560 |
Hex. Flange Screw K40 X 25 |
| 18 |
250000002 |
Hex. Screw M6 X 30, Scotch Grip |
| 19 |
269500252 |
M6 Nut Housing Ass'y |
| 20 |
269502408 |
Housing Nut M6 This part replaces 269501166. |
| 21 |
277000203 |
Black, Cap |
| 22 |
277000775 |
Ball Joint |
| 23 |
277001180 |
Ball Joint |
| 24 |
277001602 |
Steering Cable |
| 26 |
277001605 |
Steering Support Pivot |
| 27 |
277001953 |
Gauge Support |
| 28 |
277001613 |
Gauge Support Cover |
| 29 |
277001616 |
LOCK - Call your local BRP dealership |
| 30 |
277001630 |
Gauge Trim, Black |
| 31 |
277001652 |
Pivot |
| 32 |
277001653 |
Wear Ring |
| 33 |
277001654 |
Spacer |
| 34 |
277001655 |
Thrust Support Ass'y |
| 35 |
277001658 |
Handle Ass'y |
| 36 |
277001683 |
Handle Pad |
| 37 |
277001685 |
Steering Column |
| 38 |
277001686 |
LH UPPER HOUSING - Call your local BRP dealership |
| 38 |
277001688 |
Upper Housing RH |
| 40 |
277001729 |
Steering Cable Lock |
| 41 |
277002318 |
Wear Ring This part replaces 277001741. |
| 42 |
277002179 |
Support Ass'y This part replaces 277001779. |
| 43 |
277001863 |
Insert Grip Handle |
| 44 |
277001887 |
Red, Knob Switch |
| 45 |
277001909 |
FRONT EXTENSION BLOC - Call your local BRP dealership |
| 46 |
277001919 |
AESTHETIC CAP - Call your local BRP dealership |
| 47 |
277001920 |
RADIO FREQUENCY KEY SUPPORT - Call your local BRP dealership |
| 48 |
277001942 |
Steering Support |
| 49 |
277001944 |
Throttle Handle |
| 50 |
277001945 |
Reverse Handle |
| 51 |
277001946 |
Deep Black, RH Handle Grip |
| 51 |
277001958 |
Deep Black, LH Handle Grip |
| 54 |
293720083 |
Grommet |
| 55 |
293720086 |
Grommet |
| 56 |
219704454 |
Was 293800013 Loctite 56765 |
| 57 |
293830005 |
Rubber Bumper |
| 58 |
293830063 |
Rubber Washer |
| 59 |
293900091 |
Bushing |
| 60 |
277001926 |
REAR EXTENSION BLOCK - Call your local BRP dealership |
| 61 |
250000845 |
Torx-Button M/S M8 X 40 Stlss S.Gri |
| 62 |
277001950 |
LH Lower Housing This part replaces 277001965. |
| 62 |
277001951 |
RH LOWER HOUSING - Call your local BRP dealership This part replaces 277001966. |
| 63 |
277001718 |
RH Housing Cover |
| 63 |
277001794 |
LH HOUSING COVER - Call your local BRP dealership |
| 64 |
277001527 |
Half Ring |
| 65 |
277001582 |
Wiper Rod |
