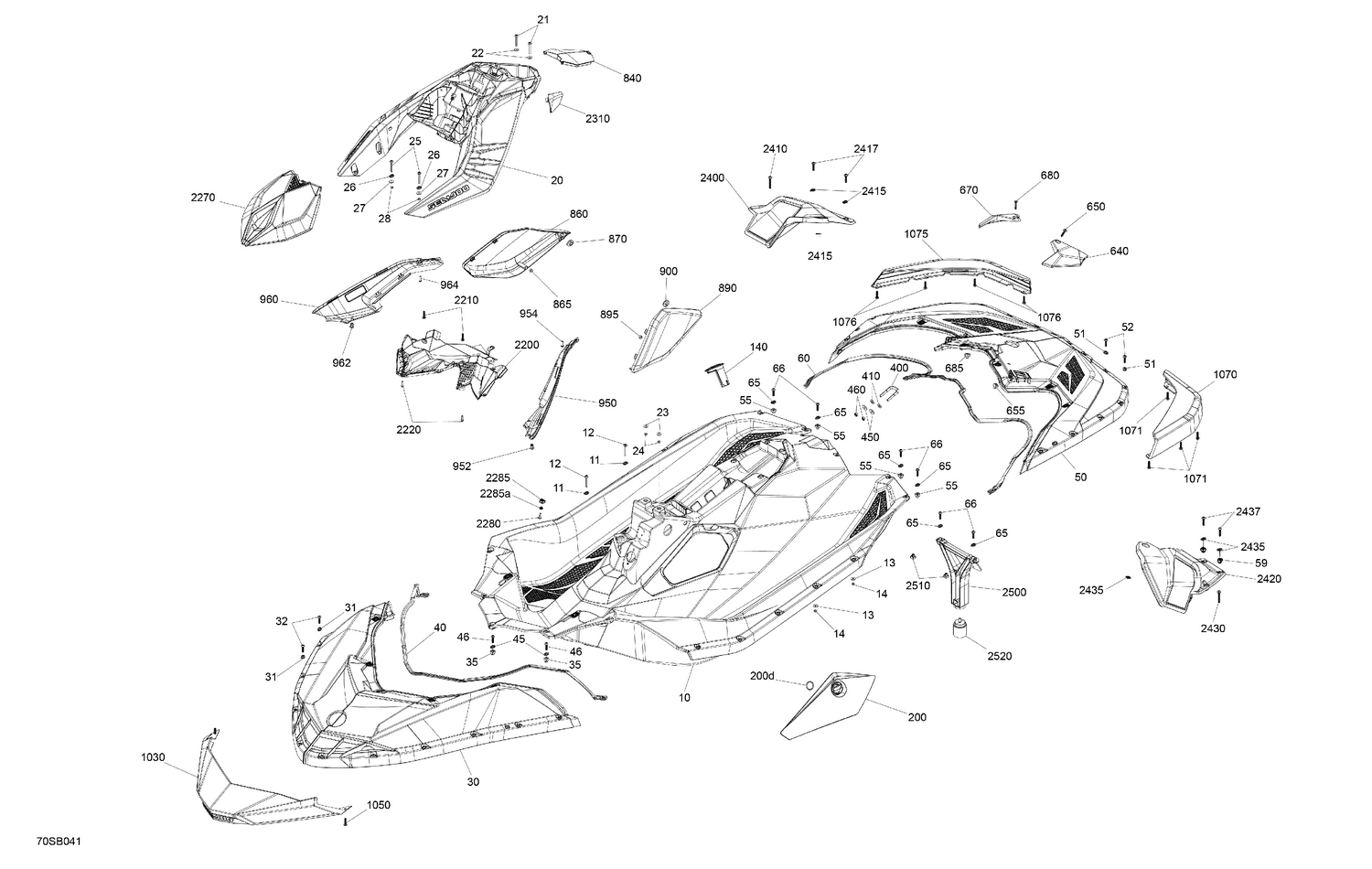

| Ref | Part Number | Description |
|---|
| 10 |
291006043 |
Central Body |
| 11 |
291003880 |
Oval Washer |
| 12 |
250000827 |
Torx Screw Truss Cone HD.M6X50 |
| 13 |
234062600 |
Flat Washer M6, Stainless |
| 14 |
232561200 |
Brass Elastic Stop Nut M6 |
| 21 |
250000827 |
Torx Screw Truss Cone HD.M6X50 |
| 22 |
250200150 |
Flat Washer M6, Stainless |
| 23 |
234062600 |
Flat Washer M6, Stainless |
| 24 |
232561200 |
Brass Elastic Stop Nut M6 |
| 25 |
250000827 |
Torx Screw Truss Cone HD.M6X50 |
| 26 |
291003880 |
Oval Washer |
| 27 |
234062600 |
Flat Washer M6, Stainless |
| 28 |
232561200 |
Brass Elastic Stop Nut M6 |
| 30 |
291004727 |
Deep Black, Front Deck |
| 31 |
291003880 |
Oval Washer |
| 32 |
250001138 |
Plastite Screw Torx Cone HD.M6.81X3 |
| 35 |
291003793 |
Insert |
| 40 |
293250599 |
Gasket |
| 45 |
291003880 |
Oval Washer |
| 46 |
250001138 |
Plastite Screw Torx Cone HD.M6.81X3 |
| 50 |
291005515 |
Deep Black, Drilled Rear Deck |
| 51 |
291003880 |
Oval Washer |
| 52 |
250001138 |
Plastite Screw Torx Cone HD.M6.81X3 |
| 55 |
291003793 |
Insert |
| 59 |
291003793 |
Insert |
| 60 |
293250598 |
Gasket |
| 65 |
291003880 |
Oval Washer |
| 66 |
250001138 |
Plastite Screw Torx Cone HD.M6.81X3 |
| 140 |
291003390 |
Deep Black, Rear Access Cover |
| 200d |
293300121 |
O-Ring |
| 400 |
292000933 |
U-Clamp |
| 410 |
293050001 |
Flat Washer M8.5 x 18 |
| 450 |
234082600 |
Flat Washer 8 mm, Stainless |
| 460 |
232581200 |
Hex. Elastic Nut M8 Brass |
| 640 |
291004545 |
Black, Rear Support LH |
| 650 |
250001138 |
Plastite Screw Torx Cone HD.M6.81X3 |
| 655 |
291003793 |
Insert |
| 670 |
291004546 |
Black, RH Rear Support |
| 680 |
250001138 |
Plastite Screw Torx Cone HD.M6.81X3 |
| 685 |
291003793 |
Insert |
| 840 |
291003378 |
Deep Black, Glove Box Cover |
| 860 |
291005094 |
RH Molded Knee Pad |
| 865 |
293830005 |
Rubber Bumper |
| 870 |
705000321 |
Oval Washer |
| 890 |
291005093 |
LH Molded Knee Pad |
| 895 |
293830005 |
Rubber Bumper |
| 900 |
705000321 |
Oval Washer |
| 950 |
291004576 |
LH Panel Trim |
| 952 |
293150230 |
Tuflok Plastic Rivet |
| 954 |
211000023 |
Hex. Screw 10-14 X 7/8” |
| 960 |
291004577 |
Deep Black, RH Panel Trim |
| 962 |
293150230 |
Tuflok Plastic Rivet |
| 964 |
211000023 |
Hex. Screw 10-14 X 7/8” |
| 1030 |
291004567 |
Front Bumper |
| 1050 |
250000879 |
Plastite Torx Screw M6.81X30 |
| 1070 |
291004568 |
Black, LH Rear Bumper |
| 1071 |
250000879 |
Plastite Torx Screw M6.81X30 |
| 1075 |
291004569 |
Black, RH Rear Bumper |
| 1076 |
250000879 |
Plastite Torx Screw M6.81X30 |
| 2200 |
291004575 |
Black, Inferior Cover |
| 2210 |
250001138 |
Plastite Screw Torx Cone HD.M6.81X3 |
| 2220 |
211000023 |
Hex. Screw 10-14 X 7/8” |
| 2270 |
291005518 |
Deep Black, Console Trim |
| 2280 |
250000829 |
Torx-Truss M/S Stlss M6 X 20 |
| 2285a |
232561200 |
Brass Elastic Stop Nut M6 |
| 2400 |
291004539 |
Can-Am Red, RH Footrest Ass'y |
| 2410 |
250001144 |
Plastite Torx Screw Cone HD. M6.81X |
| 2415 |
291003880 |
Oval Washer |
| 2417 |
250001138 |
Plastite Screw Torx Cone HD.M6.81X3 |
| 2420 |
291004540 |
Black, LH Footrest Ass'y |
| 2430 |
250001144 |
Plastite Torx Screw Cone HD. M6.81X |
| 2435 |
291003880 |
Oval Washer |
| 2437 |
250001138 |
Plastite Screw Torx Cone HD.M6.81X3 |
| 2500 |
291003440 |
Rear Support |
| 2510 |
291003793 |
Insert |
