Home / BRP / JOHNSON / 1980 / 150 / J150TLCSF 1980 / GEARCASE

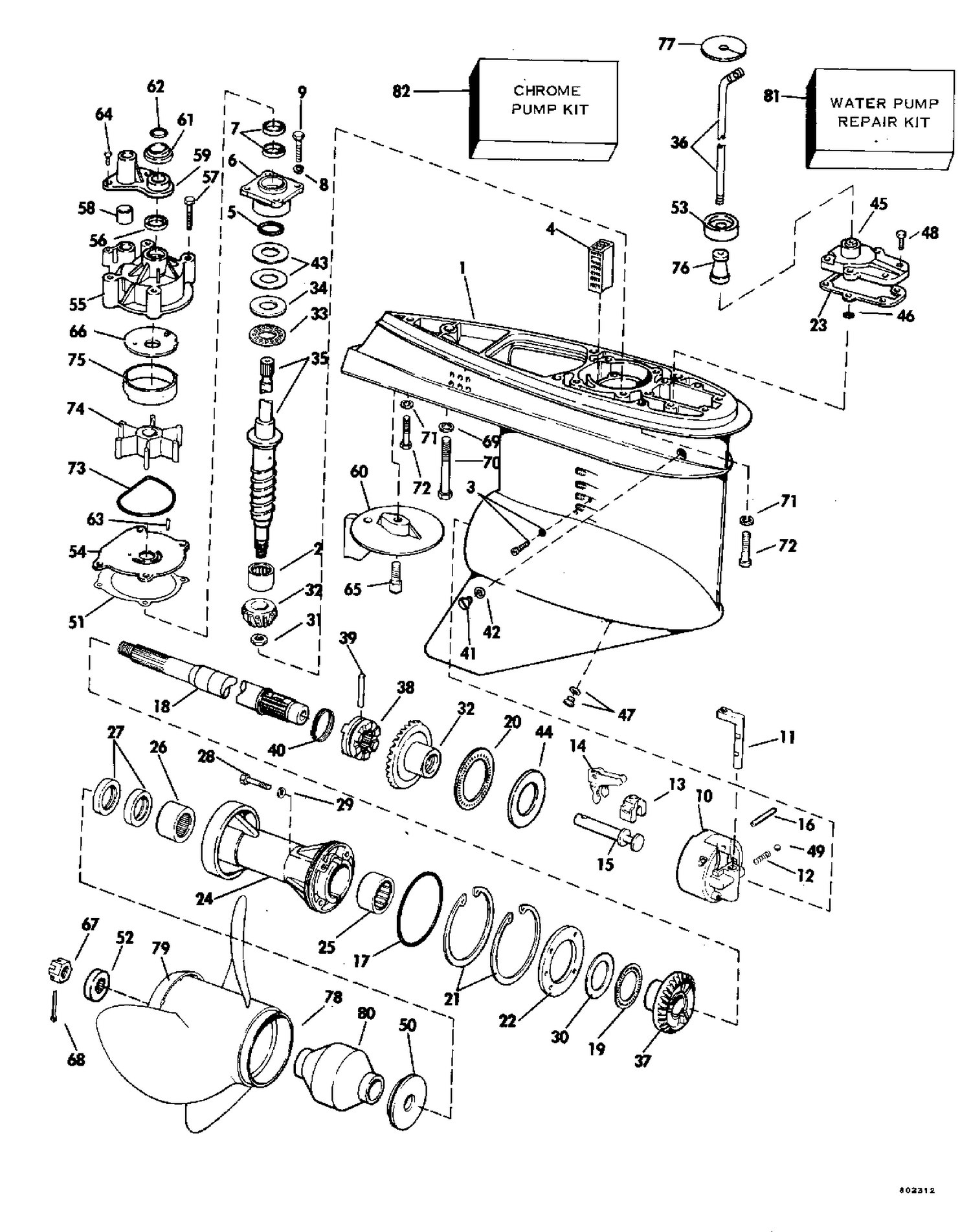

GEARCASE

GEARCASE

Parts (52)

RefPart NumberDescription
1 0391329 GEARCASE & BEARING ASSY This part replaces 0389861.
17 0305123 O RING This part replaces 0321119.
18 0982416 PROP SFT SPR & GUIDE ASSY
21 0321171 RETAINING RING
22 0321174 PLUG, Large
24 0387374 BEARING HOUISNG & SEAL ASSY
28 0316563 SCREW
29 0317178 O RING
32 0983141 FORWARD GEAR & PINION ASSY This part replaces 0391289.
35 5000775 Kit Ayd/Shaft-20 This part replaces 0389665.
35 5000776 Kit Ay This part replaces 0389666.
36 0324407 SHIFT ROD
36 0324408 SHAFT ROD.
37 0325445 GEAR, Revers
38 0910198 SHIFTER, Clutch dog
43 0314742 SHIM BEARING HOUSING
48 0335020 SCREW, Bracket to block This part replaces 0318139.
50 0333592 THRUST BUSHING This part replaces 0321173.
54 0435027 CUP & PLATE This part replaces 0324751.
55 0389657 IMPELLER HOUSING ASSY
57 0323626 SCREW
60 0338742 COMPENSATEUR DE DÉRIVE This part replaces 0316981.
63 0323950 KEY, Drive shaft to impeller
65 0313715 SCREW, Cap, hex hd, 7/16-14 x 1
66 0321176 PALTE,Liner,impeller
68 0309955 COT PIN,Prop nut
69 0306314 L'WASHER,Scr,long
70 0313697 SCR,Grc to hsg.long
71 0307708 RONDELLE GROWER
72 0320741 SCREW, Gearcase to exhaust hsg
73 0321120 SEAL
75 0322894 LINER, Impeller
77 0322302 SEAL, Adapter to frame
78 0387158 PEOPELLER, 15-1/2 x 13
78 0387159 PROP,15-1/2x15
78 0387161 PROP,14-1/2x19
78 0387162 PROP,14-1/2x21
78 0387163 PROP,14-1/2x23
78 0387995 PROP, 14-1/2 x 24 sstr
78 0387996 PROP, 14-1/2 x 26 sstr
78 0387997 PROP.14-1/2X28SSTR
78 0389019 PROP, 14-1/2 x 23 SST
78 0389923 PROP, 14-1/2 x 21 SST
78 0389924 PROP, 14-1/2 x 19 SST
78 0389925 PROP, 15 x 16 SST
78 0390725 PROP, 14 x 25 SST
78 0390831 PROP, 14-1/2 x 14 SST
78 0765187 PROPELLER, WDEX Models This part replaces 0387160.
81 5001594 WATER PUMP REPAIR KIT This part replaces 0390768.
0307853 0307853 O RING
0389864 0434418 GEARCASE ASSY., Complete This part replaces 0389864.
0389865 0434417 GEARCASE ASSY., Complete This part replaces 0389865.
