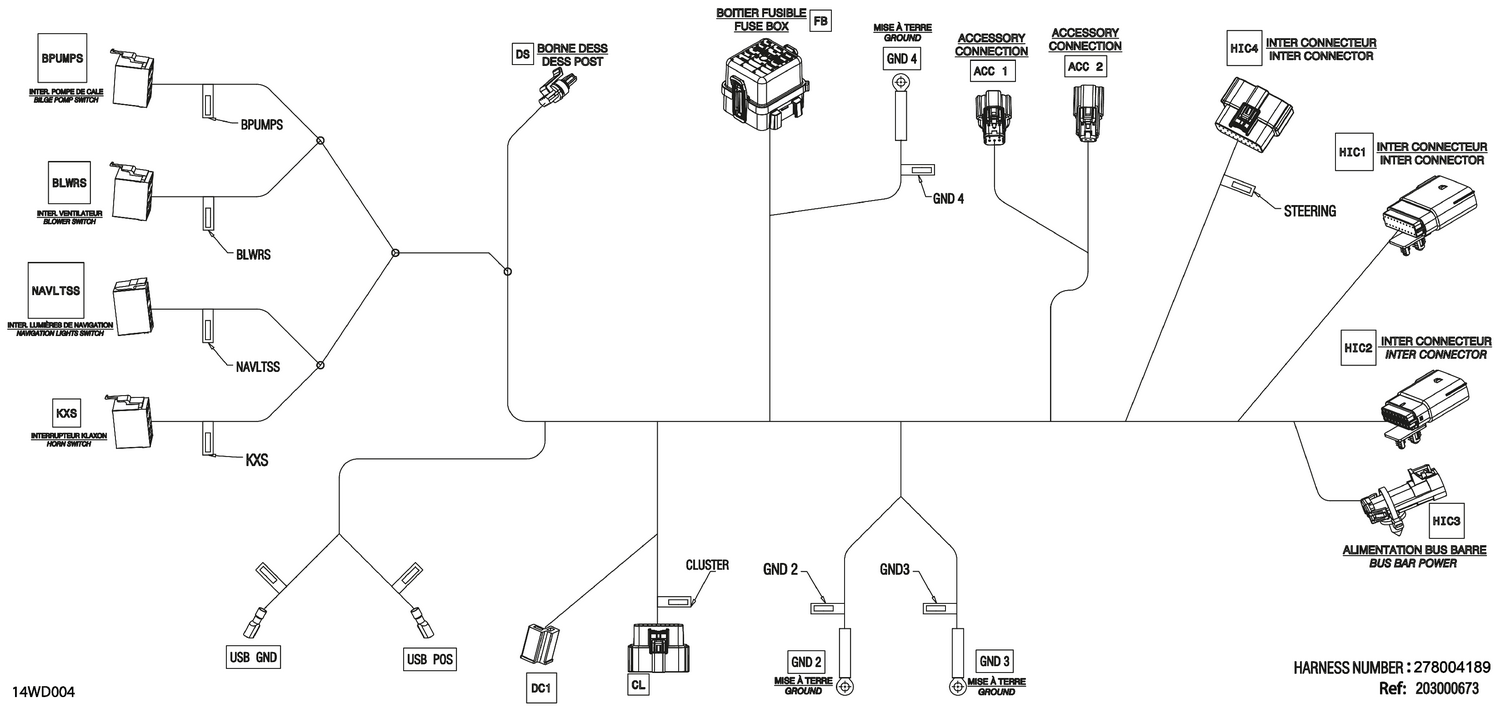

02- MECHANICS - Console Wiring Harness - 278004189
Parts (66)
| Ref | Part Number | Description |
|---|---|---|
| ACC1 | 515178014 | Female Terminal |
| ACC1 | 515178954 | Housing |
| ACC2 | 515178014 | Female Terminal |
| ACC2 | 515178018 | Female Terminal |
| ACC2 | 710005827 | Connector 2 Pins with CPA |
| BLWRS | 710001875 | CONNECTOR_FEMALE 8 CAVITIES - Call your local BRP dealership |
| BLWRS | 710003047 | Terminal |
| BLWRS | 710003048 | Terminal |
| BPUMPS | 710001876 | Housing |
| BPUMPS | 710003047 | Terminal |
| BPUMPS | 710003048 | Terminal |
| BPUMPS2 | 710001876 | Housing |
| BPUMPS2 | 710003047 | Terminal |
| BPUMPS2 | 710003048 | Terminal |
| CL | 278002858 | Female Housing 20 Circuits |
| CL | 278002860 | Sealing Cap |
| CL | 515178018 | Female Terminal |
| DC1 | 278003787 | Terminal |
| DC1 | 710005373 | Housing |
| DS | 710000925 | Terminal |
| DS | 710001153 | Seal Wire |
| DS | 710001161 | Housing |
| FB | 278000218 | Wire Seal |
| FB | 278001065 | Wire Seal |
| FB | 278002880 | Seal Plug |
| FB | 278003448 | Fuse Base Ass'y |
| FB | 278003725 | Fuse Box Cover |
| FB | 710000741 | Little Fuse |
| FB | 710000742 | Little Fuse, 5 Amperes |
| FB | 710000744 | Little Fuse, 10 Amperes |
| FB | 710000745 | Little Fuse, 15 Ampere |
| FB | 710000890 | Female Terminal |
| FB | 710000918 | Female Terminal |
| FB | 710001008 | Little Fuse, 3 AMP |
| FB | 710007051 | Little Fuse, 4 Amps |
| FB | 715900824 | Relay This part replaces 710001778. |
| FL | 278004230 | Delphi Female 4 Cavities Connector |
| FL | 710003047 | Terminal |
| FL | 710003048 | Terminal |
| GND2 | 278001392 | Open Barrel Terminal |
| GND3 | 278000992 | Open Barrel |
| GND4 | 278000992 | Open Barrel |
| HIC1 | 278002852 | Housing 20 Circuits |
| HIC1 | 278002860 | Sealing Cap |
| HIC1 | 514055393 | Support |
| HIC1 | 515178013 | Male Terminal |
| HIC2 | 278002860 | Sealing Cap |
| HIC2 | 514055393 | Support |
| HIC2 | 515178013 | Male Terminal |
| HIC2 | 515178293 | Male Terminal |
| HIC2 | 710005976 | Connector Molex Mx150 16 Pos |
| HIC3 | 710001159 | Wire Seal |
| HIC3 | 710001323 | Lock |
| HIC3 | 710002325 | Housing |
| HIC3 | 710002326 | Terminal |
| HIC4 | 278002858 | Female Housing 20 Circuits |
| HIC4 | 278002860 | Sealing Cap |
| HIC4 | 515178018 | Female Terminal |
| KXS | 710001877 | Housing |
| KXS | 710003047 | Terminal |
| KXS | 710003048 | Terminal |
| NAVLTSS | 710002000 | Housing |
| NAVLTSS | 710003047 | Terminal |
| NAVLTSS | 710003048 | Terminal |
| USB_GND | 409010700 | Female Terminal |
| 1800 | 278004189 | Console Wiring Harness |
