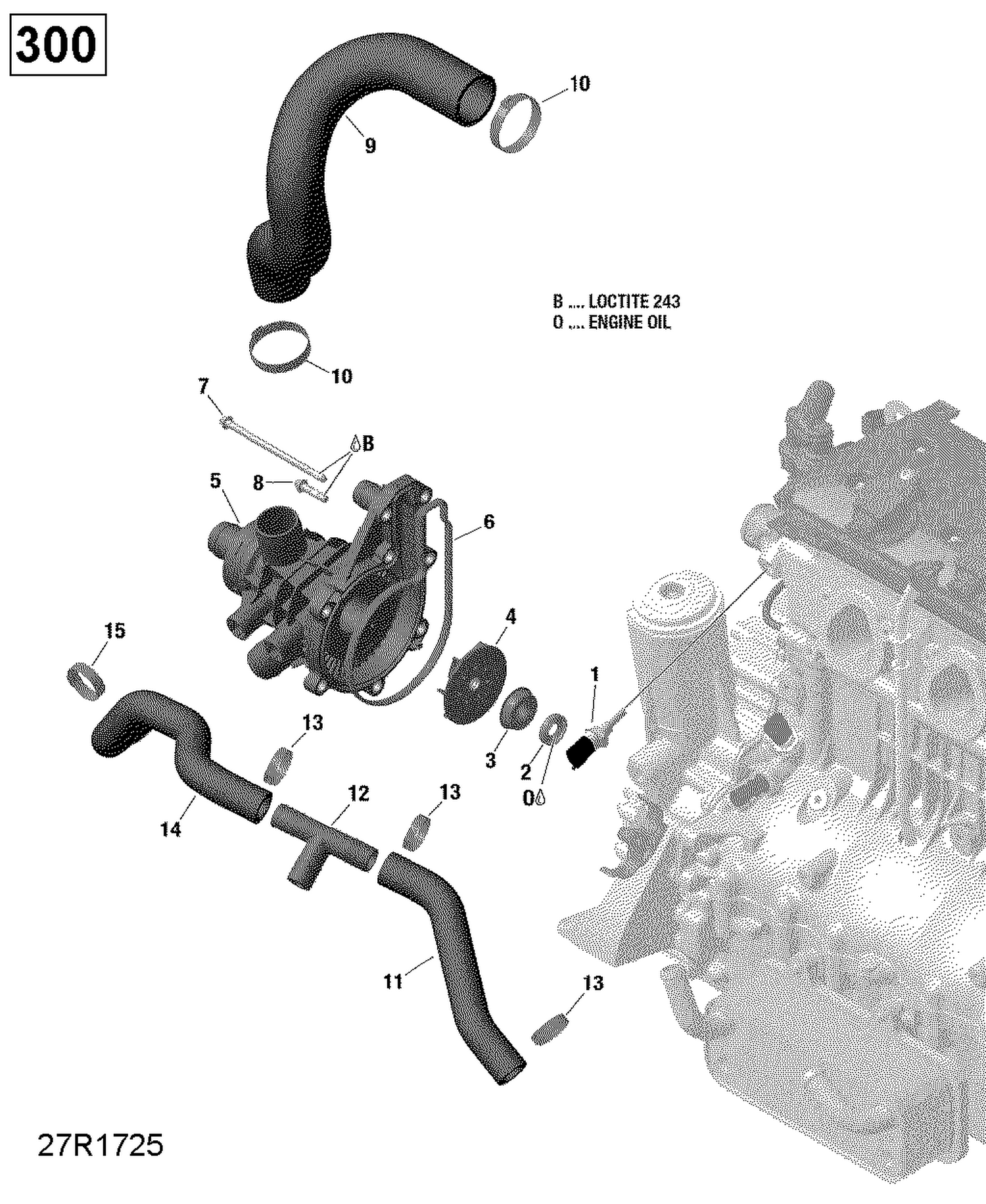

01- Engine Cooling - 300
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 278002895 | Temperature Sensor |
| 2 | 420650315 | Oil Seal This part replaces 420650310. |
| 3 | 420650371 | Rotary Seal This part replaces 420650370. |
| 4 | 420922804 | Impeller This part replaces 420922803. |
| 6 | 420950840 | Water Pump Housing Gasket |
| 7 | 420641338 | Torx Flange Screw M6 X 105 |
| 8 | 420641238 | Torx Flange Screw M6 X 25 |
| 9 | 420922823 | Formed Hose This part replaces 420822791. |
| 10 | 420851687 | Oetiker Clamp |
| 11 | 420822865 | Formed Hose |
| 12 | 293710131 | T-Fitting This part replaces 420822850. |
| 13 | 420251578 | Clamp |
| 14 | 420822860 | Formed Hose |
