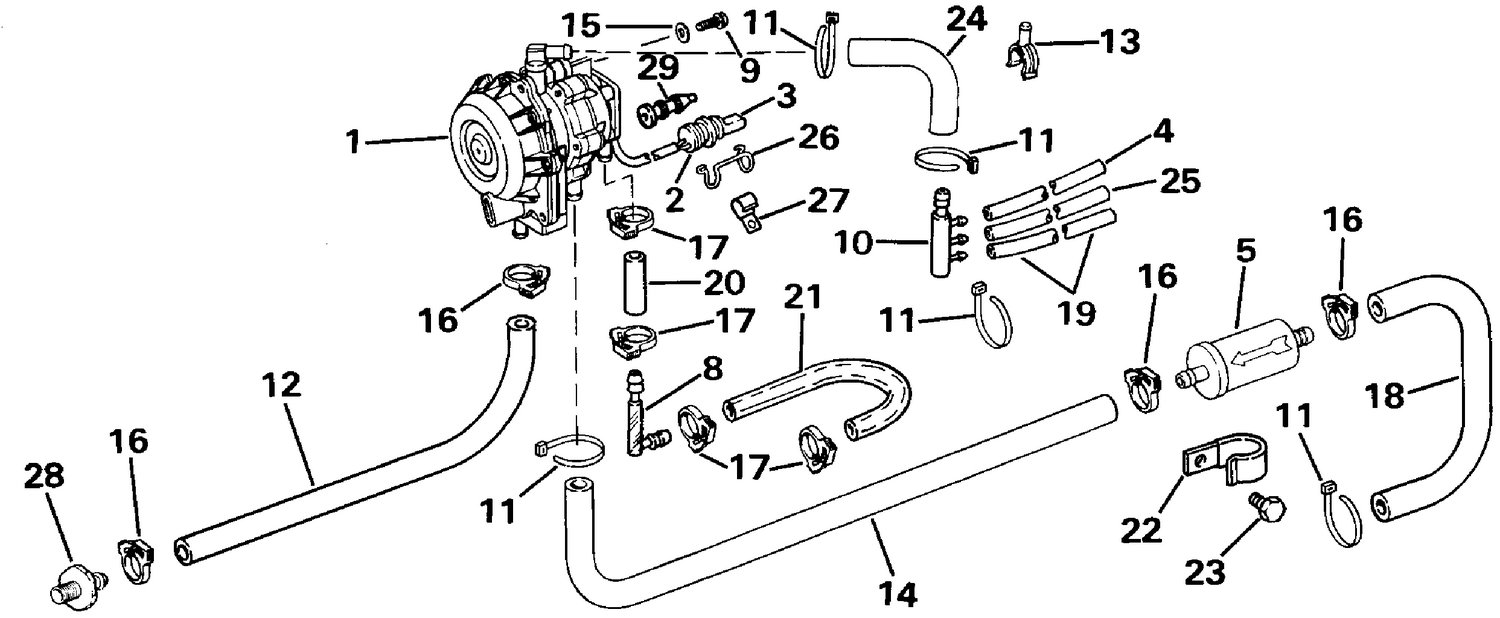

| Ref | Part Number | Description |
|---|
| 1 |
5007421 |
Kit Ay This part replaces 0174570. |
| 4 |
HOSE, |
Fuel manifold to carb., upper 127mm (5 in.) |
| 5 |
0398327 |
FILTER, MAP sensor |
| 8 |
0331841 |
SIGHT TUBE OIL |
| 10 |
5004610 |
FITTING, Fuel manifold This part replaces 0395540. |
| 11 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 12 |
0332851 |
FLEXIBLE D’IMPULSIONS |
| 13 |
0329661 |
SUPPORT/BOUCHON |
| 14 |
HOSE, |
Filter to fuel pump 103/4 in. (273mm) |
| 17 |
0322654 |
PINCE RAPIDE, flexible d'huile |
| 18 |
0333381 |
HOSE, Connector to filter |
| 19 |
HOSE, |
Fuel manifold to lower carb., 127mm 5 in.) |
| 20 |
HOSE, |
Sight tube to pump 38mm (1 1/2 in.) |
| 21 |
HOSE, |
Oil conn. to sight tube 243mm (9 9/16 in.) |
| 23 |
0909676 |
SCREW |
| 24 |
0333446 |
FLEXIBLE, entrée d'eau |
| 25 |
HOSE, |
Manifold to primer 216mm (8 1/2 in.) |
| 26 |
0512742 |
DISPOSITIF DE RETENUE, connecteur |
| 29 |
0333521 |
MOUNT, Isolation |
