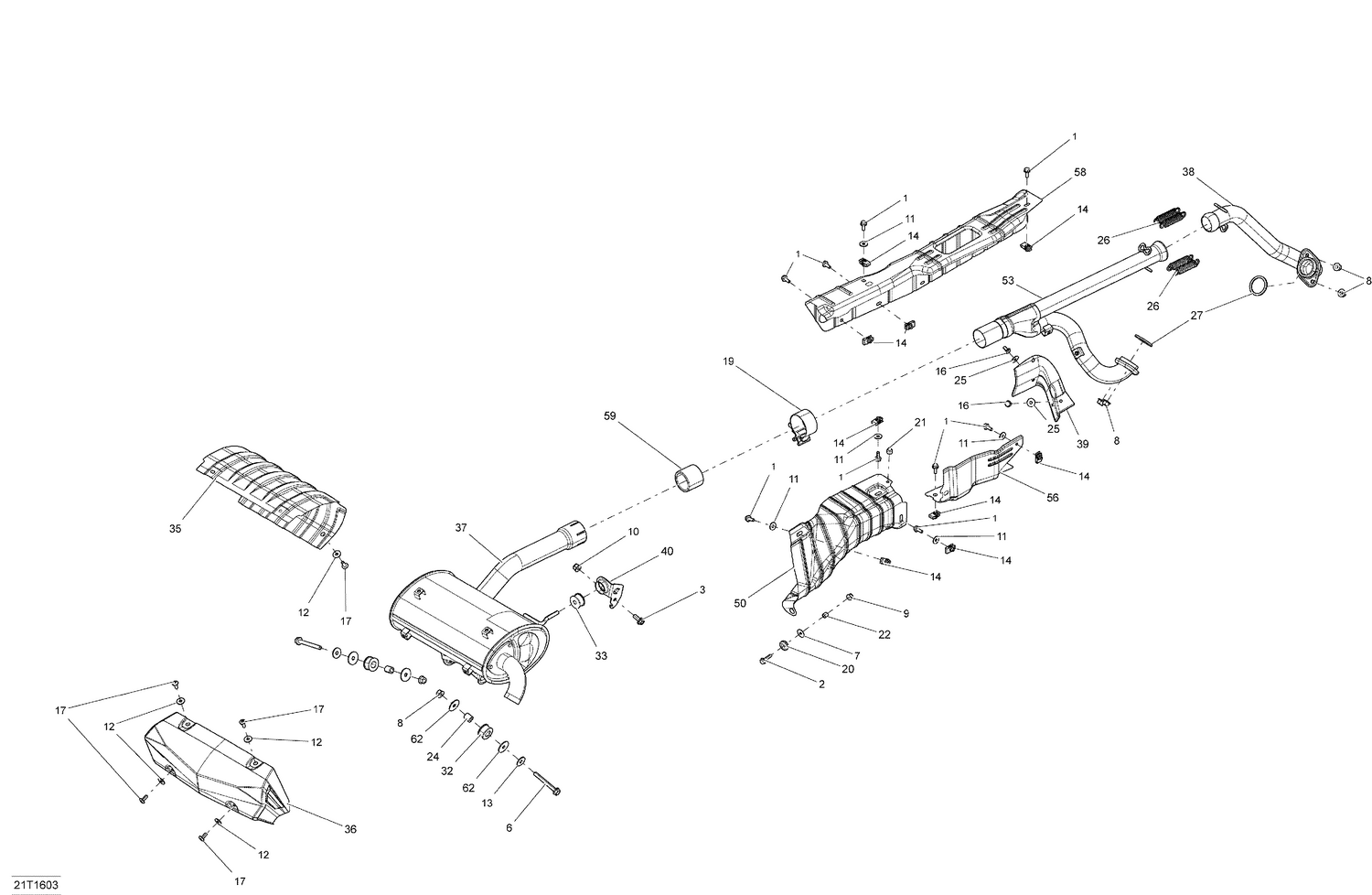

01- Exhaust System
Parts (35)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 207661644 | Hex. Flange Screw M6 X 16 |
| 2 | 207662534 | Hex. Flange Screw M6 X 25 |
| 3 | 207682034 | Hex. Flange Screw |
| 6 | 207687044 | Hex. Flange Screw M8 X 70 |
| 7 | 224060201 | Flat Washer |
| 8 | 233081416 | Hex. Flange Nut M8 |
| 9 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 10 | 233281414 | Hex. Flange Elastic Nut M8 |
| 11 | 234062410 | Flat Washer 6 mm |
| 12 | 234062670 | Stainless Steel Flat Washer |
| 13 | 234082410 | Flat Washer 8 mm |
| 14 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000048. |
| 16 | 250000574 | Hex. Flange Screw M6 X 12 |
| 17 | 250000717 | Torx Head Screw M6 X 16 |
| 19 | 293650231 | Gear Clamp |
| 20 | 709000582 | Grommet This part replaces 293720053. |
| 21 | 293830005 | Rubber Bumper |
| 22 | 293900105 | Bushing |
| 24 | 293900116 | Spacer Bushing |
| 25 | 250200082 | Flat Washer This part replaces 391302000. |
| 26 | 415107100 | Spring |
| 27 | 707600317 | Gasket |
| 32 | 707603323 | Vibration Damper This part replaces 707600701. |
| 33 | 707600702 | Anti-Vibration Rubber |
| 35 | 707600737 | Heat Deflector |
| 36 | 707600738 | Heat Deflector |
| 37a | 707601803 | Spark Arrester This part replaces 715900089. |
| 37b | 707601799 | Gasket This part replaces 715900149. |
| 37c | 715900144 | MUFFLER END PIECE - Call your local BRP dealership |
| 39 | 707600932 | Pipe Protector |
| 40 | 707600933 | Support |
| 50 | 707601425 | Protector |
| 56 | 707601484 | Protector |
| 58 | 707603724 | Heat Shield This part replaces 707601486. |
| 59 | 707601544 | Pipe Gasket |
