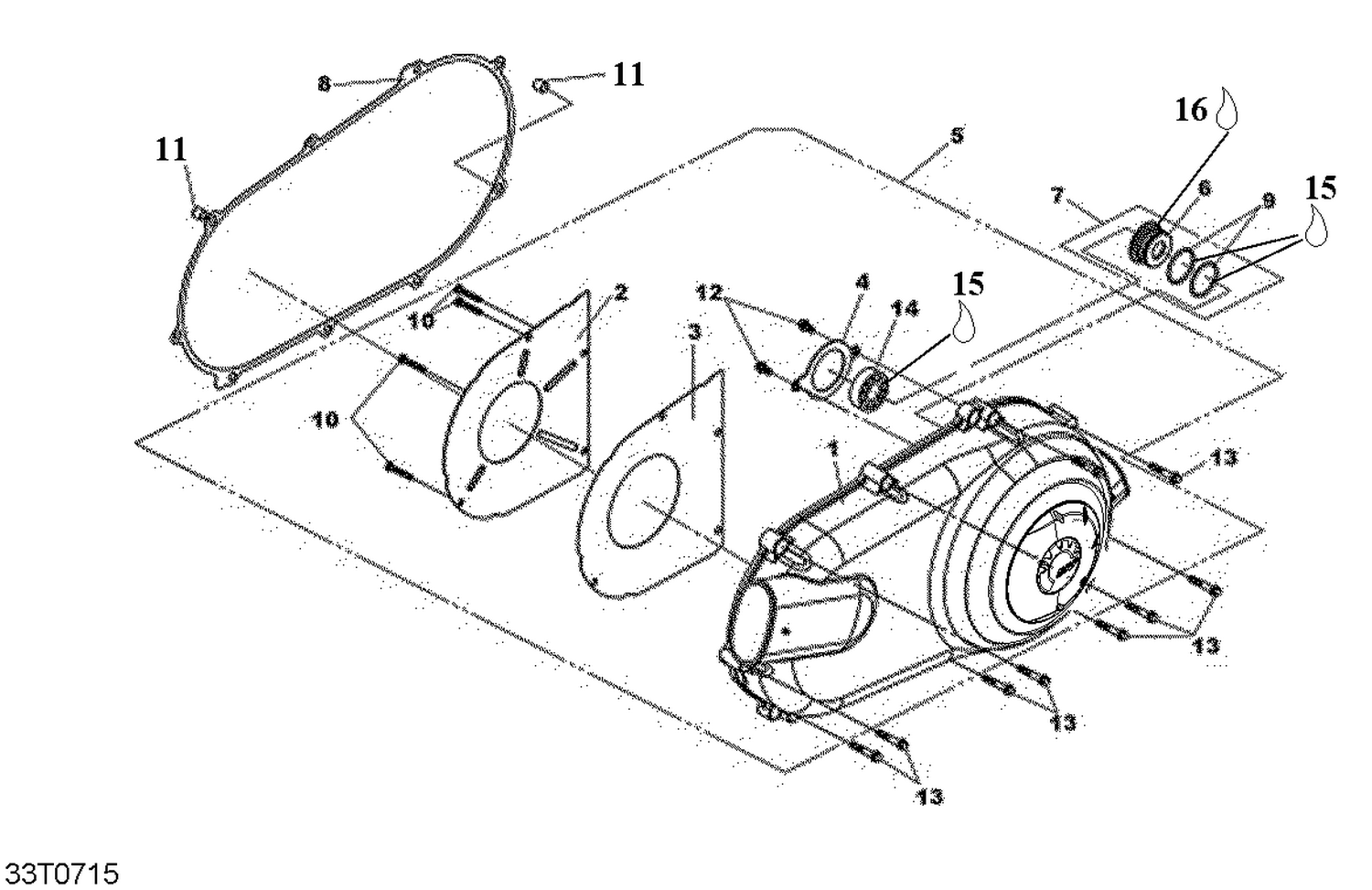

05- CVT Cover
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 1 | NASP/NDPR | Not Available As Spare Parts |
| 2 | NASP/NDPR | Not Available As Spare Parts |
| 3 | NASP/NDPR | Not Available As Spare Parts |
| 4 | NASP/NDPR | Not Available As Spare Parts |
| 5 | S1134ARCA000 | LH Crankcase Cvt Cover Ass'y |
| 6 | NASP/NDPR | Not Available As Spare Parts |
| 7 | S1137AHMA000 | Bearing Collar Ass'y |
| 8 | S11395RB1000 | Gasket |
| 9 | NASP/NDPR | Not Available As Spare Parts |
| 10 | NASP/NDPR | Not Available As Spare Parts |
| 11 | S9430108140 | Dowel Pin |
| 12 | S960010601200 | Hex. Flange Screw M6 X 12 |
| 13 | S960010603500 | Hex. Flange Screw M6 X 35 |
| 14 | 504152418 | Ball Bearing |
| 15 | Not | Available As Spare Part - Engine Oil |
