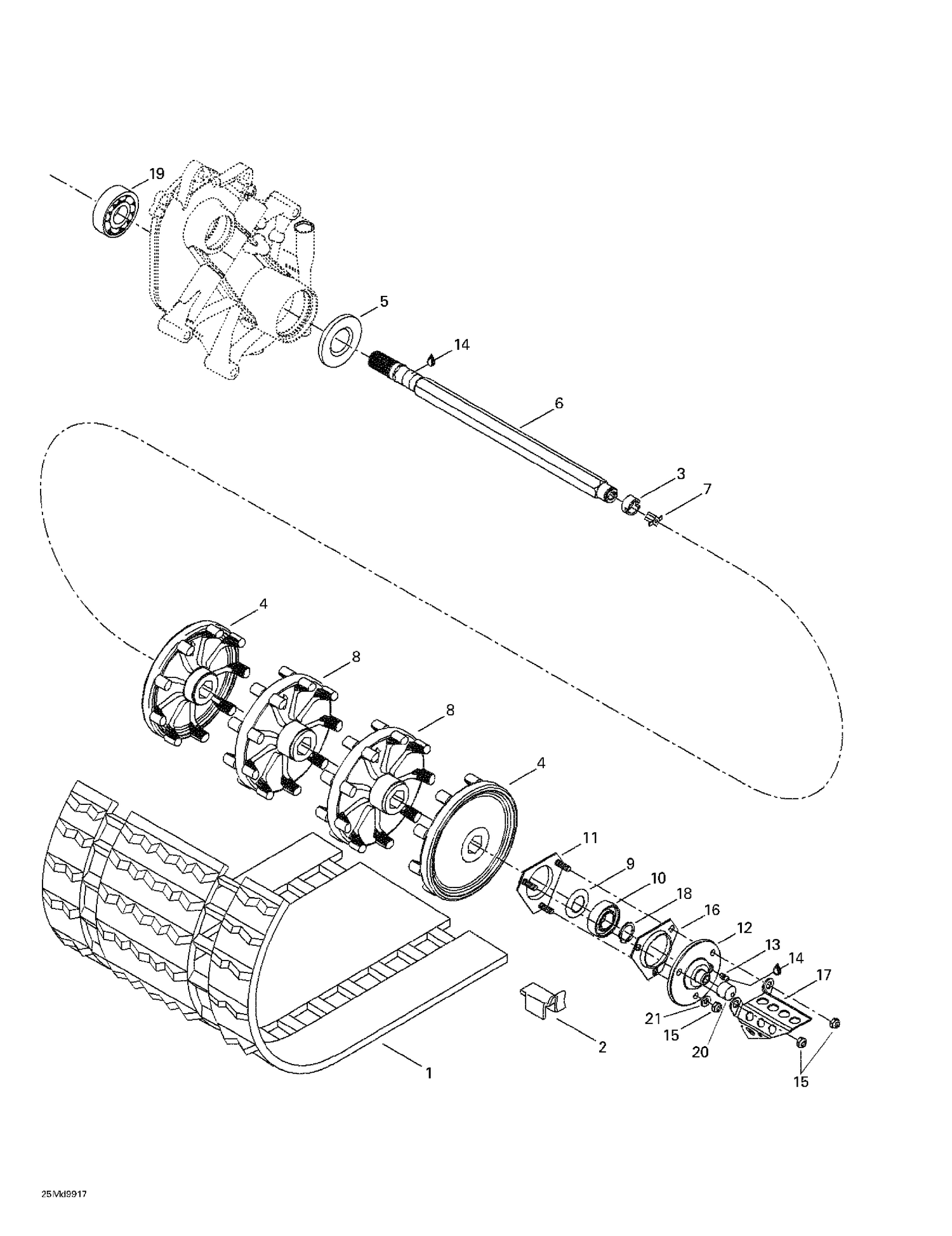

| Ref | Part Number | Description |
|---|
| 2 |
415129528 |
Track Guide This part replaces 500003400. |
| 5 |
504151918 |
Oil Seal Ass'y This part replaces 581128500. |
| 7 |
572010100 |
SPEEDO DRIVE INSERT - Call your local BRP dealership |
| 9 |
501017400 |
BEARING PROTECTOR - Call your local BRP dealership |
| 10 |
293350060 |
Ball Bearing This part replaces 405408600. |
| 11 |
504151860 |
BEARING HOUSING - Call your local BRP dealership This part replaces 501026800. |
| 12 |
504151836 |
Flange, Speedo Drive Insert |
| 13 |
408200700 |
Grease Fitting |
| 14 |
219700417 |
SYNTHETIC GREASE, 400 G - Call your local BRP dealership |
| 15 |
232581414 |
Hex. Elastic Stop Nut M8 |
| 16 |
501025000 |
FLANGE - Call your local BRP dealership |
| 18 |
371910200 |
CIRCLIP - Call your local BRP dealership |
| 19 |
504152005 |
Ball Bearing This part replaces 405408500. |
