Home / BRP / Can-Am 3-Wheel Vehicles / 2018 / F3 Series / F3 STD SE6, 2018 000E5JA00 000E5JB00 000E5JC00 000E5JD00 / GEARCASE

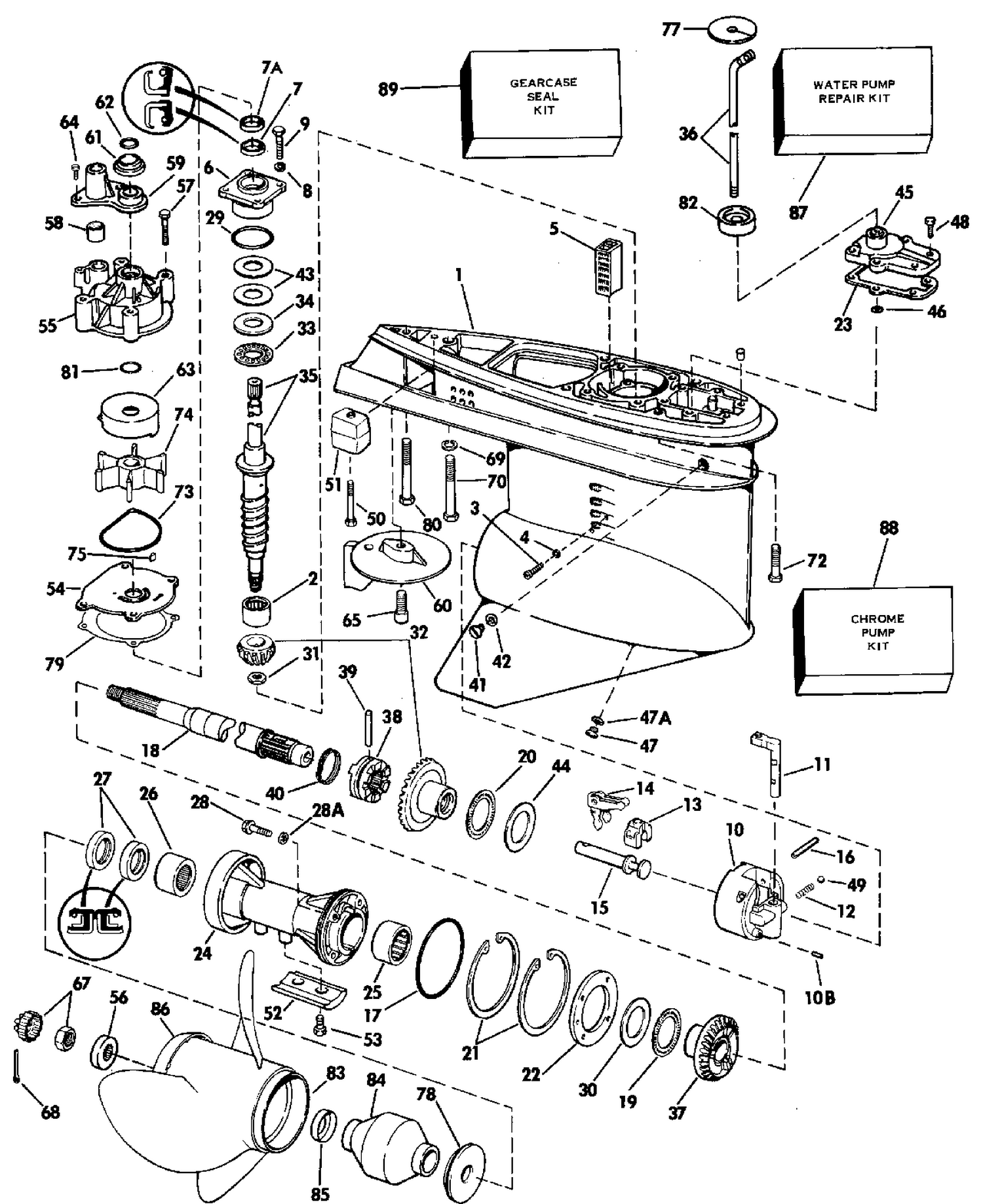

GEARCASE

GEARCASE

Parts (56)

RefPart NumberDescription
1 0431787 GEARCASE & BEARING ASSY.
17 0305123 O RING This part replaces 0321119.
18 0395209 PROP SHAFT ASSY
19 0392408 THRUST BRG. ASSY., Rev. gear
21 0321171 RETAINING RING
22 0321174 PLUG, Large
24 0397094 BEARING HOUSING & SEAL ASSY
28 0316563 SCREW
28A 0332583 SCREW & SEAL ASSY.
32 0983141 FORWARD GEAR & PINION ASSY
35 5000775 Kit Ayd/Shaft-20 This part replaces 0394615.
36 0324407 SHIFT ROD
37 0910994 GEAR, Reverse
51 0392023 ANODE
54 0435027 CUP & PLATE This part replaces 0330380.
54 0435526 CHROME CUP & PLATE KIT This part replaces 0330383.
55 0435485 IMPELLER HOUSING ASSY. This part replaces 0395040.
57 0335221 SCREW, Throttle body to reed plate This part replaces 0328715.
60 0338742 COMPENSATEUR DE DÉRIVE This part replaces 0327640.
63 0435027 CUP & PLATE This part replaces 0330379.
63 0435526 CHROME CUP & PLATE KIT This part replaces 0330384.
65 0313715 SCREW, Cap, hex hd, 7/16-14 x 1
69 0326784 WASHER, Screw
70 0331998 SCREW, Gearcase to housing
72 0331999 SCREW, Gearcase housing
73 0331353 Seal, Impeller Housing Plate.
77 0322302 SEAL, Adapter to frame
78 0333592 THRUST BUSHING
80 0330263 SCREW, Mounting, 3/8 in. X 3.50 in.
81 0332000 SEAL RING
83 0174821 PROP, 4 blade 13 1/4 X 29
83 0387158 PEOPELLER, 15-1/2 x 13
83 0387159 PROP,15-1/2x15
83 0387161 PROP,14-1/2x19
83 0387163 PROP,14-1/2x23
83 0387995 PROP, 14-1/2 x 24 sstr
83 0387996 PROP, 14-1/2 x 26 sstr
83 0387997 PROP.14-1/2X28SSTR
83 0389019 PROP, 14-1/2 x 23 SST
83 0389923 PROP, 14-1/2 x 21 SST
83 0389924 PROP, 14-1/2 x 19 SST
83 0389925 PROP, 15 x 16 SST
83 0390725 PROP, 14 x 25 SST
83 0390831 PROP, 14-1/2 x 14 SST
83 0391201 PROP, 14-1/2 x 19
83 0391202 PROP, 14-1/2 x 21
83 0391290 PROP, 15 x 17 SST
83 0391863 PROPELLER, 14 1/2 X 27 OMC SRX
83 0391864 PROPELLER, 14 1/2 x 29 OMC SRX
83 0431717 PROP, 4 blade, 13 1/2 x 23
83 0431718 PROP, 4 blade, 13 1/4 x 25
83 0431719 PROP, 4 blade, 13 1/4 x 27
83 0765187 PROPELLER, WDEX Models This part replaces 0387160.
87 5001594 WATER PUMP REPAIR KIT This part replaces 0395060.
88 0435526 CHROME CUP & PLATE KIT This part replaces 0395059.
0398012 0434417 GEARCASE ASSY., Complete This part replaces 0398012.
