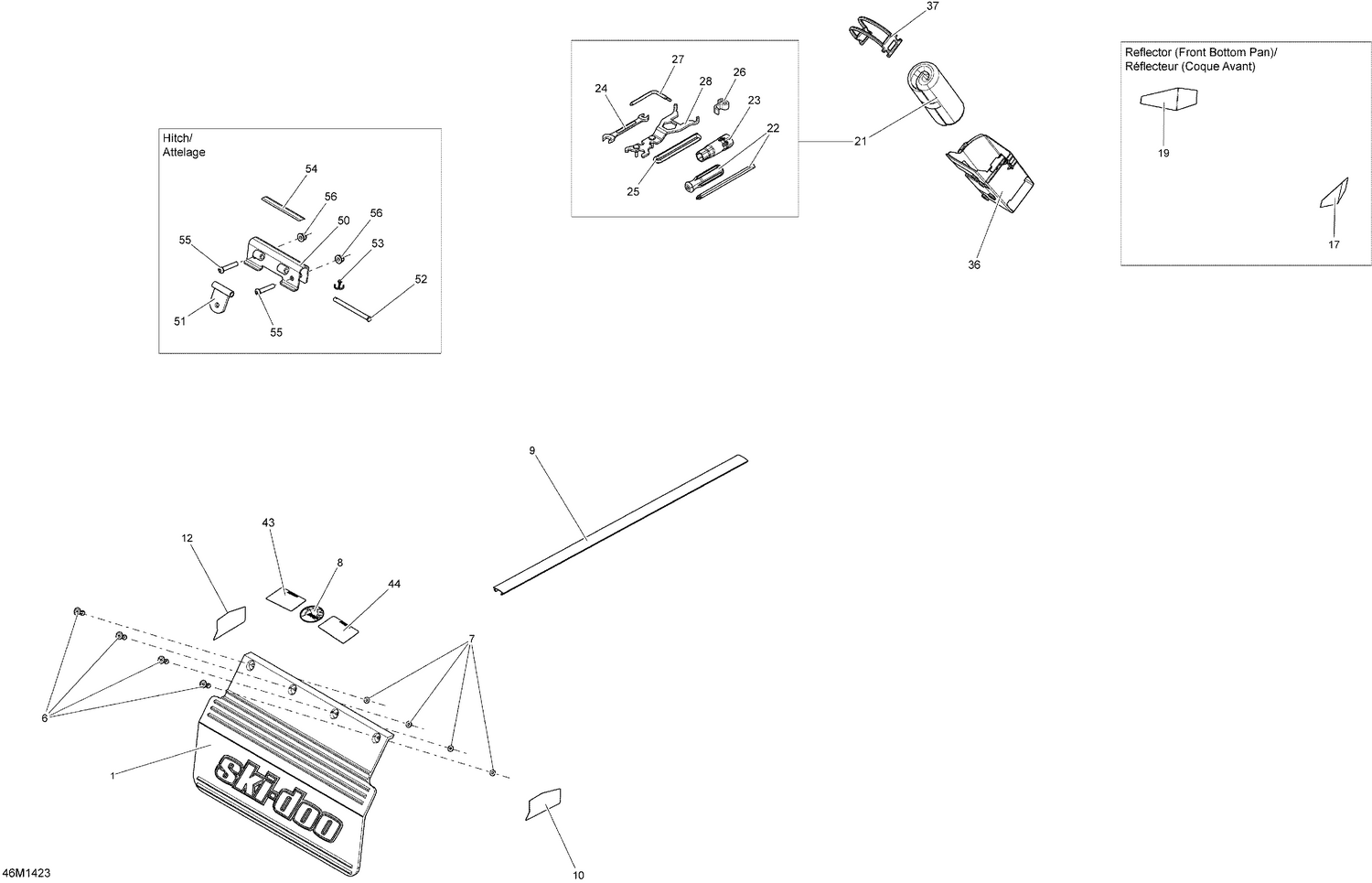

09- Utilities
Parts (24)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 520000606 | SNOW GUARD - Call your local BRP dealership |
| 6 | 293150101 | Pop Rivet 3/16” This part replaces 293150101. |
| 7 | 517124300 | Washer |
| 8 | 219903947 | BRP Logo 48 mm |
| 9 | 520000829 | Radiator Trim |
| 17 | 520000718 | Yellow, RH Front Reflector |
| 19 | 520000719 | Yellow, LH Front Reflector |
| 22 | 529000004 | SCREWDRIVER - Call your local BRP dealership |
| 23 | 529000046 | Set Key, 16/21 mm |
| 24 | 529000002 | FORK WRENCH, 10/13 MM - Call your local BRP dealership |
| 25 | 219704403 | Was 412500100 Rope-Starter |
| 26 | 529000060 | Starter Grip |
| 27 | 520001142 | Spacing Tool |
| 28 | 520000988 | WRENCH SUSPENSION - Call your local BRP dealership |
| 36 | 520000894 | Tool Kit Rack |
| 37 | 520000528 | Latch |
| 43 | 516006431 | LH Warning Decal, Safety |
| 44 | 516005587 | RH Warning Decal, Safety |
| 50 | 511000768 | Support |
| 51 | 511000521 | Hitch Plate Welded |
| 52 | 511001451 | Lock Pin This part replaces 511000520. |
| 53 | 371800200 | Cotter Pin |
| 54 | 516004568 | WARNING DECAL, SECURITY - Call your local BRP dealership |
| 55 | 205484546 | Socket Head Screw M8 X 45 |
