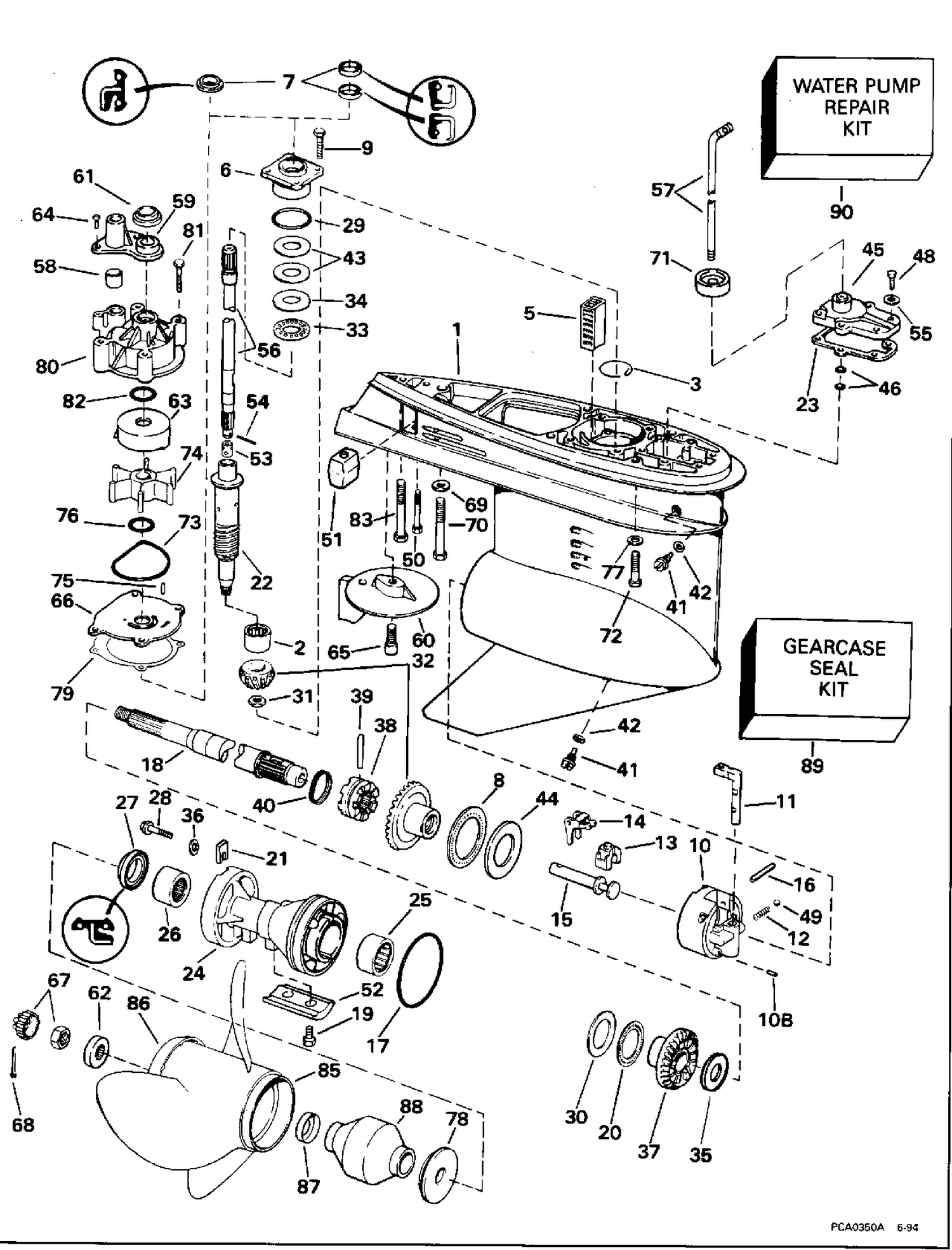

| Ref | Part Number | Description |
|---|
| 3 |
0338778 |
RETAINING RING |
| 7 |
0341280 |
SEAL |
| 17 |
0305123 |
O RING |
| 26 |
0434467 |
NEEDLE BEARING ASSY. |
| 27 |
0341281 |
SEAL |
| 56 |
5007671 |
DRIVESHAFT Assembly, Upper This part replaces 0435765. |
| 57 |
0329864 |
SHIFT ROD |
| 60 |
0338742 |
COMPENSATEUR DE DÉRIVE This part replaces 0327640. |
| 65 |
0313715 |
SCREW, Cap, hex hd, 7/16-14 x 1 |
| 70 |
0331998 |
SCREW, Gearcase to housing |
| 72 |
0331999 |
SCREW, Gearcase housing |
| 73 |
0331353 |
Seal, Impeller Housing Plate. |
| 80 |
0435990 |
IMPELLER HOUSING |
| 82 |
0331188 |
O-Ring |
| 83 |
0330263 |
SCREW, Mounting, 3/8 in. X 3.50 in. |
| 85 |
PROPELLER |
Ref: 86 0332394 *Converging Ring 0332394 |
| 89 |
5006373 |
GEARCASE SEAL KIT This part replaces 0434516. |
| 0435475 |
5004635 |
See Sb 2002-02P This part replaces 0435475. |
