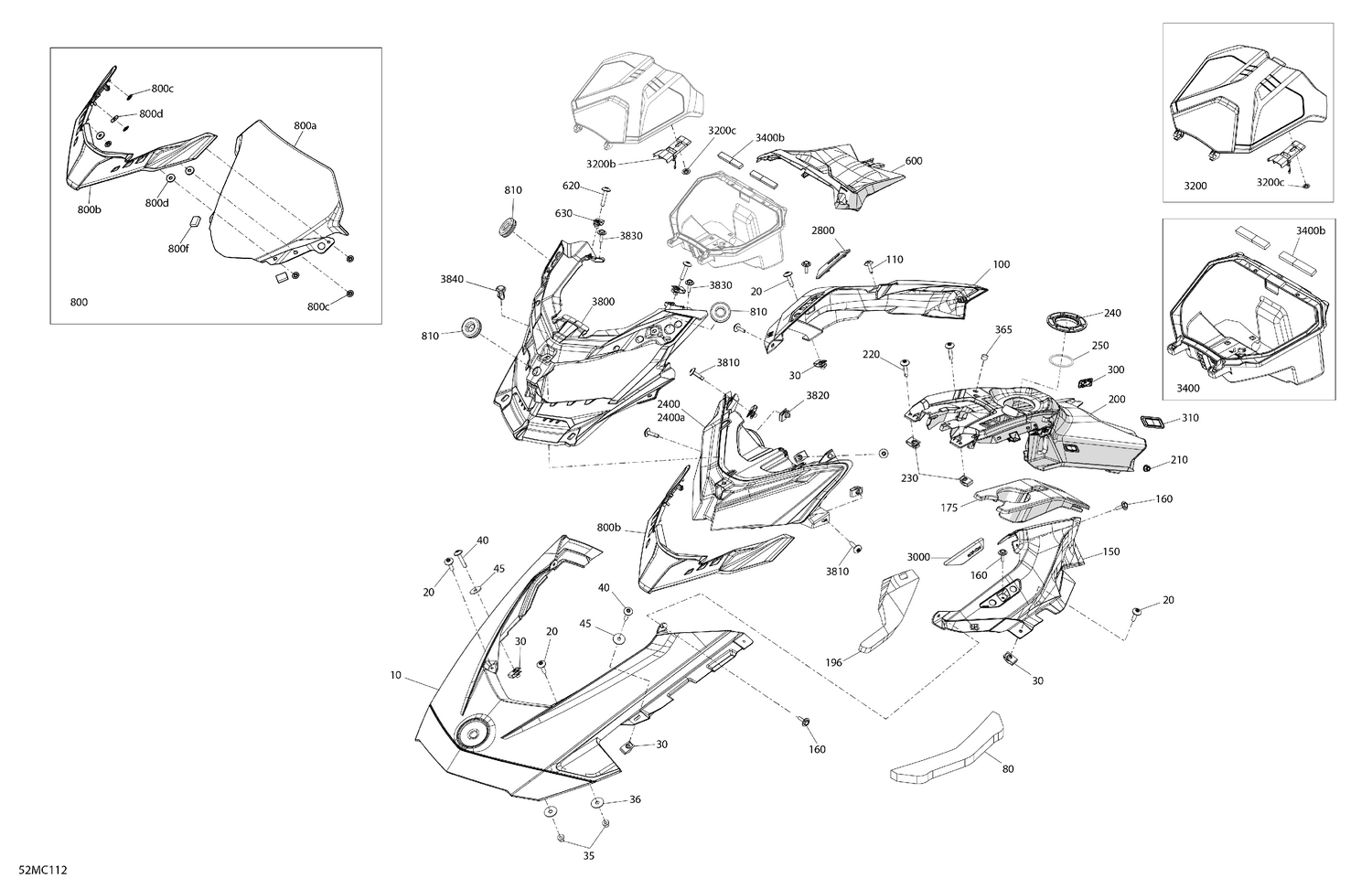

07- Body - Hood — Parts Catalog

Ref	Part Number	Description
10	517307360	Neo Yellow, Front Molded Hood
20	250000528	Torx Screw M5 X 20
30	250000958	Panel Nut M5 X 0.8
35	233151414	Hex. Flange Nut M5
36	250200040	Flat Washer
40	250000587	Torx Screw M5 X 26
45	250200166	Washer
80	517308191	Foam
100	517307361	Neo Yellow, RH Hood
110	250000725	Screw M4 X 16
150	517307362	Neo Yellow, LH Rear Molded Hood
160	250000725	Screw M4 X 16
175	517307745	Console Pad
196	517306002	LH Hood Foam
200	517308120	Deep Black, RH Console
210	233251434	Flange Elastic Nut M5
220	250000587	Torx Screw M5 X 26
230	250000958	Panel Nut M5 X 0.8
240	517306602	Console Nut
250	706002839	O-Ring
300	517306587	RH Cap
310	517306588	LH Cap
365	572051500	Cap
600	517308522	Gauge Support
620	250000586	Torx Truss M5 X 20
630	250000958	Panel Nut M5 X 0.8
800a	517306423	Windshield 360
800b	517305749	Deep Black, Windshield Support
800c	732610072	Push Nut
800d	250200024	Rubber Washer 5 mm
800f	219704476	Gasket, Neoprene 2000Mm Long
810	517303756	Grommet
2400a	415130081	Bulb
2800	517306049	RH Hood Plate
3000	517306050	LH Hood Plate
3200b	517305779	Latch
3200c	732610072	Push Nut
3400b	517305157	Seal Joint
3800	517305746	Deep Black, Headlamp Fairing
3810	250000528	Torx Screw M5 X 20
3820	250000958	Panel Nut M5 X 0.8
3830	250000725	Screw M4 X 16
