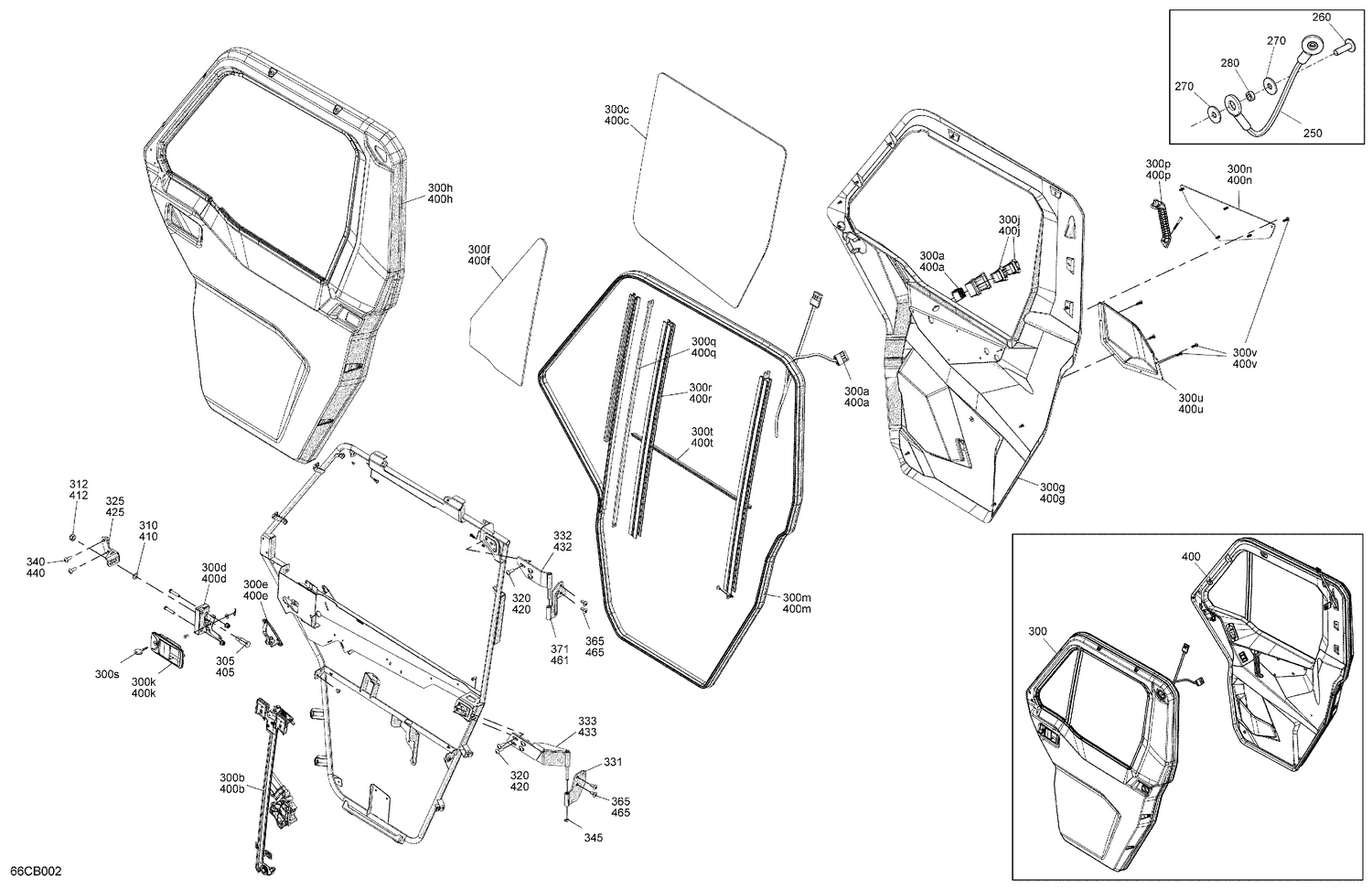

07- Enclosure Cab - Front Doors
Parts (62)
| Ref | Part Number | Description |
|---|---|---|
| 250 | 703500982 | Door Limit Device Kit |
| 260 | 250000722 | Torx Screw M6 X 20 |
| 270 | 234062670 | Stainless Steel Flat Washer |
| 280 | 708300737 | Bushing |
| 300a | 705800047 | Driver Door Harness |
| 300b | 705800594 | LH Window Regulator Ass'y |
| 300c | 705800016 | LH Roll-Down Glass |
| 300d | 703500915 | LH Interior Latch Kit |
| 300e | 705800019 | Inner Paddle Latch |
| 300f | 705800608 | LH A-Pillar Glass |
| 300g | 705800322 | LH Routed Inner Door |
| 300h | 705800665 | LH Ext Door Panel |
| 300j | 710004979 | Window Switch |
| 300k | 705800015 | Exterior Paddle Latch |
| 300m | 705800289 | Seal 705800290 - 5000 MM |
| 300n | 715006687 | LH Door Panel Kit |
| 300p | 705800324 | LH Interior Handle |
| 300q | 705800595 | Window Guide Bracket |
| 300r | 705800590 | Window Guide Extrusion |
| 300s | 705800184 | Key Set |
| 300t | 705800591 | Folcked Beltline Trim 705800294 600mm |
| 300u | 705800604 | LH Door Pocket |
| 300v | 705009405 | Plastic Dart |
| 305 | 705800038 | Striker Bolt |
| 310 | 250200005 | Conical Spring Washer M12 This part replaces 705800368. |
| 312 | 232521416 | Elastic Stop Nut M12 |
| 320 | 250000874 | Torx Truss M8 X 25 |
| 325 | 705801086 | LH Front Striker Support This part replaces 705800350. |
| 331 | 705800482 | Lower Female Door Hinge |
| 332 | 705800340 | LH Upper Male Door Hinge |
| 333 | 705801202 | NEEDS DESCRIPTION This part replaces 705800344. |
| 340 | 250000874 | Torx Truss M8 X 25 |
| 345 | 293370125 | Retaining Ring |
| 365 | 250000953 | Torx Truss M/S M8 X 20 |
| 371 | 705800348 | LH Central Female Door Hinge |
| 400a | 705800050 | Passenger Door Harness |
| 400b | 705800593 | RH Window Regulator Ass'y |
| 400c | 705800025 | RH Roll-Down Glass |
| 400d | 703500916 | RH Interior Latch Kit |
| 400e | 705800019 | Inner Paddle Latch |
| 400f | 705800609 | RH A-Pillar Glass |
| 400g | 705800323 | RH Routed Inner Door |
| 400h | 705800666 | RH Door Panel EXT |
| 400j | 710004979 | Window Switch |
| 400k | 705800015 | Exterior Paddle Latch |
| 400m | 705800289 | Seal 705800290 - 5000 MM |
| 400n | 715006689 | RH Door Panel Kit |
| 400p | 705800325 | RH Interior Handle |
| 400q | 705800595 | Window Guide Bracket |
| 400r | 705800590 | Window Guide Extrusion |
| 400t | 705800591 | Folcked Beltline Trim 705800294 600mm |
| 400u | 705800605 | RH Door Pocket |
| 400v | 705009405 | Plastic Dart |
| 405 | 705800038 | Striker Bolt |
| 410 | 250200005 | Conical Spring Washer M12 This part replaces 705800368. |
| 412 | 232521416 | Elastic Stop Nut M12 |
| 420 | 250000874 | Torx Truss M8 X 25 |
| 425 | 705800351 | RH Front Striker Support |
| 432 | 705800341 | RH Male Upper Door Hinge |
| 433 | 705801188 | NEEDS DESCRIPTION This part replaces 705800345. |
| 440 | 250000874 | Torx Truss M8 X 25 |
| 461 | 705800349 | RH Central Female Door Hinge |
