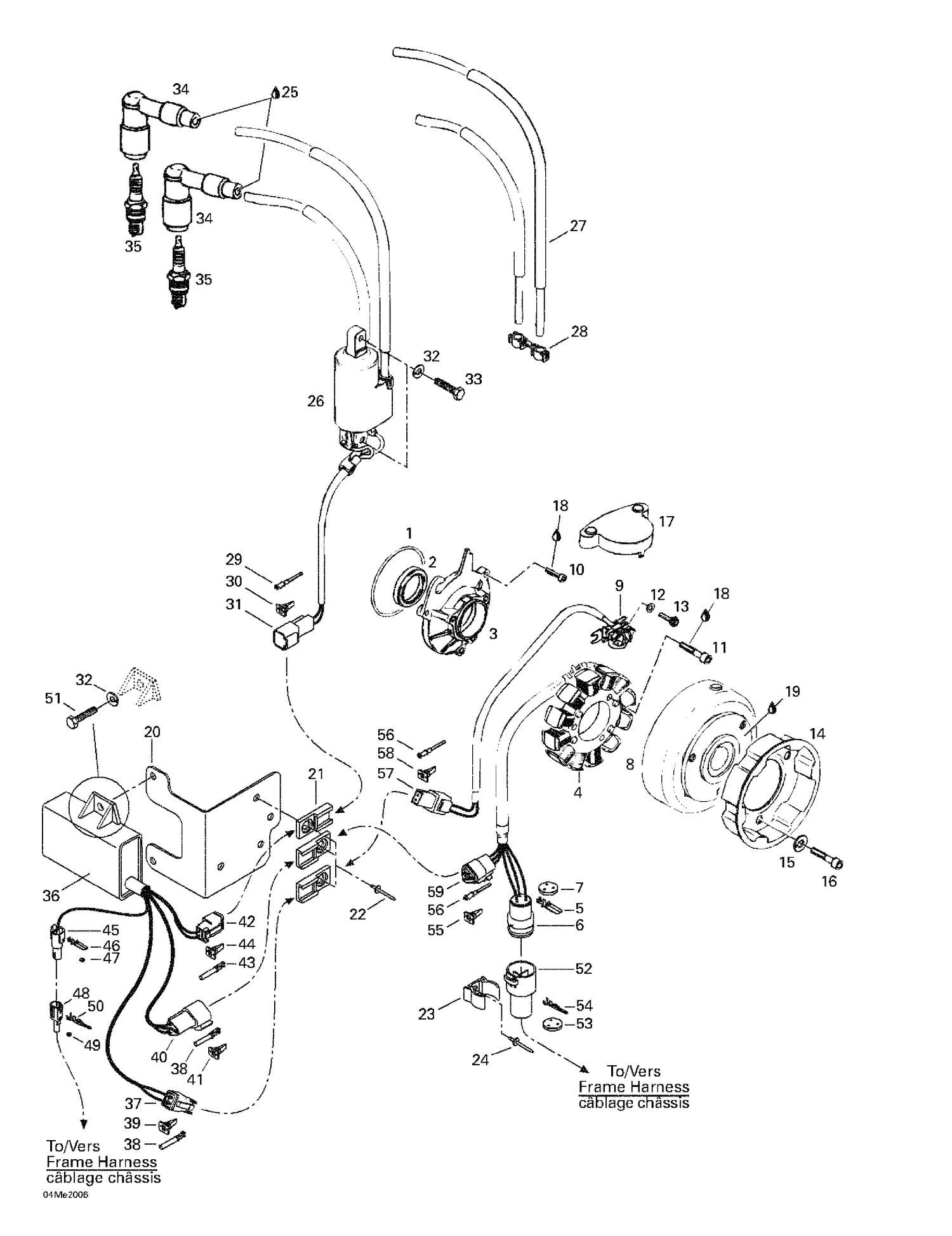

03- Magneto (12V, 220W)

03- Magneto (12V, 220W)

Parts (55)

RefPart NumberDescription
1 420850430 O-RING - Call your local BRP dealership
2 420930695 SEAL-OIL - Call your local BRP dealership
3 420810265 Armature Plate
5 409011900 FEMALE TERMINAL - Call your local BRP dealership
6 409208200 FEMALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership
7 409208500 SEAL - Call your local BRP dealership
8 410922906 Magneto Flywheel
9 420965642 Pick Up Ass'y
10 420941540 SCREW-ALLEN M5X20 DIN.6912 - Call your local BRP dealership
11 420840887 SOCKET HEAD SCREW M6 X 30 - Call your local BRP dealership This part replaces 420840886.
12 420827800 WASHER - Call your local BRP dealership
13 420840514 Allen Screw M5 x 16 This part replaces 420840511.
14 420852590 Starting Pulley This part replaces 420852416.
15 420945832 Washer-Lock Din.128 This part replaces 420945752.
16 420841520 Socket Head Screw M8 X 12
17 420810700 Pick-Up Cover
18 293800060 Loctite 243, 10 ml
19 219703000 Sealant Loctite 648 This part replaces 413711400.
20 515175107 Cable Support
21 270000141 Clip
22 390906400 Pop-Rivets 3/16”
23 415089700 Clip
24 390402500 RIVET_POP 1/8 - Call your local BRP dealership
25 219704453 Was 293550004 Dielectric Grease, 150 g
27 278002198 SPARK PLUG WIRE - Call your local BRP dealership This part replaces 278001268.
28 410914600 Plastic Clip, Spark Plug Wire
29 278000631 Male Terminal
30 409207500 Male Lock, 2 Circuits
31 409206900 Male Housing, 2 Circuits
32 234161471 Lock Washer M6, Black
33 207162044 Hex. Screw M6 X 20
34 278000237 SPARK PLUG CAP - Call your local BRP dealership
35 219703120 Spark Plug NGK BR9ES This part replaces 414961100.
37 409206900 Male Housing, 2 Circuits
38 278000631 Male Terminal
39 409207500 Male Lock, 2 Circuits
40 278002378 Male Housing This part replaces 409207000.
41 409207600 Male Lock, 3 Circuits
42 409207300 Female Connector, 2 Circuits
43 278000632 Female Terminal
44 409207100 FEMALE LOCK, 2 CIRCUITS - Call your local BRP dealership
45 Not Available As Spare Part - Female Connector Housing (1 Circuit)
46 409012100 Female Terminal
47 409012300 Seal
48 409208800 Male Connector Housing (1 Circuit)
49 409012300 Seal
50 409011300 Male Terminal
51 207161644 Hex. Screw M6 X 16
52 409207900 MALE HOUSING - Call your local BRP dealership
53 409208500 SEAL - Call your local BRP dealership
54 409011100 MALE TERMINAL - Call your local BRP dealership
55 409207200 Female Lock
56 278000632 Female Terminal
57 409207300 Female Connector, 2 Circuits
58 409207100 FEMALE LOCK, 2 CIRCUITS - Call your local BRP dealership
