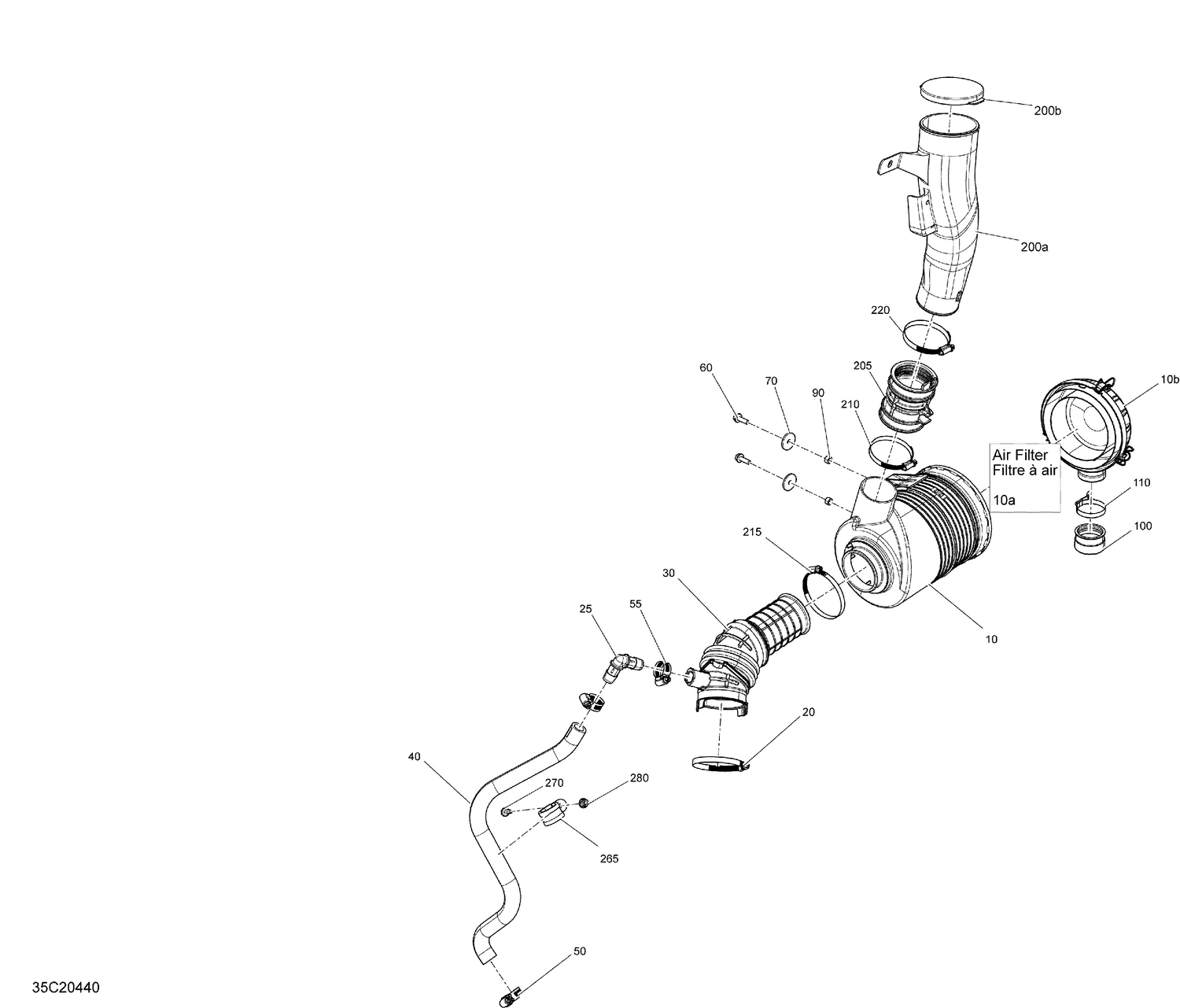

02- Engine - Air Intake
Parts (22)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 707801033 | Intake Silencer Ass'y This part replaces 707800714. |
| 10a | 715900394 | Air Filter |
| 10b | 715900397 | Air Intake Cover |
| 20 | 293650091 | Norma Clamp |
| 25 | 293710155 | Elbow Fitting 90 |
| 30 | 707800834 | Intake Duct |
| 40 | 707801105 | Formed Crankcase Hose This part replaces 707800868. |
| 50 | 293650173 | Tridon Gear Clamp |
| 55 | 293650173 | Tridon Gear Clamp |
| 60 | 207682534 | Hex. Flange Screw M8 X 25 |
| 70 | 250200158 | Flat Washer M8 |
| 90 | 277000980 | Bushing |
| 100 | 707800769 | Vacuator Cap |
| 110 | 293650269 | Turn Key Clamp |
| 200a | 706600280 | Air Inlet Tube This part replaces 706600202. |
| 200b | 293000123 | Cap |
| 205 | 706600203 | Flexible Joint |
| 210 | 293650091 | Norma Clamp |
| 215 | 293650096 | Norma Clamp |
| 220 | 293650091 | Norma Clamp |
| 265 | 709200036 | Hose Anchor |
| 270 | 207662544 | Hex. Flange Screw M6 X 25 |
