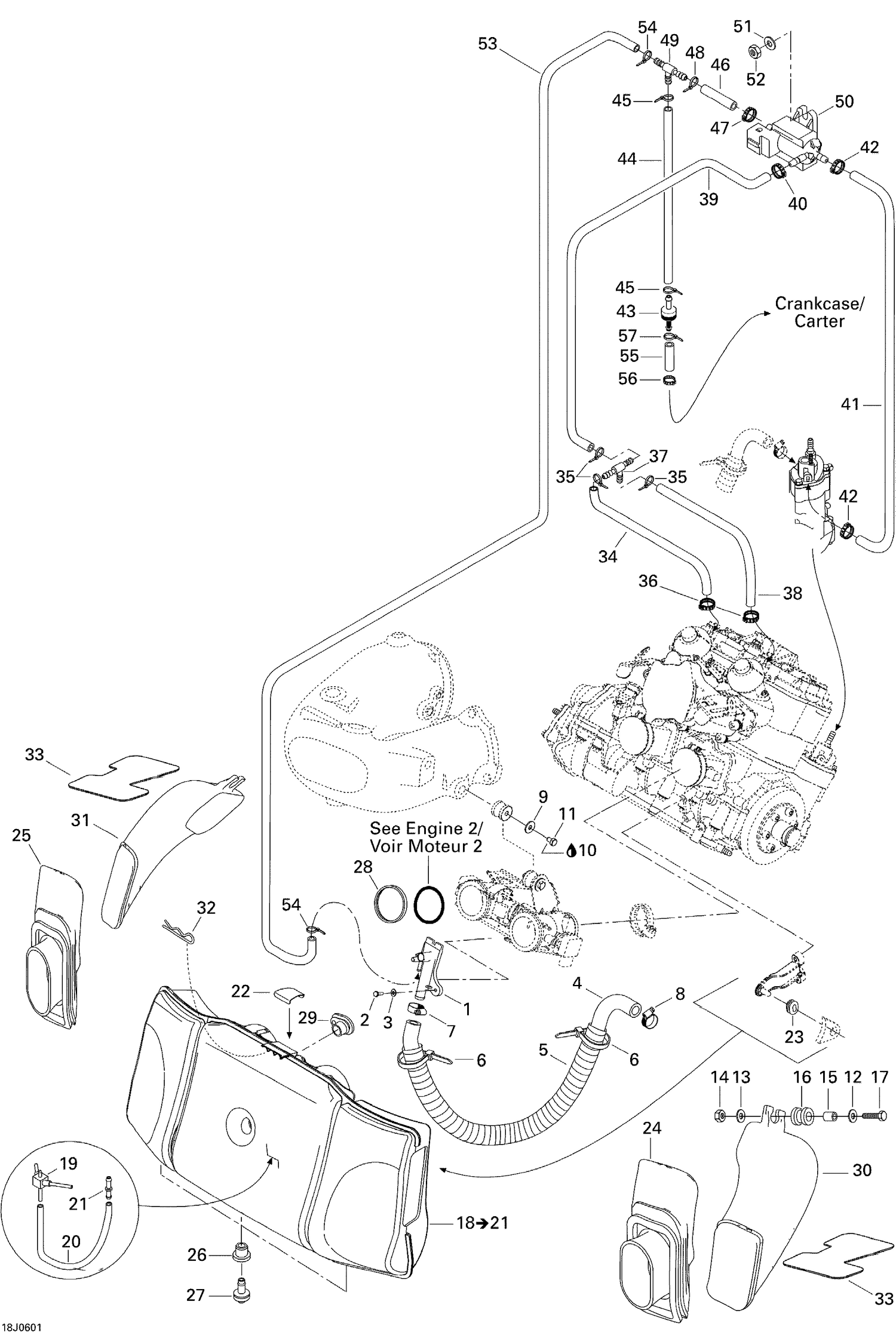

| Ref | Part Number | Description |
|---|
| 1 |
270600023 |
AIR SILENCER ADAPTOR - Call your local BRP dealership |
| 2 |
207341260 |
Hex. Screw M4 X 12, Scotch Grip |
| 3 |
234042600 |
Flat Washer 4 mm, Stainless |
| 4 |
270600021 |
INTAKE HOSE - Call your local BRP dealership |
| 5 |
219704402 |
Tubing 25 MM 1000MM Long |
| 6 |
293750002 |
Tie Wrap 142 mm |
| 7 |
293650172 |
Tridon Gear Clamp |
| 8 |
293650173 |
Tridon Gear Clamp |
| 9 |
234082600 |
Flat Washer 8 mm, Stainless |
| 10 |
293800060 |
Loctite 243, 10 ml |
| 11 |
207181260 |
HEX. SCREW M8 X 12 - Call your local BRP dealership |
| 12 |
234062600 |
Flat Washer M6, Stainless |
| 13 |
234062600 |
Flat Washer M6, Stainless |
| 14 |
232561600 |
Hex. Elastic Stop Nut M6 |
| 15 |
272000074 |
SPACER - Call your local BRP dealership |
| 16 |
278001260 |
UPPER INSULATOR - Call your local BRP dealership |
| 17 |
207063560 |
Hex. Screw M6 X 35 |
| 19 |
Not |
Available As Spare Part - Injector Ass'y |
| 20 |
219704709 |
NEEDS DESCRIPTION This part replaces 219704409. |
| 21 |
293710107 |
CONNECTOR - Call your local BRP dealership This part replaces 273000181. |
| 22 |
273000204 |
SUPPORT PLATE - Call your local BRP dealership |
| 23 |
293720052 |
Cable Grommet |
| 24 |
273000163 |
INTAKE ADAPTOR, PTO - Call your local BRP dealership |
| 25 |
273000164 |
INTAKE ADAPTOR, MAG - Call your local BRP dealership |
| 26 |
293720064 |
GROMMET - Call your local BRP dealership |
| 27 |
275500454 |
CHECK VALVE - Call your local BRP dealership |
| 28 |
293250122 |
Gasket |
| 29 |
270600024 |
FEMALE ADAPTOR - Call your local BRP dealership |
| 30 |
273000151 |
HIGH AIR DUCT, PTO - Call your local BRP dealership |
| 31 |
273000150 |
High Air Duct, Mag |
| 32 |
250400015 |
HAIR PIN - Call your local BRP dealership |
| 33 |
273000165 |
PROTECTOR PAD - Call your local BRP dealership |
| 34 |
270000471 |
HOSE 4.3 MM - Call your local BRP dealership |
| 35 |
293750001 |
Tie Wrap 94 mm |
| 36 |
293650100 |
Oetiker Clamp |
| 37 |
293710068 |
T-Fitting |
| 38 |
270000471 |
HOSE 4.3 MM - Call your local BRP dealership |
| 39 |
270000471 |
HOSE 4.3 MM - Call your local BRP dealership |
| 40 |
293650100 |
Oetiker Clamp |
| 41 |
270000471 |
HOSE 4.3 MM - Call your local BRP dealership |
| 42 |
293650100 |
Oetiker Clamp |
| 43 |
275500398 |
Check Valve |
| 44 |
219704352 |
Was 420660574 Pressure Hose 280 mm |
| 45 |
293750001 |
Tie Wrap 94 mm |
| 46 |
219704352 |
Was 420660574 Pressure Hose 280 mm |
| 47 |
293650100 |
Oetiker Clamp |
| 48 |
293750001 |
Tie Wrap 94 mm |
| 49 |
293710068 |
T-Fitting |
| 50 |
270600044 |
SOLENOID VALVE - Call your local BRP dealership |
| 51 |
234051600 |
Flat Washer M5, Stainless |
| 52 |
232551600 |
Hex. Elastic Nut M5 |
| 53 |
219704352 |
Was 420660574 Pressure Hose 280 mm |
| 54 |
293750001 |
Tie Wrap 94 mm |
| 55 |
219704352 |
Was 420660574 Pressure Hose 280 mm |
| 56 |
293650100 |
Oetiker Clamp |
