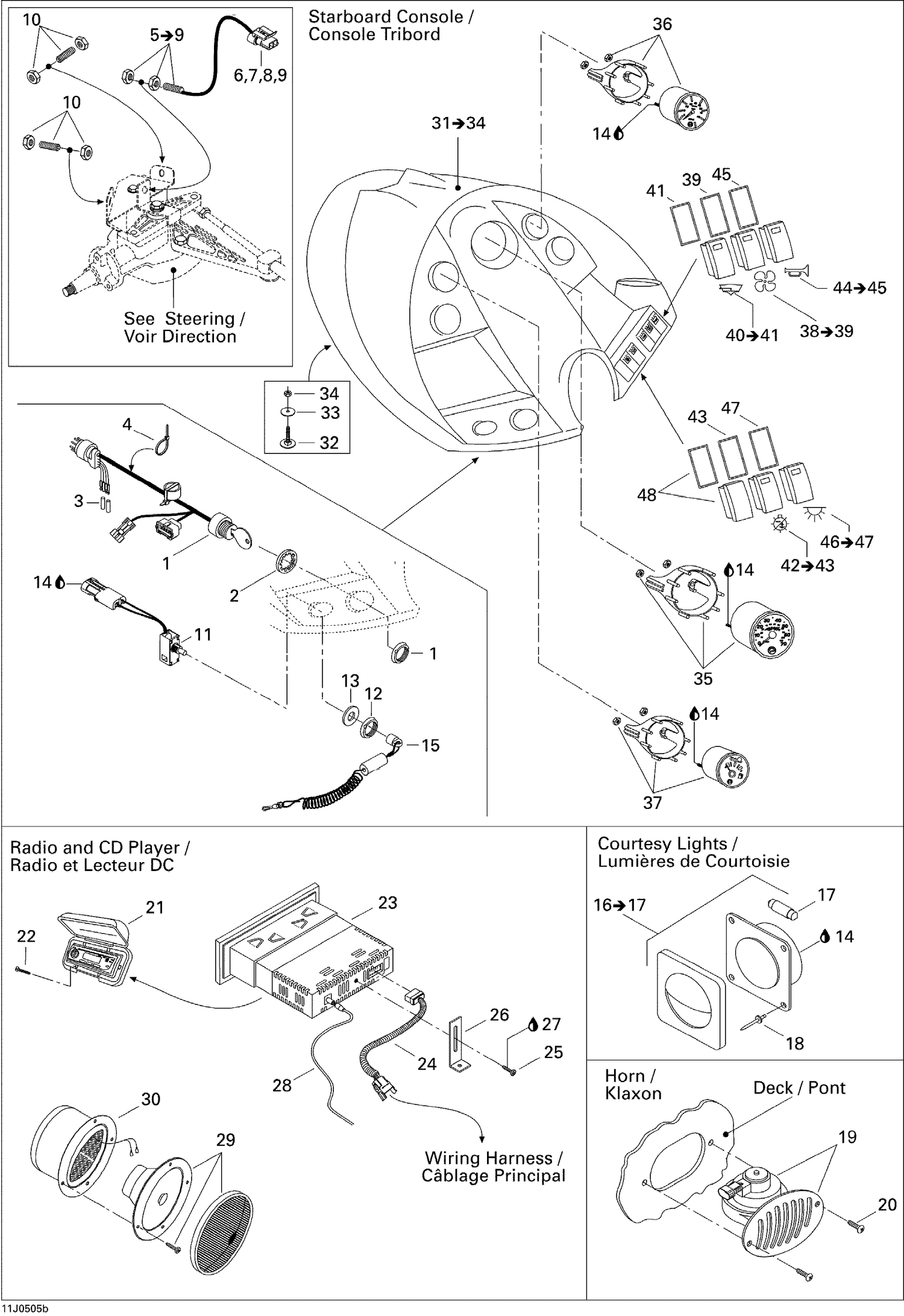

10- Electrical Accessories 2
Parts (38)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 204470800 | Instrument Harness, Mercury |
| 2 | 204100085 | Internal Tooth Lock Washer 1" |
| 3 | 204130033 | RUBBER CAP - Call your local BRP dealership |
| 4 | 293750001 | Tie Wrap 94 mm |
| 6 | 204470634 | Female Terminal Housing |
| 7 | 204470635 | Terminal Support |
| 8 | 204470641 | Wire Seal |
| 9 | 278001481 | Female Terminal |
| 10 | 204470632 | Low Speed Control Actuator |
| 11 | 204470867 | SAFETY SWITCH ASS'Y - Call your local BRP dealership |
| 12 | 278000099 | Safety Switch Nut |
| 13 | 204100027 | FLAT WASHER - Call your local BRP dealership |
| 14 | 219704453 | Was 293550004 Dielectric Grease, 150 g |
| 15 | 278001431 | Safety Lanyard |
| 17 | 204470081 | BULB - Call your local BRP dealership |
| 18 | 293150032 | RIVET_POP 1/8 X ,487 - Call your local BRP dealership |
| 19 | 204470801 | HORN - Call your local BRP dealership |
| 20 | 209943260 | Phillips Tapping Screw M4.2 X 32 |
| 21 | 204470894 | RADIO CD PLAYER COVER - Call your local BRP dealership |
| 22 | 209642560 | PHILLIPS SCREW M4.2 X 25 - Call your local BRP dealership |
| 23 | 204470946 | Compact Disk Stereo |
| 24 | 204470930 | Stereo Adaptor Harness |
| 25 | 204100148 | Pan Head Screw M5x8 |
| 27 | 293800060 | Loctite 243, 10 ml |
| 28 | 204470931 | Antenna |
| 29 | 204470948 | Speaker, White |
| 30 | 204470982 | SPEAKER COVER ASS'Y - Call your local BRP dealership |
| 32 | 204000130 | Elevator Bolt |
| 33 | 204100089 | FLAT WASHER 9/32? - Call your local BRP dealership |
| 34 | 211100026 | HEX. NUT 1/4 - Call your local BRP dealership |
| 35 | 204470943 | Speedometer |
| 36 | 204470944 | Tachometer |
| 37 | 204470945 | FUEL/OIL GAUGE - Call your local BRP dealership |
| 39 | 204470132 | Gasket |
| 41 | 204470132 | Gasket |
| 43 | 204470132 | Gasket |
| 45 | 204470132 | Gasket |
| 47 | 204470132 | Gasket |
