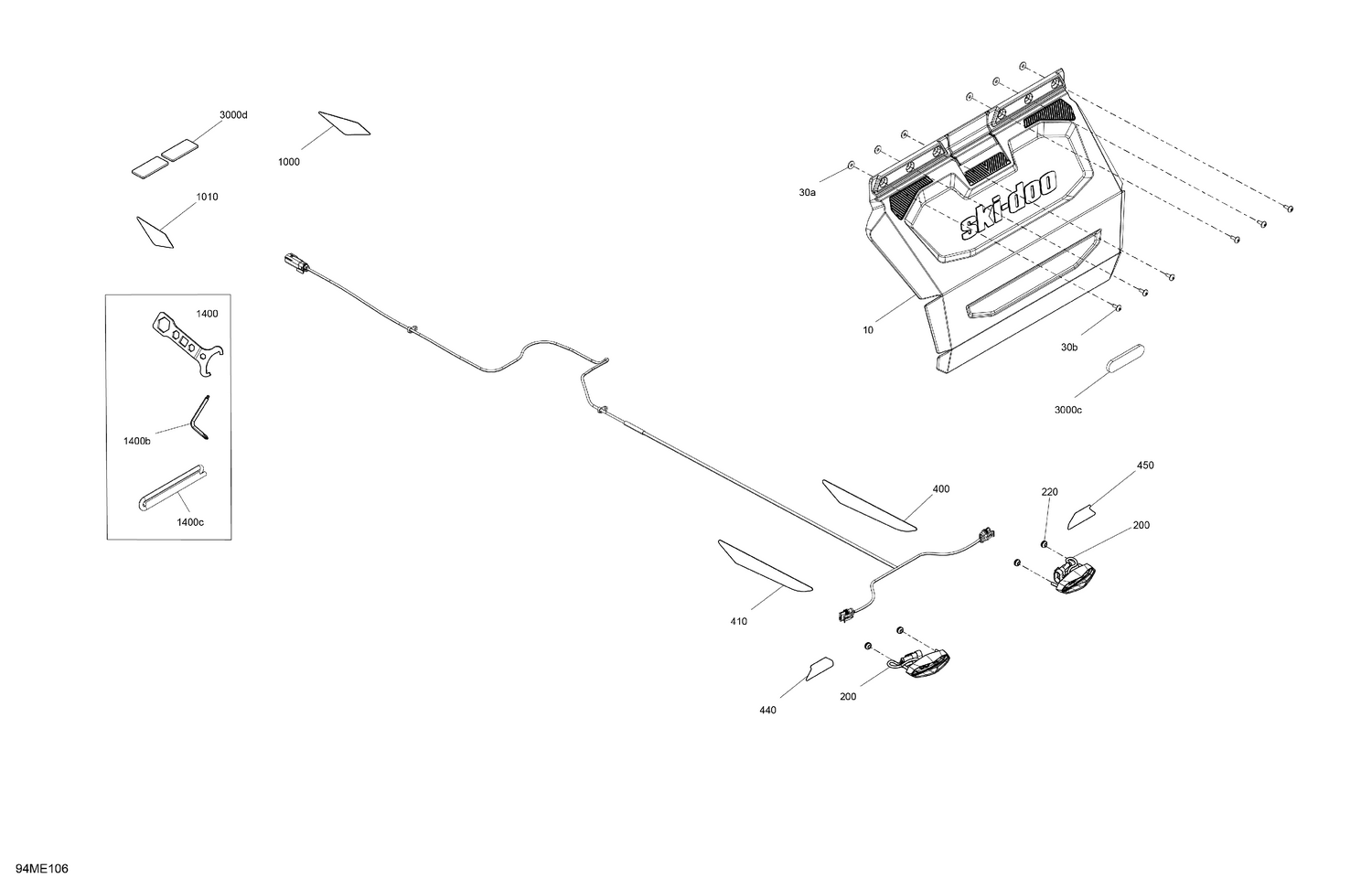

09- Miscellaneous - Utilities
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 520002056 | Snow Guard |
| 30a | 250200025 | Washer M5 |
| 30b | 250000676 | Forming Screw M5 x 16 |
| 200 | 520003071 | Taillight |
| 220 | 293720101 | Grommet |
| 400 | 861805523 | Yellow, LH/RH Rear Reflector Kit |
| 410 | 861805523 | Yellow, LH/RH Rear Reflector Kit |
| 440 | 520001740 | LH Rear Red Reflector |
| 450 | 520002016 | RH Rear Red Reflector |
| 1000 | 520002343 | RH Front Reflector |
| 1010 | 520002344 | LH Front Reflector |
| 1400b | 520001815 | Key |
| 1400c | 529017500 | Rope Starter |
| 3000c | 705015551 | Red, Reflector |
