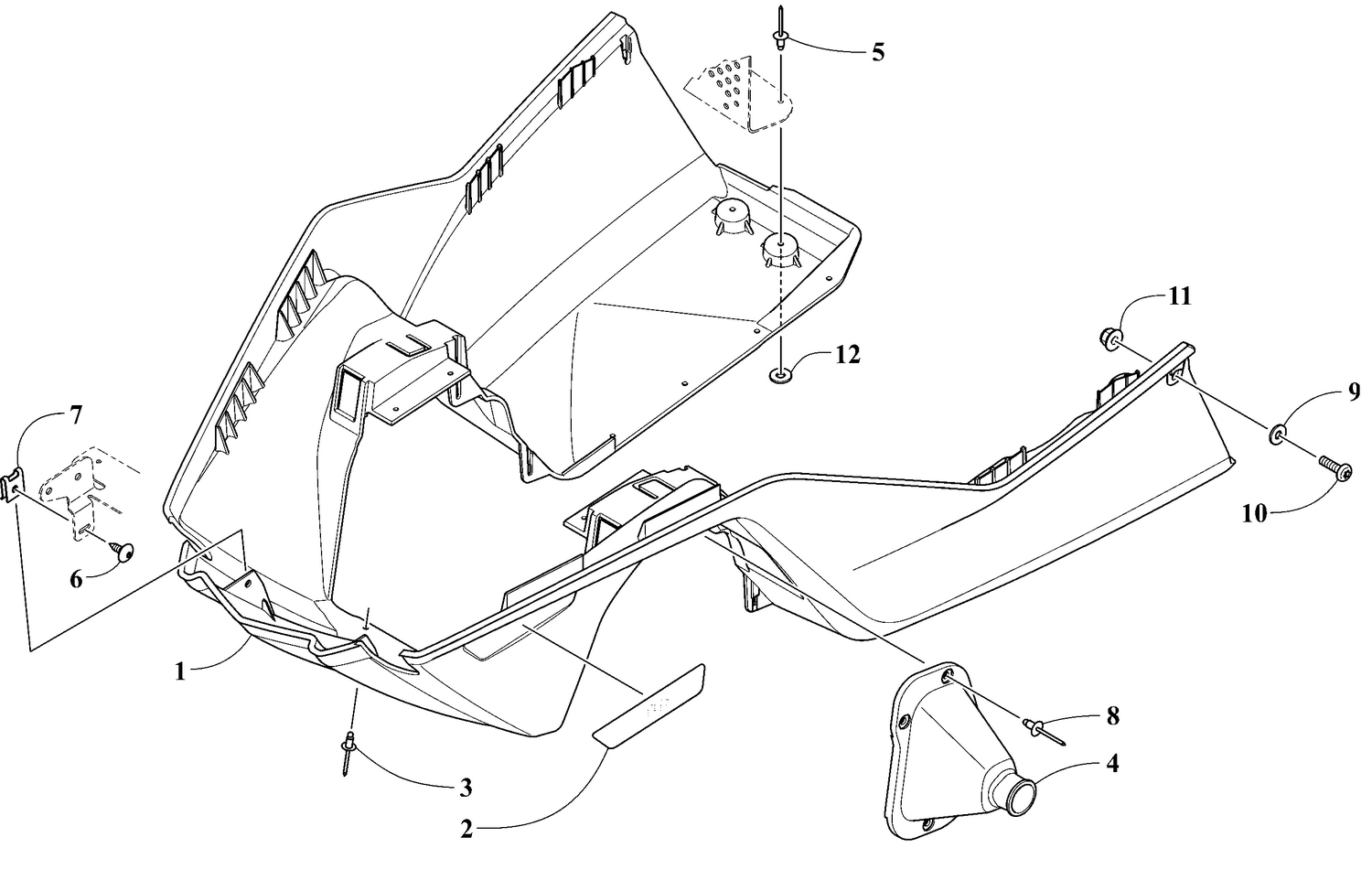

Bottom Pan
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 6718-460 | Belly Pan W/Reflectors |
| 2 | 4621-357 | Decal |
| 3 | 8061-506 | Black, Rivet |
| 4 | 0605-464 | RH Tie Rod Boot |
| 4 | 0605-465 | LH Tie Rod Boot |
| 5 | 8061-508 | Black, Rivet |
| 6 | 2623-166 | Self Tapping Screw |
| 7 | 1623-939 | Type U Nut |
| 8 | 8060-508 | Black, Rivet |
| 9 | 2623-266 | Washer #10 X.557 |
| 10 | 8468-535 | Black, Screw M5X0.8X35 |
| 11 | 8427-502 | Hex Flange Nut M5X0.8 |
