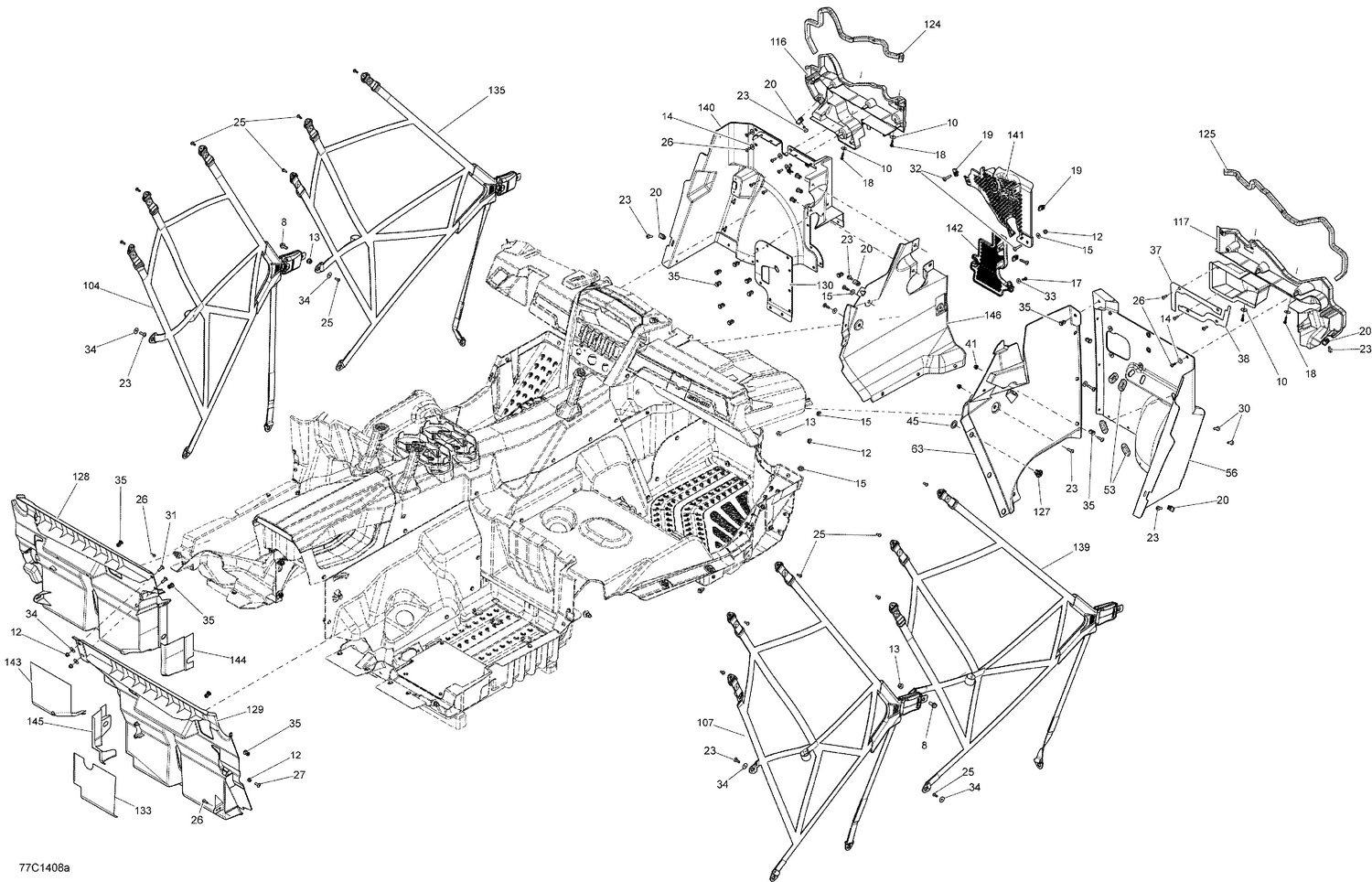

09- Cab Interior Front And Rear
Parts (44)
| Ref | Part Number | Description |
|---|---|---|
| 8 | 207682044 | Hex. Flange Screw M8 X 20 |
| 10 | 224060201 | Flat Washer |
| 12 | 233261494 | Hex. Flange Elastic Nut M6 |
| 13 | 233281414 | Hex. Flange Elastic Nut M8 |
| 14 | 234062410 | Flat Washer 6 mm |
| 15 | 234062670 | Stainless Steel Flat Washer |
| 17 | 241151640 | Hex. Flange Screw K50 X 2.24 X 16 |
| 18 | 241152060 | Hex. Flange Screw K50 X 20 |
| 19 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000048. |
| 20 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000048. |
| 23 | 250000722 | Torx Screw M6 X 20 This part replaces 250000128. |
| 25 | 250000742 | Torx Screw M5 X 14 This part replaces 250000145. |
| 26 | 250000720 | Torx Screw K50 X 16 This part replaces 250000146. |
| 27 | 241152060 | Hex. Flange Screw K50 X 20 |
| 30 | 250000770 | Hex. Socket Screw M6 X 20 This part replaces 250000335. |
| 31 | 250000350 | Torx Truss Screw M6 X 20 |
| 32 | 250000843 | Torx Truss Screw M6 X 30 This part replaces 250000398. |
| 33 | 250200025 | Washer M5 |
| 34 | 250200040 | Flat Washer |
| 35 | 293150230 | Tuflok Plastic Rivet This part replaces 293150089. |
| 37 | 293250252 | Upper Seal |
| 38 | 293250253 | Bottom Seal |
| 41 | 250100242 | Threaded Insert M6 X 1.0 This part replaces 293450274. |
| 45 | 503189273 | Washer |
| 53 | 705003668 | Oblong Grommet |
| 56 | 707900004 | RH Front Floor |
| 63 | 707900021 | RH Fixe Side Console |
| 116 | 707900561 | Floor Support LH This part replaces 707900113. |
| 117 | 707900562 | RIGHT FLOOR SUPPORT - Call your local BRP dealership This part replaces 707900114. |
| 124 | 219704365 | Was 293200017 Neoprene Seal |
| 125 | 219704365 | Was 293200017 Neoprene Seal |
| 127 | 707900133 | Insert |
| 128 | 707900139 | DEFLECTOR_BODY PANEL REAR L - Call your local BRP dealership |
| 129 | 707900140 | DEFLECTOR_BODY PANEL FR - Call your local BRP dealership |
| 130 | 707900152 | DEFLECTOR - Call your local BRP dealership |
| 133 | 707900167 | Heat Shield |
| 135 | 707900237 | Front LH Safety Net This part replaces 707900171. |
| 139 | 707900238 | Front RH Safety Net This part replaces 707900172. |
| 140 | 707900175 | LH Front Upper Floor |
| 141 | 707900178 | Grille |
| 142 | 707900180 | Grille |
| 143 | 707900182 | Heat Shield |
| 144 | 707900183 | Heat Shield |
| 145 | 707900184 | Heat Shield |
