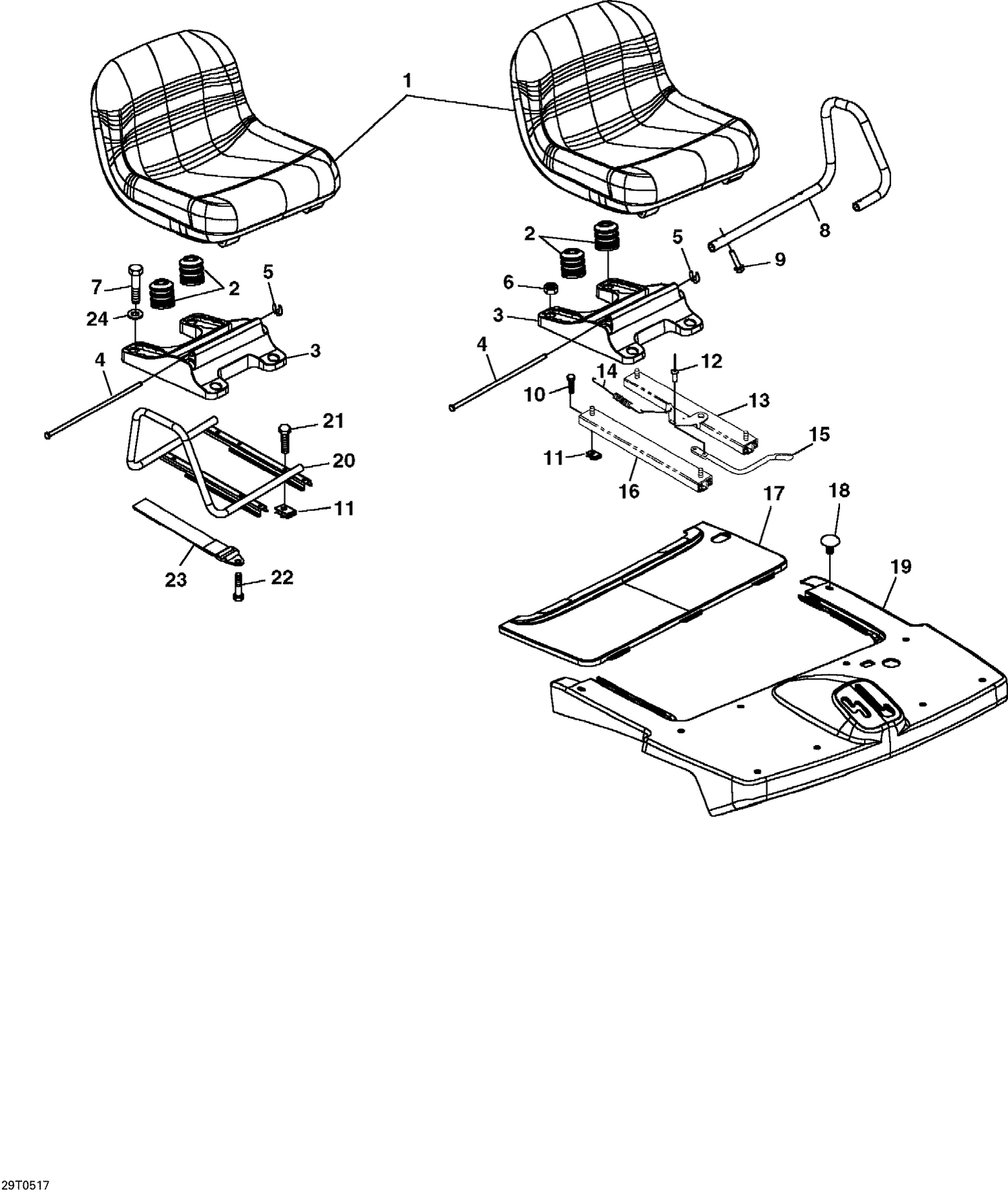

09- Seat
Parts (23)
| Ref | Part Number | Description |
|---|---|---|
| 1 | DAM133955 | Seat |
| 2 | DM146683 | Spring |
| 3 | DM127976 | Seat Support |
| 4 | DM132948 | Fastener Pin |
| 5 | DM134332 | Snap Ring |
| 6 | D14M7396 | Nut M8 |
| 7 | D37M7058 | Hex. Screw M8X20 |
| 8 | DVG12119 | Seat Support |
| 9 | D19M7897 | Hex. Flange Screw M8X35 |
| 10 | DM141748 | Hex. Screw M8X16 |
| 11 | DM84971 | Clamp-On Nut M8 |
| 12 | DM63200 | Pop Rivet |
| 13 | DVGA10502 | Adjuster |
| 14 | Not | Available As Spare Part - Spring |
| 15 | DM131124 | Rod |
| 16 | DVGA10501 | Adjuster |
| 17 | DVG11328 | Panel |
| 18 | DM150273 | Plug |
| 19 | DVG10418 | Panel |
| 20 | DVGA10924 | Seat Support |
| 21 | D19M7897 | Hex. Flange Screw M8X35 |
| 22 | DM78508 | Hex. Screw M8 |
| 23 | DVG12173 | Strap |
