Home / BRP / EVINRUDE / 2000 / 90 / RE90FPLSSR FFI, Elec Start, TNT, 20 IN. shaft 2000 / 10- Electrical Accessories 2

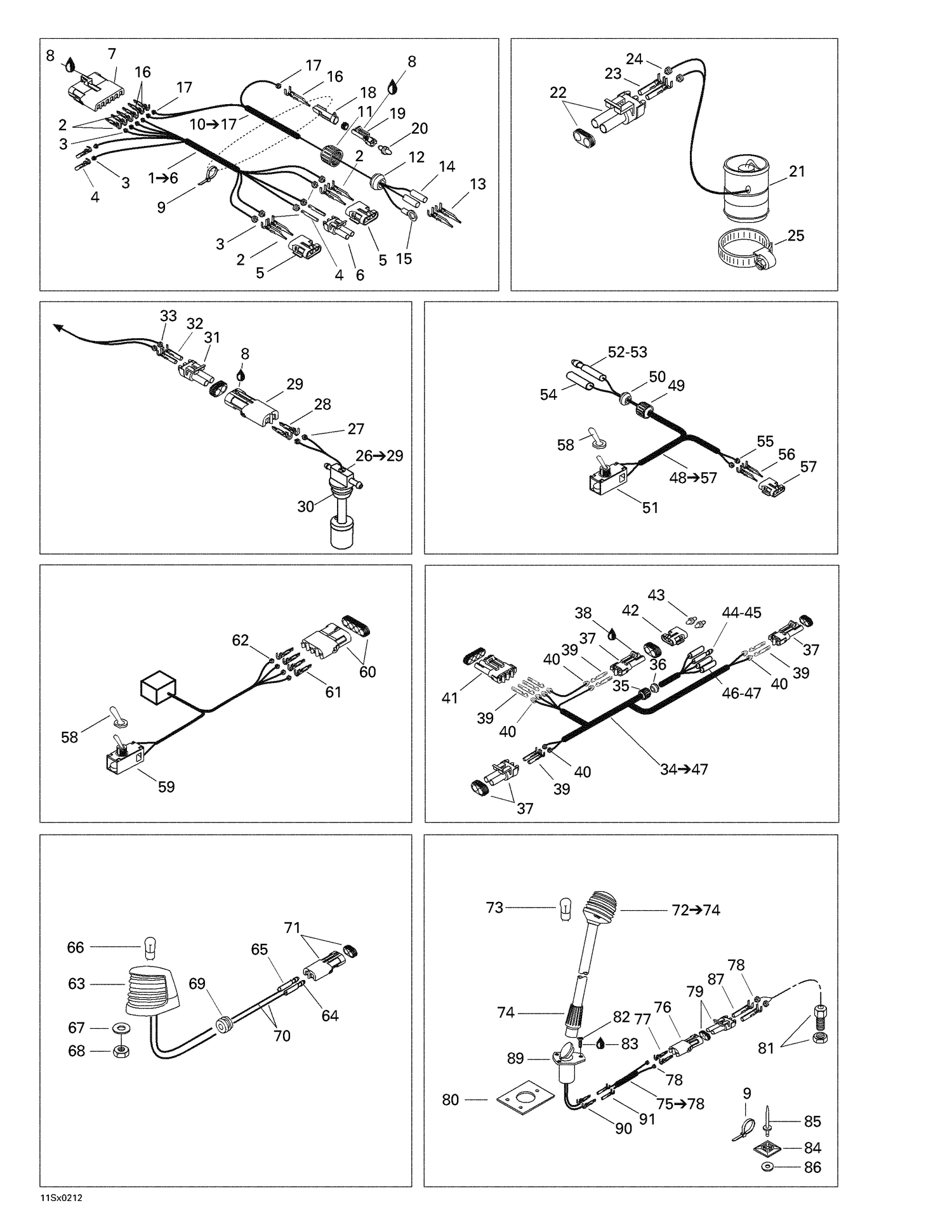

10- Electrical Accessories 2

10- Electrical Accessories 2

Parts (78)

RefPart NumberDescription
2 278000222 Male Terminal
3 278000218 Wire Seal
4 278000223 Female Terminal
5 278000217 Female Housing, 2 Circuits
6 278000220 Male Connector, 2 Circuits
7 278000156 FEMALE CONNECTOR, 6 CIRCUITS - Call your local BRP dealership
8 219704453 Was 293550004 Dielectric Grease, 150 g
9 293750002 Tie Wrap 142 mm
11 278000100 Electric Wire Cap
12 278000193 GROMMET, 3 CIRCUIT, BLACK - Call your local BRP dealership
13 278000230 Male Terminal
14 278000231 Insulation Sheath
15 278000300 Ring Terminal
16 278000222 Male Terminal
17 278000218 Wire Seal
18 278000161 Female Housing, 1 Circuit
19 278000219 CONNECTOR_MALE 1 CAVITY - Call your local BRP dealership
20 278000216 Wire Seal
22 278000220 Male Connector, 2 Circuits
23 278000223 Female Terminal
24 278000218 Wire Seal
25 293650054 Tridon Clamp
27 278000218 Wire Seal
28 278000222 Male Terminal
29 278000217 Female Housing, 2 Circuits
30 293720008 Grommet
31 278000220 Male Connector, 2 Circuits
32 278000223 Female Terminal
33 278000218 Wire Seal
35 278000100 Electric Wire Cap
36 570026800 Grommet, 4 Circuit, Red
37 278000220 Male Connector, 2 Circuits
38 219704453 Was 293550004 Dielectric Grease, 150 g
39 278000223 Female Terminal
40 278000218 Wire Seal
41 278000395 Male Housing, 4 Circuits
42 278000217 Female Housing, 2 Circuits
43 278000216 Wire Seal
44 278001008 Insulated Sheath
45 278000230 Male Terminal
46 278001007 Insulated Sheath
47 278001009 Female Terminal
49 278000100 Electric Wire Cap
50 293720025 GROMMET, 2 CIRCUIT, GRAY - Call your local BRP dealership
51 278000349 Toggle Switch
52 278001008 Insulated Sheath
53 278000230 Male Terminal
54 278001007 Insulated Sheath
55 278000218 Wire Seal
56 278000222 Male Terminal
57 278000217 Female Housing, 2 Circuits
58 204000011 Cap-Fan Switch/Lights
59 278000605 Light Switch Ass'y (Incl. It. 2 4)
60 278000394 FEMALE HOUSING, 4 CIRCUITS - Call your local BRP dealership
61 278000222 Male Terminal
62 278000218 Wire Seal
64 278000230 Male Terminal
65 278000231 Insulation Sheath
66 278000765 Bulb Front Lamp
67 234041600 Flat Washer 4 mm, Stainless
68 232041600 NUT-HEXAGONAL DIN.934A2 - Call your local BRP dealership
69 293720015 GROMMET - Call your local BRP dealership
71 278000217 Female Housing, 2 Circuits
73 204470053 Bulb
74 204470350 COLLAR - Call your local BRP dealership
76 278000217 Female Housing, 2 Circuits
77 278000222 Male Terminal
79 278000220 Male Connector, 2 Circuits
80 204470650 Retainer Plate
81 293710031 ELECTRIC CONNECTION - Call your local BRP dealership
82 208442060 PHILLIPS SCREW M4 X 20 - Call your local BRP dealership
83 219704457 ADHESIVE LOCTITE 425 20ML - Call your local BRP dealership
84 293750015 TIE RAP MOUNT - Call your local BRP dealership
85 293150016 Rivet 1/8"
86 234032600 Flat Washer M3, Stainless
87 278000223 Female Terminal
89 204470649 Rear Lamp Base
90 204470651 Male Terminal
