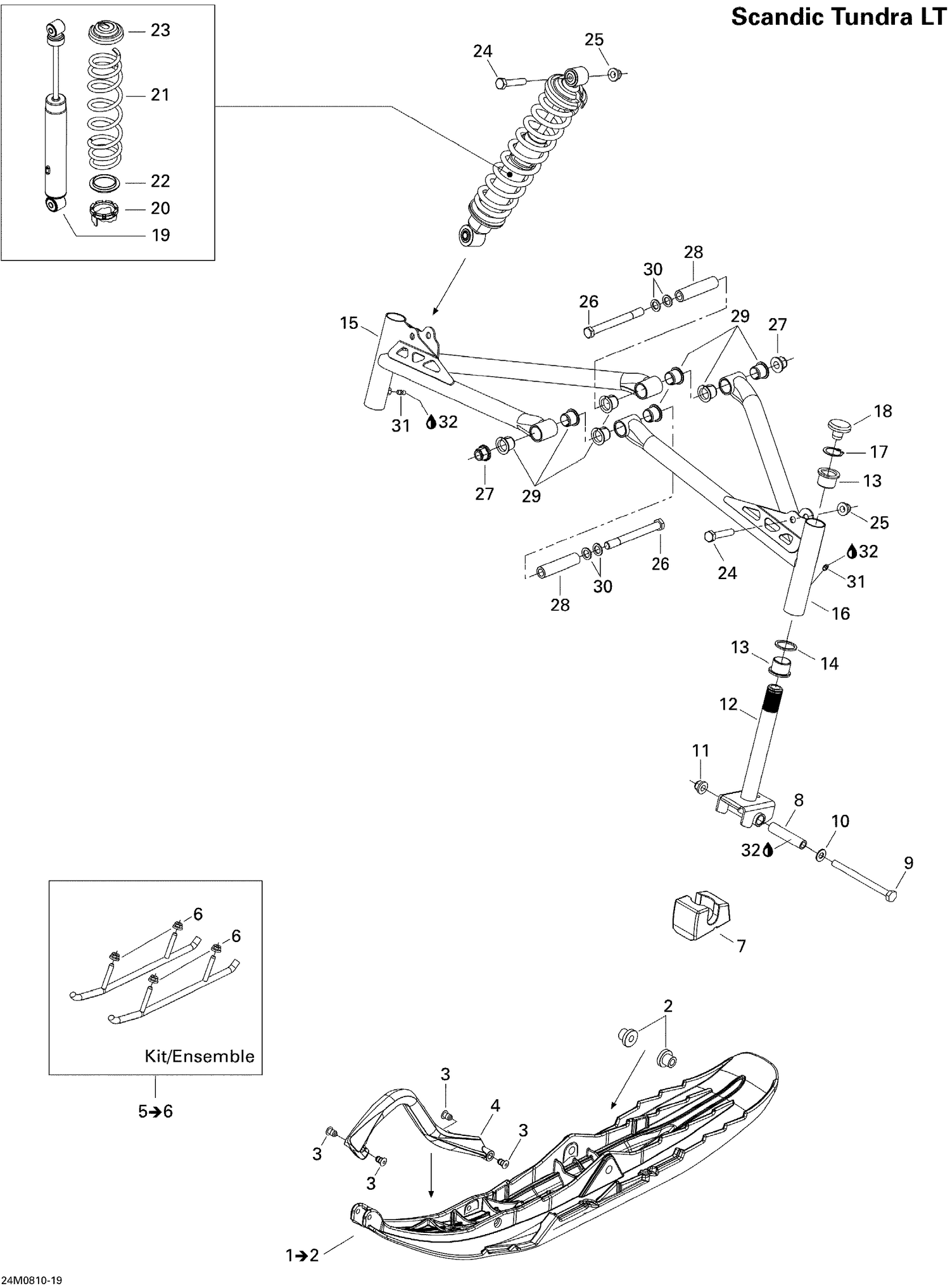

07- Front Suspension And Ski
Parts (29)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 505071781 | Ski Bushing |
| 3 | 505071812 | Retainer 17mm long |
| 4 | 505070963 | Black, Handle |
| 6 | 233281414 | Hex. Flange Elastic Nut M8 |
| 7 | 505072018 | SKI STOPPER - Call your local BRP dealership |
| 8 | 506133300 | Spacer |
| 9 | 250000703 | Hex. Screw M10 X 130 This part replaces 230003044. |
| 10 | 234001410 | Flat Washer 10 mm |
| 11 | 233201414 | Hex. Flange Elastic Nut M10 |
| 12 | 505072001 | SKI LEG - Call your local BRP dealership |
| 13 | 505070003 | Cushion |
| 14 | 505070004 | WASHER - Call your local BRP dealership |
| 15 | 505071739 | RH LOWER ARM - Call your local BRP dealership |
| 16 | 505071740 | LH LOWER ARM - Call your local BRP dealership |
| 17 | 371910400 | CIRCLIP - Call your local BRP dealership |
| 18 | 572091300 | Cap |
| 19 | 505072258 | FRONT SHOCK - Call your local BRP dealership |
| 20 | 505073625 | Adjustment Cam This part replaces 503183700. |
| 21 | 505071833 | SPRING - Call your local BRP dealership |
| 22 | 503187500 | Spring Guide |
| 23 | 706200881 | Spring Stopper This part replaces 503140600. |
| 24 | 207005544 | Hex. Screw M10 X 55 |
| 25 | 233201414 | Hex. Flange Elastic Nut M10 |
| 26 | 230022044 | HEX. SCREW M12 X 120 - Call your local BRP dealership |
| 27 | 233221414 | Hex. Flange Elastic Nut M12 |
| 28 | 505071366 | BUSHING - Call your local BRP dealership |
| 29 | 505072094 | BUSHING - Call your local BRP dealership |
| 30 | 503189276 | Washer |
| 31 | 408200700 | Grease Fitting |
