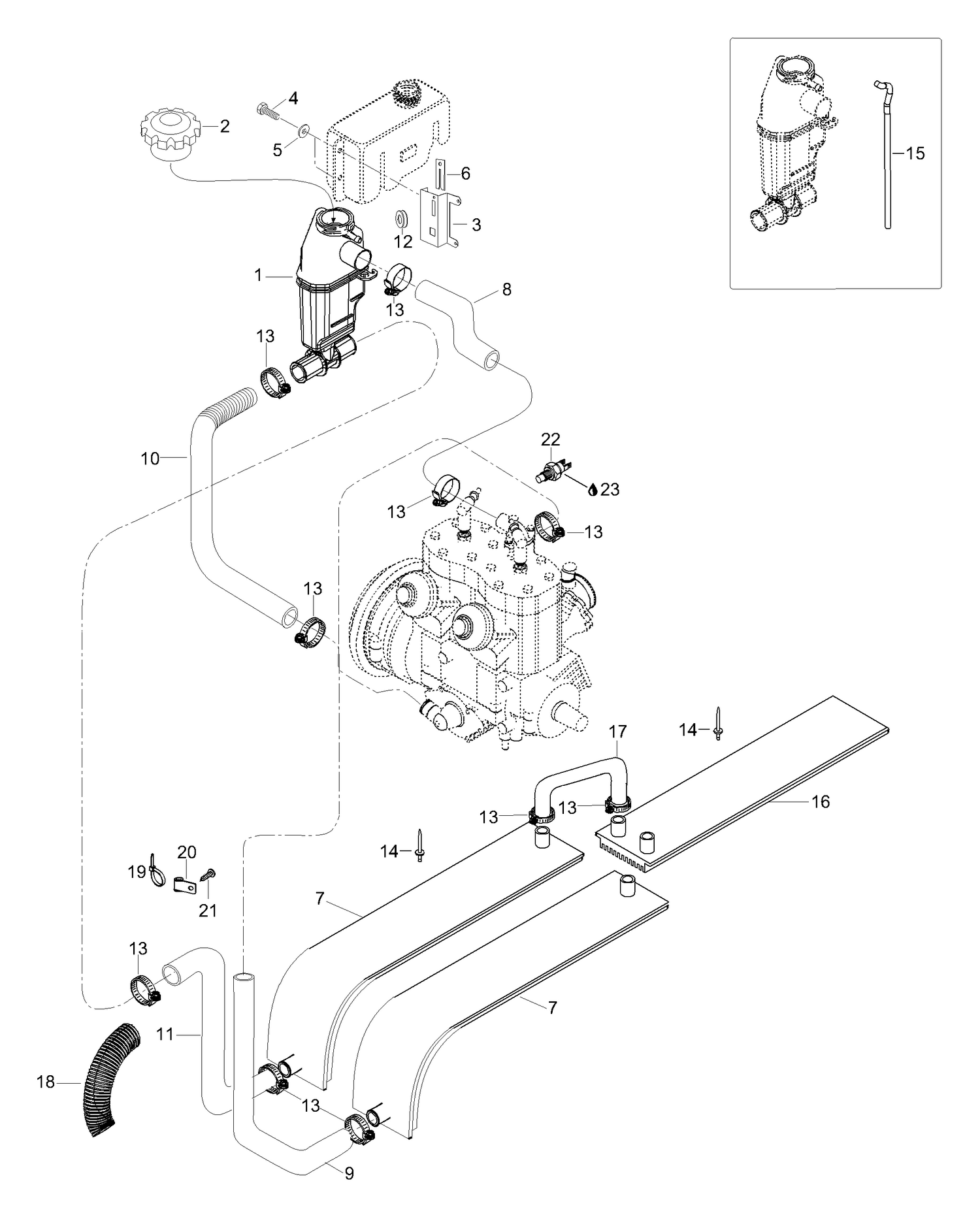

| Ref | Part Number | Description |
|---|
| 1 |
509000134 |
Coolant tank |
| 2 |
509000187 |
Pressure Cap This part replaces 414684700. |
| 3 |
5347031 |
Support, coolant tank |
| 4 |
40322 |
SELF TAPPING SCREW M6 X 16 - Call your local BRP dealership |
| 5 |
234062410 |
Flat Washer 6 mm This part replaces 20009. |
| 6 |
5447032 |
Support plate |
| 7 |
5146385 |
R.H. radiator |
| 7 |
5146386 |
RADIATOR LH - Call your local BRP dealership |
| 8 |
5348268 |
Hose, tank->engine |
| 9 |
5346201 |
Hose, engine->radiator |
| 10 |
5343357 |
Hose, engine->tank |
| 11 |
5347311 |
Hose, tank->radiator |
| 12 |
28022 |
Grommet |
| 13 |
27003 |
Clamp |
| 14 |
36489 |
Rivet TSPD68 4.8x12 (1 PAC <=> 50 PC) - Call your local BRP dealership |
| 15 |
39038 |
Overflow hose |
| 16 |
5345916 |
Back radiator |
| 17 |
5445970 |
Hose |
| 18 |
390003 |
Tubing |
| 19 |
293750008 |
Tie-Rap 368 mm This part replaces 27100. |
| 20 |
27011 |
Clamp |
| 21 |
40327 |
Screw M6x12 |
| 22 |
512047000 |
Sensor temp |
