Parts Catalog

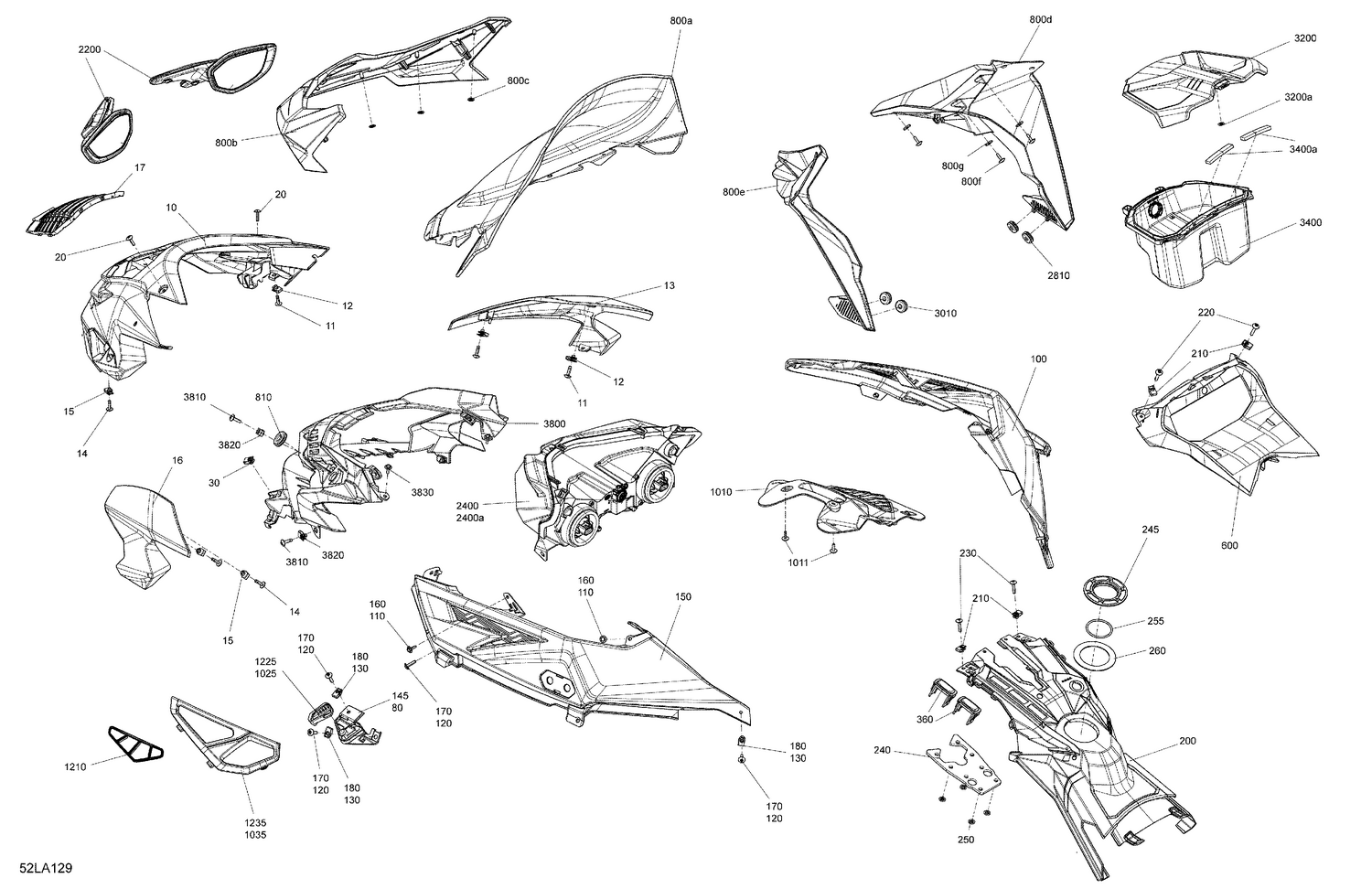

07- Body - Hood Section and WindShield PRO TK

Parts (55)

Ref	Part Number	Description
10	517306816	Center Hood
11	250000528	Torx Screw M5 X 20
12	250000958	Panel Nut M5 X 0.8
13	517306604	White, RH Front Hood
14	250000528	Torx Screw M5 X 20
15	250000958	Panel Nut M5 X 0.8
16	517306605	White, LH Front Hood
17	517306684	Hood Grill
20	250000528	Torx Screw M5 X 20
30	250000958	Panel Nut M5 X 0.8
80	517306450	RH Knob Part
100	517307222	RH Upper Side Panel
110	250000725	Screw M4 X 16
120	250000528	Torx Screw M5 X 20
130	250000958	Panel Nut M5 X 0.8
145	517306451	LH Knob Part
150	517306069	LH Upper Side Panel
160	250000725	Screw M4 X 16
170	250000528	Torx Screw M5 X 20
180	250000958	Panel Nut M5 X 0.8
200	517306573	Console Rear
210	250000958	Panel Nut M5 X 0.8
220	250000587	Torx Screw M5 X 26
230	250000587	Torx Screw M5 X 26
240	517306398	Foam Console
245	517306602	Console Nut
250	732610072	Push Nut
255	706002839	O-Ring
260	517309451	Joint This part replaces 517307197.
360	517306808	Switch Hole Cap
600	517307441	Gauge Support
800a	517306943	Windshield XL
800b	517306183	Deep Black, Windshield Support
800c	732610072	Push Nut
800d	517306897	RH Upper Air Deflector
800e	517306896	LH Upper Air Deflector
800f	250000889	Screw M4 X 16
800g	250200024	Rubber Washer 5 mm
810	517303756	Grommet
1010	517306769	RH Grill
1011	250000725	Screw M4 X 16
1025	517305773	RH Rear Latch
1035	517306482	RH Trim
1210	517306705	LH Air Intake Grid
1225	517305774	LH Rear Latch
1235	517306481	LH Trim
2200	517309198	Rear-View Mirror Kit This part replaces 517306490.
2400a	415130081	Bulb
2810	517307161	Grommet
3010	517307161	Grommet
3200a	732610072	Push Nut
3400a	517305157	Seal Joint
3800	517306824	Black, Head Lamp Bezel
3810	250000528	Torx Screw M5 X 20
3820	250000958	Panel Nut M5 X 0.8
