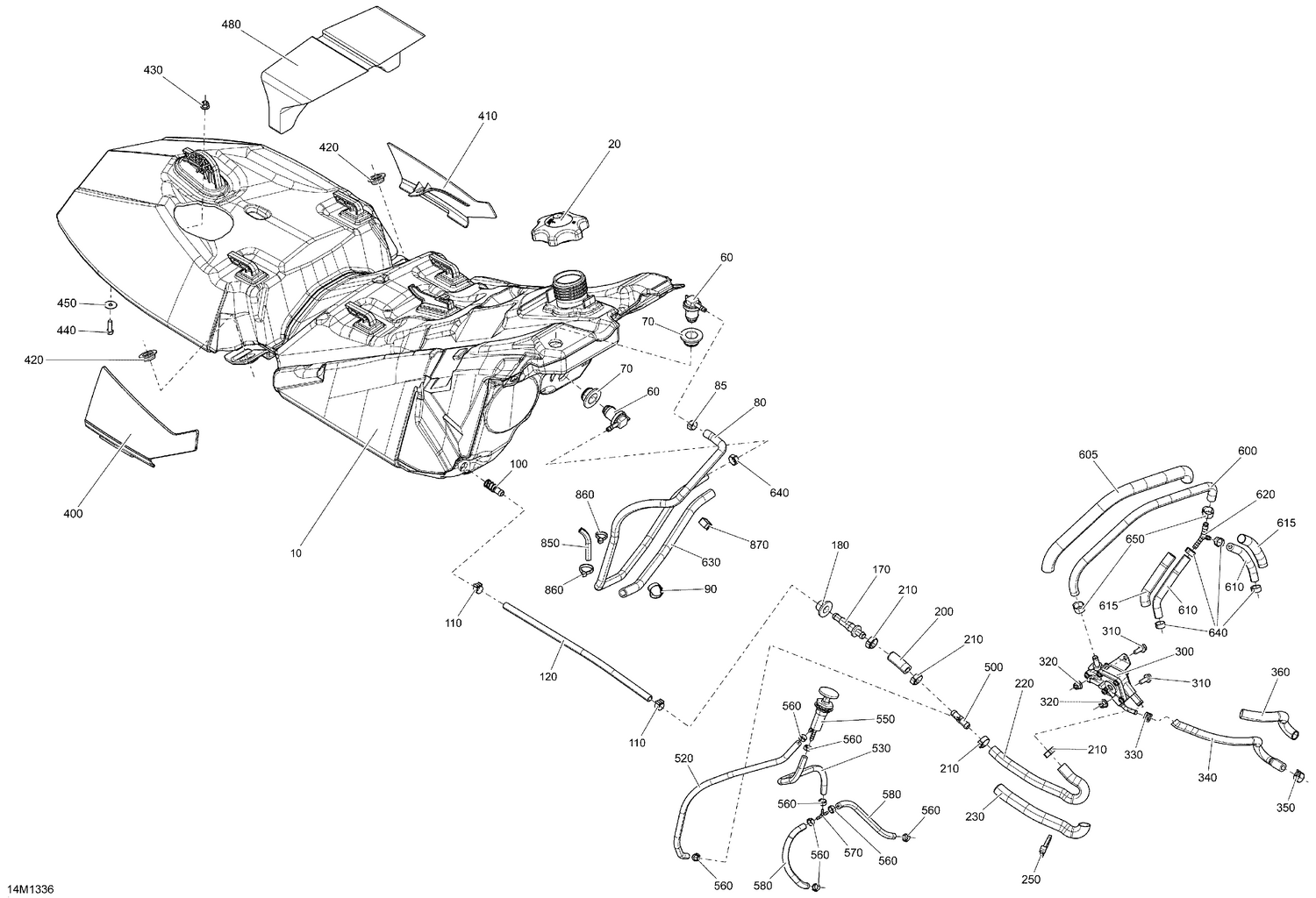

02- Fuel System
Parts (48)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 513033697 | FUEL TANK - Call your local BRP dealership |
| 20 | 513033752 | Fuel Tank Cap This part replaces 513033103. |
| 60 | 513033859 | Remote Vent This part replaces 513033517. |
| 70 | 513033596 | Grommet |
| 80 | 513033565 | Hose |
| 85 | 293650025 | Oetiker Gear Clamp |
| 90 | 414115200 | Tie-Rap 180 mm |
| 100 | 414872100 | Fuel Filter Strainer |
| 110 | 513033010 | Norma Spring Clamp |
| 120 | 219704391 | Polyurethane Hose 1000mm Long This part replaces 513033332. |
| 170 | 414872700 | Male Connector |
| 180 | 513033435 | Grommet |
| 200 | 513033444 | HOSE 9.53MM ID - 40MM - Call your local BRP dealership |
| 210 | 293650053 | Crimp Clamp |
| 220 | 513033439 | FORMED HOSE - Call your local BRP dealership |
| 230 | 219704408 | Tubing 16 Mm 1000Mm Long |
| 250 | 414115200 | Tie-Rap 180 mm |
| 300 | 513033669 | Fuel Pump |
| 310 | 207661644 | Hex. Flange Screw M6 X 16 |
| 320 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 330 | 414415200 | Spring Clamp |
| 340 | 513033111 | FORMED HOSE - Call your local BRP dealership |
| 350 | 513033029 | Universal Spring Clamp |
| 360 | 219704400 | Was 409901800 Tubing (13 mm) |
| 400 | 513033418 | RH Cap |
| 410 | 513033419 | LH Cap |
| 420 | 513033326 | Shoulder Bushing |
| 430 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 440 | 207162044 | Hex. Screw M6 X 20 |
| 450 | 224060201 | Flat Washer |
| 480 | 513033528 | FOAM - Call your local BRP dealership |
| 500 | 415119300 | T-Fitting |
| 520 | 709000665 | HOSE - Call your local BRP dealership This part replaces 513033423. |
| 530 | 709000665 | HOSE - Call your local BRP dealership This part replaces 513033423. |
| 550 | 513033441 | Primer |
| 560 | 293650043 | Oetiker Gear Clamp |
| 570 | 414222400 | T-Fitting |
| 580 | 709000665 | HOSE - Call your local BRP dealership This part replaces 513033423. |
| 600 | 219704612 | Hose 3000Mm Long This part replaces 219704441. |
| 605 | 219704408 | Tubing 16 Mm 1000Mm Long |
| 610 | 513033565 | Hose |
| 615 | 219704400 | Was 409901800 Tubing (13 mm) |
| 620 | 513033672 | Y Connector |
| 630 | 219704400 | Was 409901800 Tubing (13 mm) |
| 640 | 293650025 | Oetiker Gear Clamp |
| 650 | 293650125 | Oetiker Clamp |
| 850 | 219704405 | TRIM 30000MM LONG - Call your local BRP dealership |
| 860 | 293750002 | Tie Wrap 142 mm |
