Parts Catalog

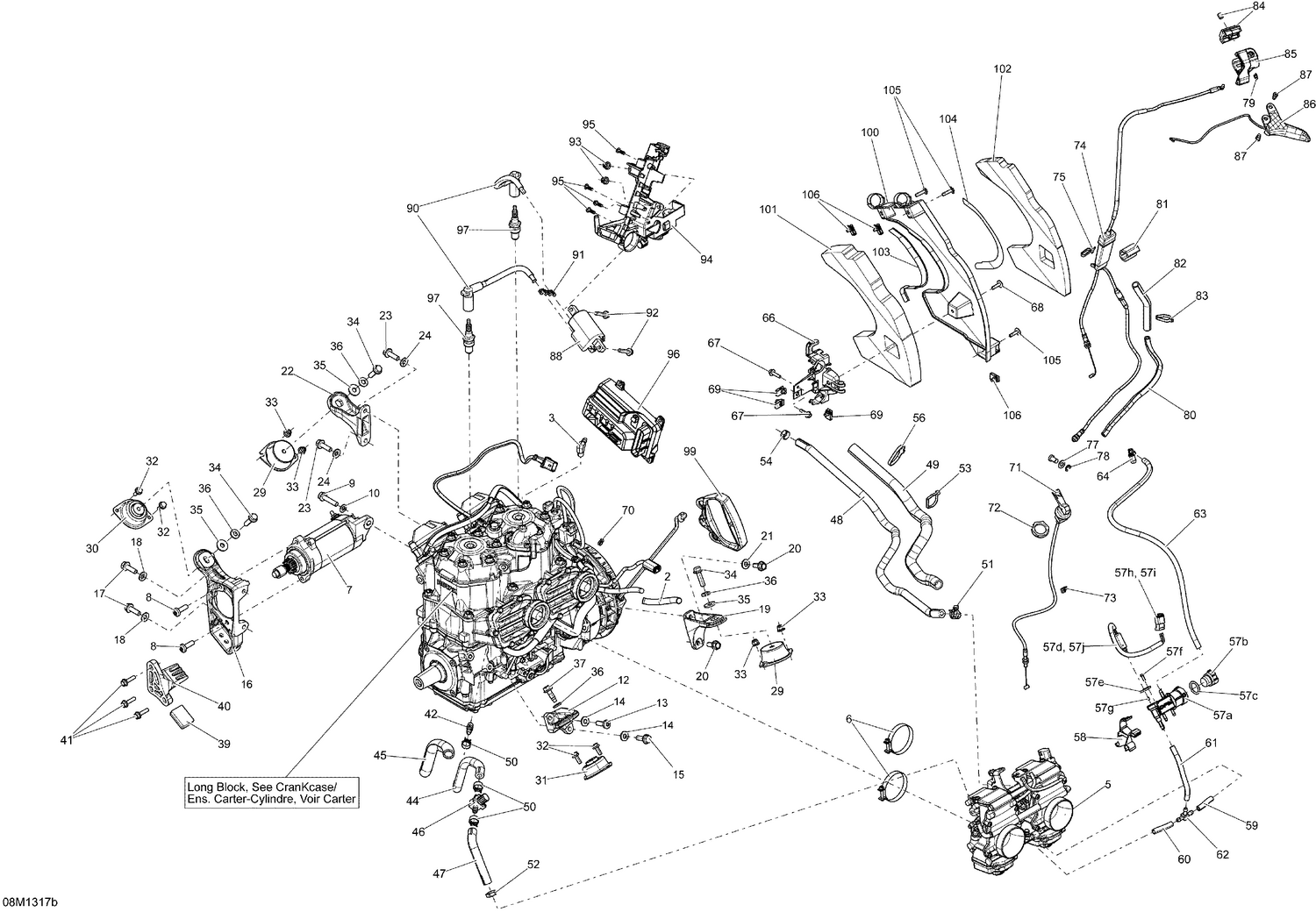

01- Engine And Engine Support 800RPTEK

Parts (99)

Ref	Part Number	Description
2	219704407	Tubing 10 MM 1000MM Long
3	293700045	ELBOW FITTING 90 - Call your local BRP dealership
5	403138805	CARBURATOR KIT, TM40-B397 - Call your local BRP dealership
6	512059835	Gemi Clamp
7	XXX	Not Available As Spare Parts
8	XXX	Not Available As Spare Parts
9	XXX	Not Available As Spare Parts
10	XXX	Not Available As Spare Parts
12	512060478	Rear Support, PTO
13	250000752	Torx Screw M8 X 1.25 X 25, Scotch Grip This part replaces 250000248.
14	250200146	Conical Spring Washer M8
15	207582586	Hex. Flange Screw M8 X 25, Scotch Grip
16	512060714	Front Support, PTO
17	207582586	Hex. Flange Screw M8 X 25, Scotch Grip
18	250200146	Conical Spring Washer M8
19	512060559	Rear Support, MAG
20	207582044	Hex. Flange Screw M8 X 20, Scotch Grip
21	250200146	Conical Spring Washer M8
22	512060469	Front Support, MAG
23	207582586	Hex. Flange Screw M8 X 25, Scotch Grip
24	250200146	Conical Spring Washer M8
29	512060729	Rubber Mount
30	512061507	Vibration Damper This part replaces 512060387.
31	512060448	Rubber Mount
32	207561644	Hex. Flange Screw M6 X 16, Scotch Grip
33	233261414	Hex. Flange Elastic Nut M6 x 1.0
34	207683044	Hex. Flange Screw M8 X 30
35	503183200	Yellow, Washer
36	250200146	Conical Spring Washer M8
37	250000796	Hex. Flange Screw M8 X 1.25 X 25 This part replaces 250000570.
39	512060766	Stopper
40	512060576	Stopper Support
41	207562544	Hex. Flange Screw M6 X 25
42	512060196	Male Connector 1/8"-27 NPT
44	512060357	HOSE FORMED ENGINE OUTLET - Call your local BRP dealership
45	219704408	Tubing 16 Mm 1000Mm Long
46	512059324	Valve 5/16”
47	512060353	Hose Formed
48	512060347	Hose Formed
49	219704408	Tubing 16 Mm 1000Mm Long
50	414655700	Spring Clamp
51	293650214	Norma Spring Clamp
52	293650125	Oetiker Clamp
53	414115200	Tie-Rap 180 mm
54	293650046	Oetiker Clamp
56	414115200	Tie-Rap 180 mm
57b	270600009	CAP - Call your local BRP dealership
57c	293300042	O-RING - Call your local BRP dealership
57d	515175701	PRESSURE MANIFOLD HARNESS - Call your local BRP dealership
57e	415061600	SOLENOID LOCK - Call your local BRP dealership
57f	241140060	Screw K40 X 10
57g	404161825	STARTER JET - Call your local BRP dealership
57h	515175670	Female Terminal Housing, 2 Circuits
57i	515175675	Female Lock, 2 Circuits
57j	219704424	Vinyl Tubing, Low Temp 3000Mm Long
58	512060229	DPM SUPPORT - Call your local BRP dealership
59	219704410	Polyurethane Hose 10000Mm Long
60	219704410	Polyurethane Hose 10000Mm Long
61	219704410	Polyurethane Hose 10000Mm Long
62	414729300	T-FITTING - Call your local BRP dealership
63	219704410	Polyurethane Hose 10000Mm Long
64	414580700	Male Connector
66	512060298	Solenoid Support
67	207652044	Hex.Flange Screw M5 X 20
68	250000528	Torx Screw M5 X 20
69	250000958	Panel Nut M5 X 0.8 This part replaces 250000079.
70	293750001	Tie Wrap 94 mm
71	512060672	Choke Cable
72	512060671	Plastic Nut
73	414115200	Tie-Rap 180 mm
74	512060893	Throttle Cable This part replaces 512060677.
75	414115200	Tie-Rap 180 mm
77	234081100	Flat Washer 8 mm, Nylon
78	414753500	Circlip
79	414274500	Circlip
80	219704425	Tubing 6 Mm 3000Mm Long
81	512060313	Protector
82	219704407	Tubing 10 MM 1000MM Long
83	414115200	Tie-Rap 180 mm
84	512060859	Upper Housing
85	512060860	Lower Housing
86	512061252	Throttle Handle Ass'y This part replaces 512060616.
87	732601143	Flange Screw
88	512059968	Ignition Coil
90	512060291	Cable
91	410914600	Plastic Clip, Spark Plug Wire
92	207563034	Hex. Flange Screw M6 X 30, Scotch Grip This part replaces 207663044.
93	233261414	Hex. Flange Elastic Nut M6 x 1.0
94	512060924	Coils Support This part replaces 512060745.
95	241151640	Hex. Flange Screw K50 X 2.24 X 16
96	512060684	CALIBRATED MODULE, 800R POWERT.E.K. - Call your local BRP dealership
97	415128524	Spark Plug NGK BR9ECS
99	512060136	Starter Grip
100	512060338	Noise Shield
101	512060341	Inner Noise Foam
102	512060342	Outer Noise Foam
103	512060574	Heat Shield
104	512060575	Heat Shield
105	250000528	Torx Screw M5 X 20
