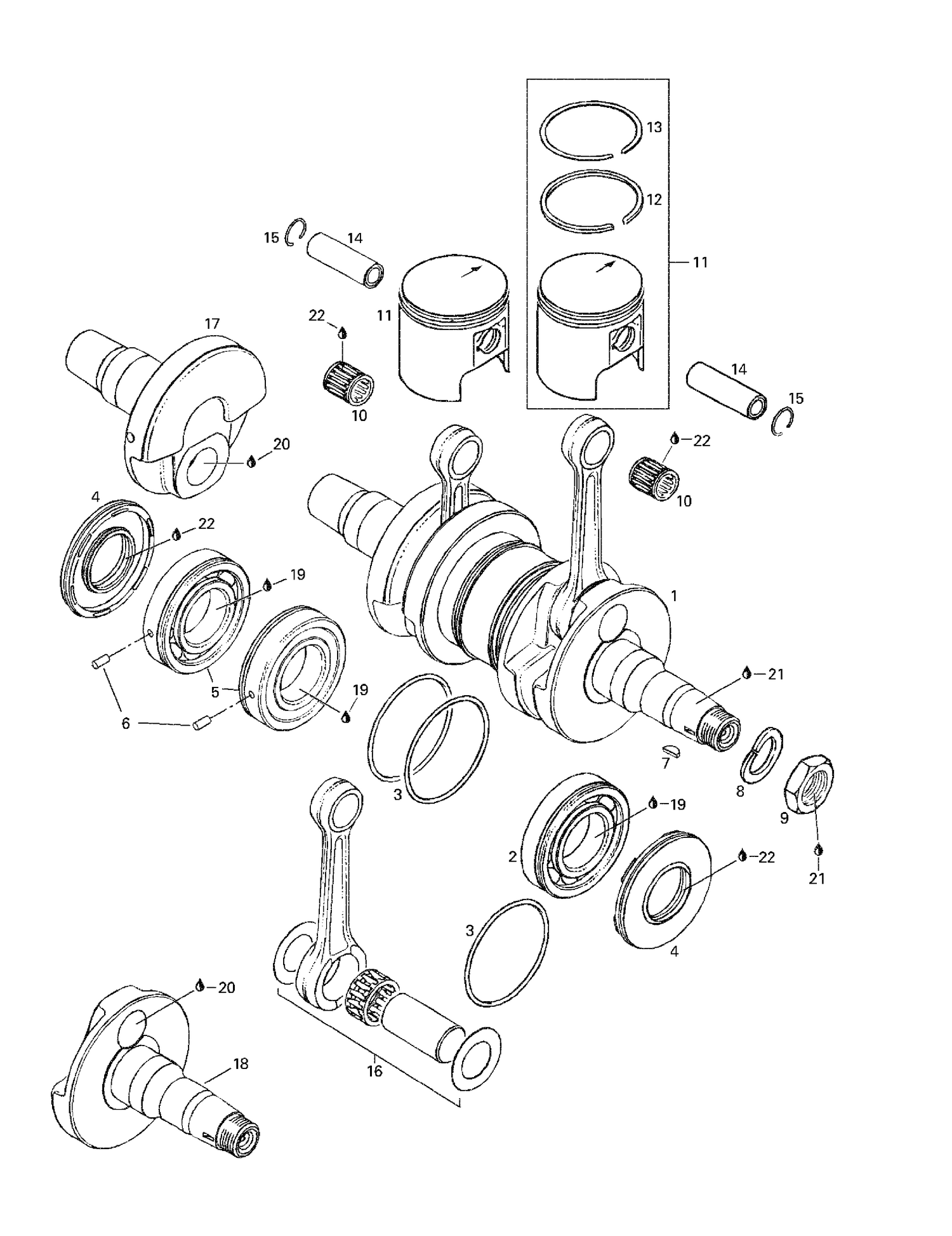

| Ref | Part Number | Description |
|---|
| 2 |
420832584 |
Bearing_Ball This part replaces 420832231. |
| 3 |
293300022 |
O-Ring, 64 mm X 2 mm This part replaces 420250165. |
| 4 |
420831952 |
Oil Seal This part replaces 420831950. |
| 6 |
420929972 |
Dowel Pin |
| 7 |
420246055 |
Woodruff Key |
| 8 |
420945759 |
Lock Washer, 22 mm |
| 9 |
420842239 |
Hex. Nut, M22 X 1.5 This part replaces 420842230. |
| 10 |
420932904 |
Needle Bearing |
| 12 |
420915890 |
Rectangular Ring 62.0 mm |
| 13 |
420215210 |
Semi-Trapez Ring 62.0 mm |
| 14 |
420916260 |
GUDGEON PIN - Call your local BRP dealership |
| 15 |
420945735 |
Piston Circlip |
| 16 |
420996334 |
Rod repair kit |
| 17 |
420818203 |
Crankshaft half PTO |
| 18 |
420819010 |
MAG SIDE HALF-CRANK - Call your local BRP dealership This part replaces 420919979. |
| 19 |
219704461 |
LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership |
| 20 |
219703000 |
Sealant Loctite 648 This part replaces 293800039. |
| 21 |
293800060 |
Loctite 243, 10 ml This part replaces 413703000. |
| 420215211 |
Semi-Trapez |
Ring 62.25 mm 420215211 |
| 420215212 |
Semi-Trapez |
Ring 62.5 mm 420215212 |
| 420887471 |
Oversize |
Piston Ass'y 62.19 mm 420887471 |
| 420887472 |
Oversize |
Piston Ass'y 62.44 mm 420887472 |
| 420915891 |
Rectangular |
Ring 62.25 mm 420915891 |
| 420915892 |
Rectangular |
Ring 62.5 mm 420915892 |
