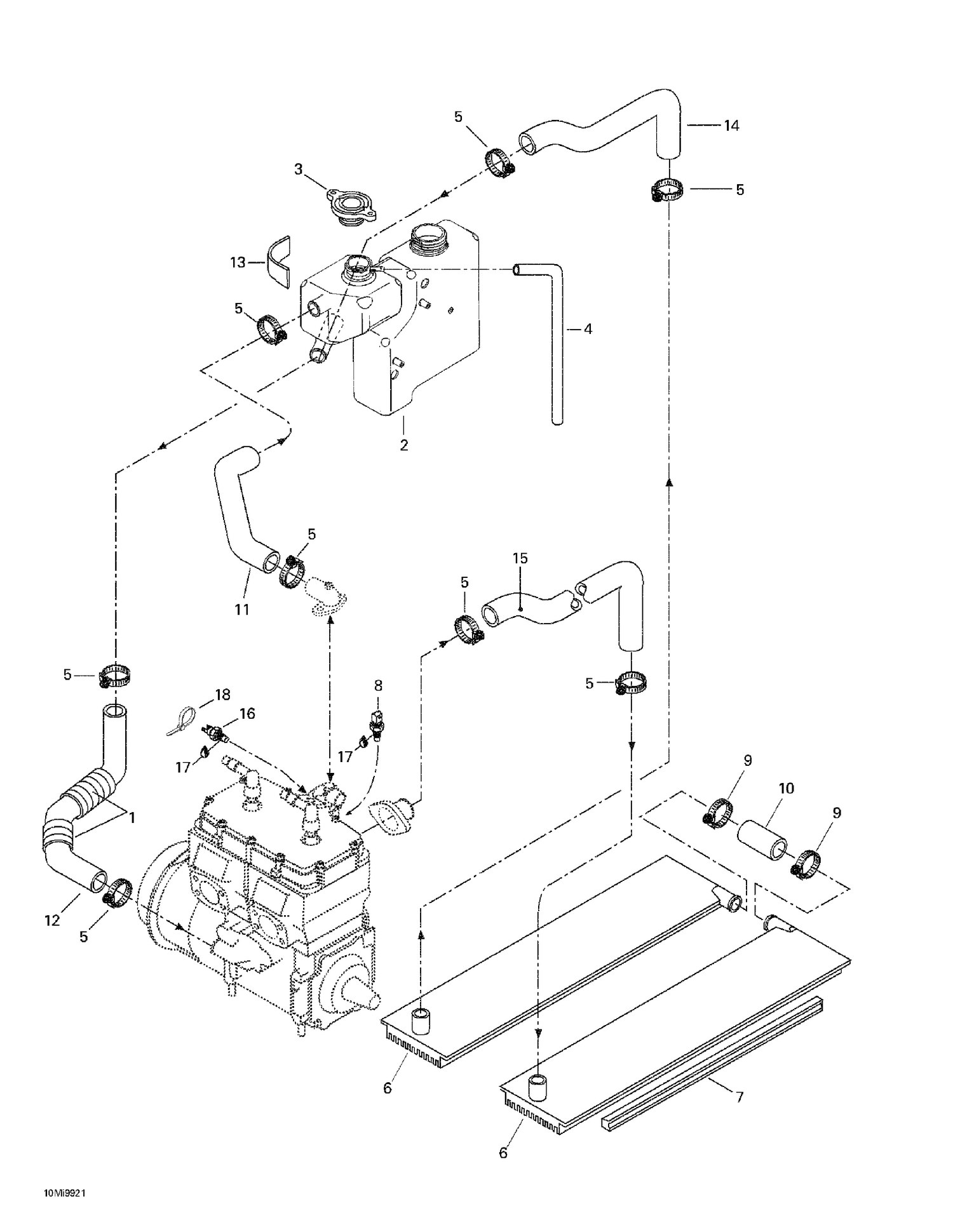

01- Cooling System
Parts (19)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 219704413 | Was 415084700 Protective Shield |
| 2 | 519000014 | Coolant Tank |
| 3 | 509000187 | Pressure Cap This part replaces 414684700. |
| 4 | 219704410 | Polyurethane Hose 10000Mm Long |
| 5 | 408800400 | TRIDON GEAR CLAMP - Call your local BRP dealership |
| 6 | 517280510 | RH Radiator |
| 7 | 415056500 | Radiator Protector |
| 8 | 278002895 | Temperature Sensor This part replaces 278001016. |
| 9 | 408803400 | Clamp Tridon |
| 10 | 414795800 | Radiator Hose |
| 11 | 414973200 | Engine Outlet Hose |
| 12 | 415010400 | Engine Inlet Hose |
| 13 | 415123400 | Reflection Sheet |
| 14 | 414973000 | Radiator Outlet Hose |
| 15 | 415008400 | Radiator Inlet Hose |
| 16 | 512047000 | Temperature Sensor |
| 17 | 219704455 | Was 293800018 Loctite 592, 50 ml |
| 517280511 | LH | Radiator 517280511 |
| 517280511 | Radiateur | GA 517280511 |
