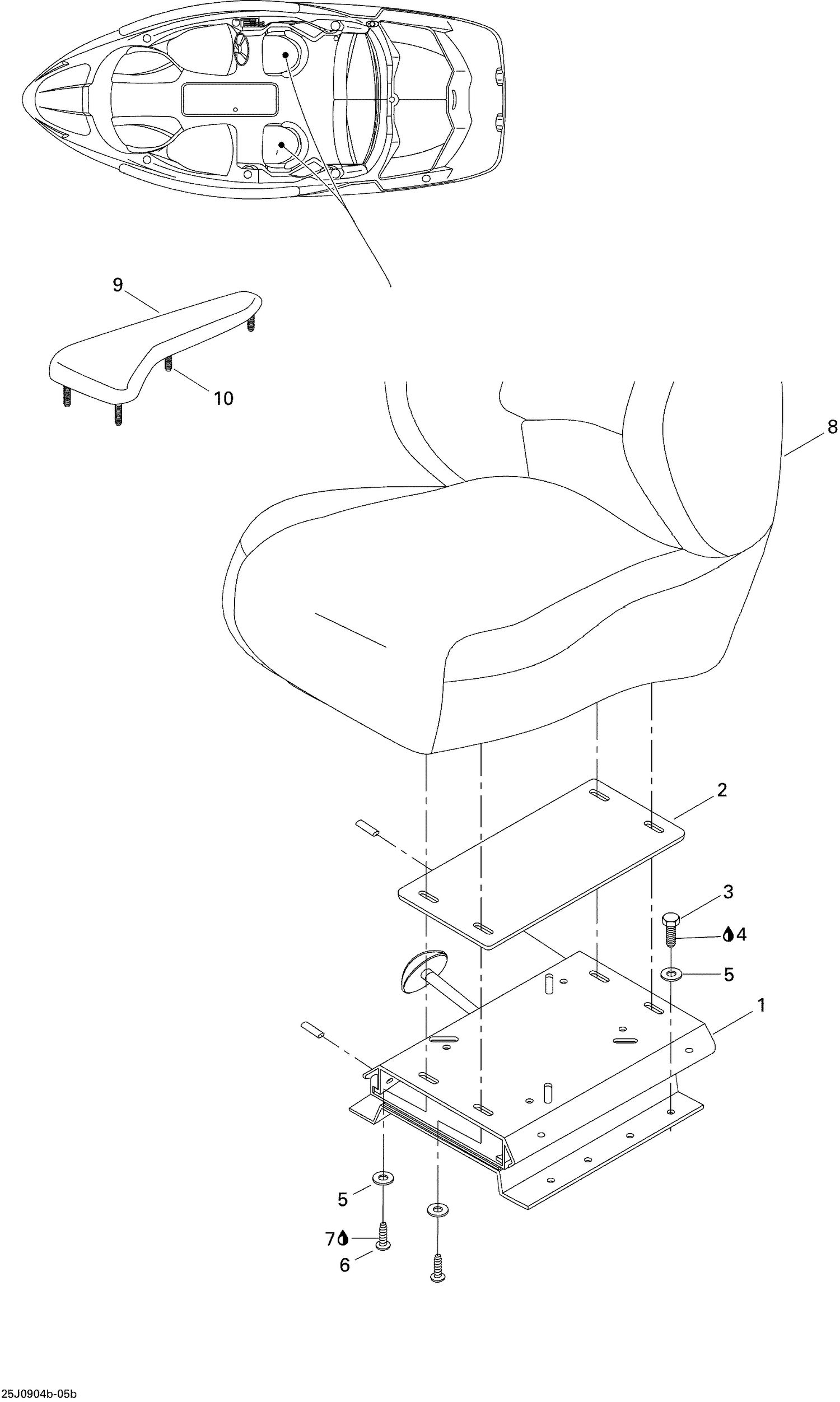

| Ref | Part Number | Description |
|---|
| 1 |
204614717 |
SEAT BASE, PORT SIDE - Call your local BRP dealership |
| 1 |
204614718 |
SEAT BASE, STARBOARD - Call your local BRP dealership |
| 2 |
204614821 |
SEAT BASE SHIM - Call your local BRP dealership |
| 3 |
207163560 |
Hex. Screw M6 X 35 |
| 4 |
293800060 |
Loctite 243, 10 ml |
| 5 |
234062600 |
Flat Washer M6, Stainless |
| 6 |
204100226 |
HEX. SCREW 1/4-20 X 1 - Call your local BRP dealership |
| 7 |
293800060 |
Loctite 243, 10 ml |
| 8 |
204614721 |
Seat Ass'y |
| 9 |
204613405 |
Elbowrest Ass'y, Starboard |
| 9 |
204613407 |
ELBOWREST ASS'Y, PORT SIDE - Call your local BRP dealership |
