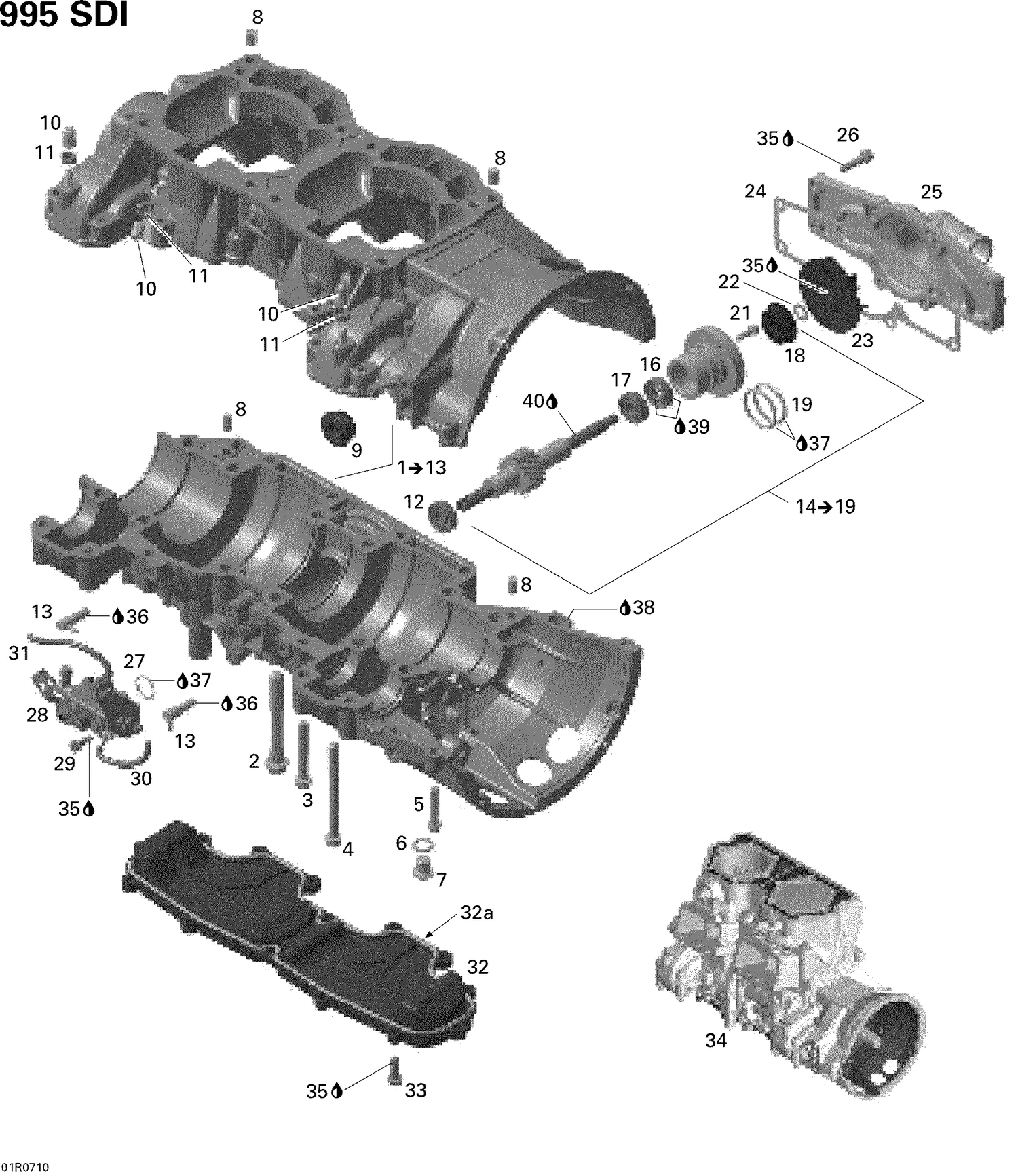

01- Crankcase
Parts (37)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 420440442 | Torx Flange Screw M10 X 85 |
| 3 | 420440392 | Torx Flange Screw M10 X 55 |
| 4 | 420440412 | Torx Flange Screw M8 X 90 |
| 5 | 420440274 | Torx Flange Screw M6 X 35 This part replaces 420440272. |
| 6 | 420250640 | Copper Washer |
| 7 | 420241701 | Plug Screw M12 x 1,5 This part replaces 420241700. |
| 8 | 420632010 | Center Pin 8 X 12 |
| 9 | 420660890 | Cable Grommet |
| 10 | 420960770 | Cap |
| 11 | 420853653 | Clamp |
| 12 | 420232100 | Ball Bearing |
| 13 | 420956511 | Check Valve This part replaces 420956510. |
| 16 | 420230195 | Oil Seal This part replaces 420230196. |
| 17 | 420232100 | Ball Bearing |
| 18 | 420650371 | Rotary Seal This part replaces 420650370. |
| 19 | 420950890 | O-Ring |
| 21 | 420840514 | Allen Screw M5 x 16 This part replaces 420840511. |
| 22 | 420227945 | Thrust Washer |
| 23 | 420922805 | Water Impeller |
| 24 | 420630620 | GASKET - Call your local BRP dealership |
| 25 | 420922920 | WATER PUMP HOUSING - Call your local BRP dealership |
| 26 | 420641238 | Torx Flange Screw M6 X 25 This part replaces 420440237. |
| 27 | 293300041 | O-Ring |
| 28 | 420888772 | OIL PUMP ASS'Y - Call your local BRP dealership |
| 29 | 420841555 | Hex. Tapping Screw M5 X 20 |
| 30 | 219704404 | Oil Hose 1500Mm Long |
| 31 | 219704404 | Oil Hose 1500Mm Long |
| 32 | 420812342 | Waterduct Cover, Heat Exchanger |
| 32a | 420631190 | GASKET - Call your local BRP dealership |
| 33 | 420941251 | SCREW-TAPPING - Call your local BRP dealership This part replaces 420941250. |
| 34 | 420099502 | Short Block 995 SDI |
| 34 | 421000637 | REBUILT - CYLINDER - SHORT BLOCK 995SDI - Call your local BRP dealership |
| 35 | 293800060 | Loctite 243, 10 ml |
| 36 | 219703000 | Sealant Loctite 648 This part replaces 413711400. |
| 37 | 413707000 | Dow Corning 111, 150 g |
| 38 | 293800081 | Loctite 5910, 300 ml |
| 39 | 420899271 | Petamo Grease, GHY133N, 400 g |
