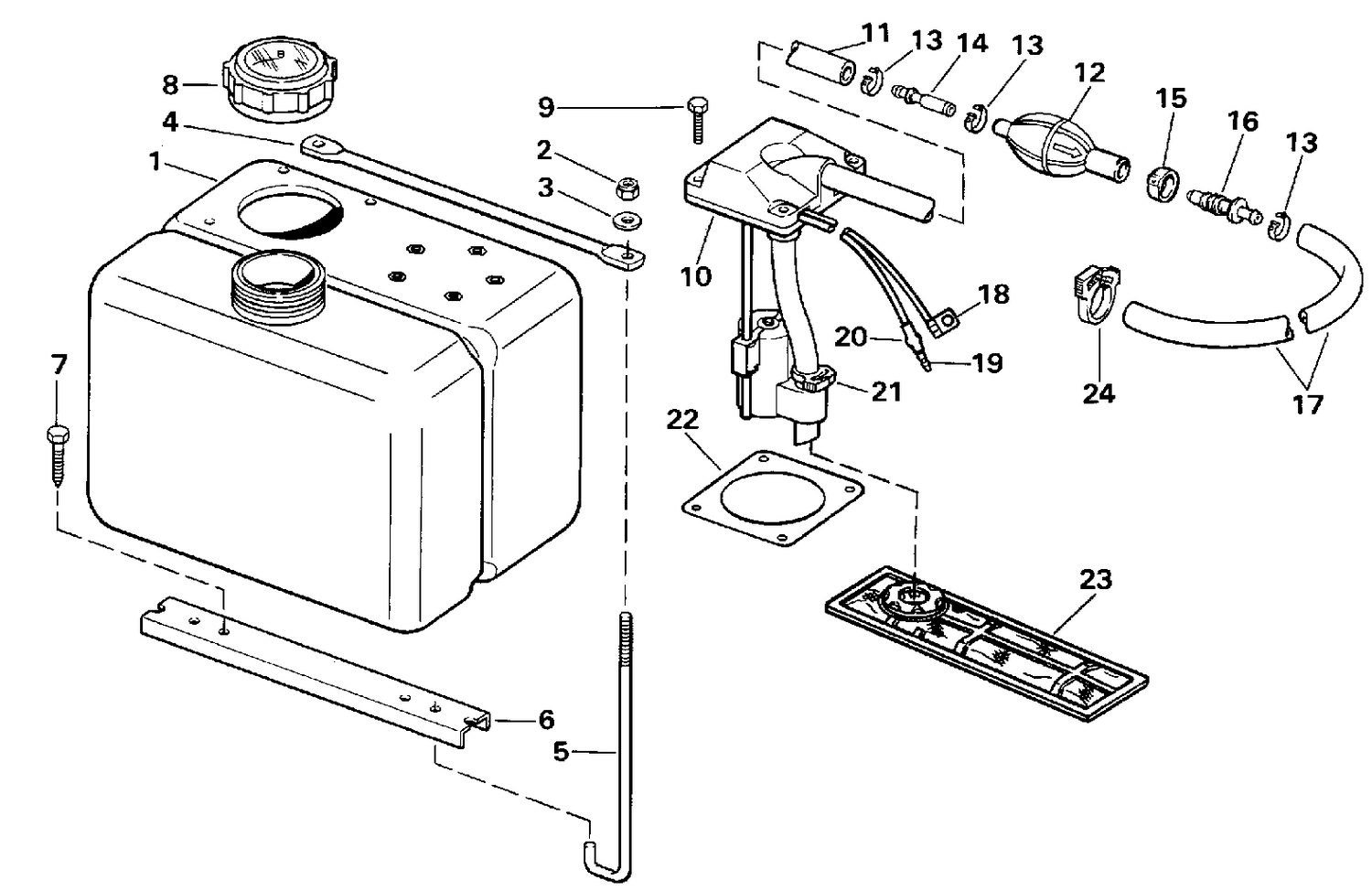

VRO OIL TANK KIT-1.8 GALLON
Parts (25)
| Ref | Part Number | Description |
|---|---|---|
| 4 | 0124290 | CROSS BAR |
| 5 | 0124291 | HOOK BELT |
| 12 | 0174157 | BULB, Primer |
| 14 | 0396661 | VALVE, Inlet |
| 19 | 0125295 | TERMINAL BULLET |
| 20 | 0125294 | SLEEVE |
| 21 | 0322654 | PINCE RAPIDE, flexible d'huile |
| 3001 | 515178435 | Diagnostic Cap |
| 3005 | 250001062 | Hex. Flanged Screw M6 X 16 |
| 3600 | 515178248 | Ground Wire |
| 3605 | 207662044 | Hex. Flange Screw M6 X 20 |
| 3607 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 3610 | 250000911 | Hex. Flange Screw M5 X 16 |
| 4320 | 515178891 | Ultracapacitor Module |
| 4321 | 233151414 | Nut Flange Hex. M5 |
| 4323 | 707000746 | Rubber Mount |
| 4327a | XXX | Not Available As Spare Parts |
| 4328 | 515179279 | Battery Support |
| 4330 | 710001817 | Protector Cap |
| 4340a | 293450275 | Insert |
| 4370 | 207151244 | Hex. Screw M5 X 12 |
| 4371 | 391301600 | Washer |
| 4700 | 515178155 | Ground Wire |
| 4720 | 207661644 | Hex. Flange Screw M6 X 16 |
| 0174637 | 5008617 | OIL TANK. Assy This part replaces 0174637. |
