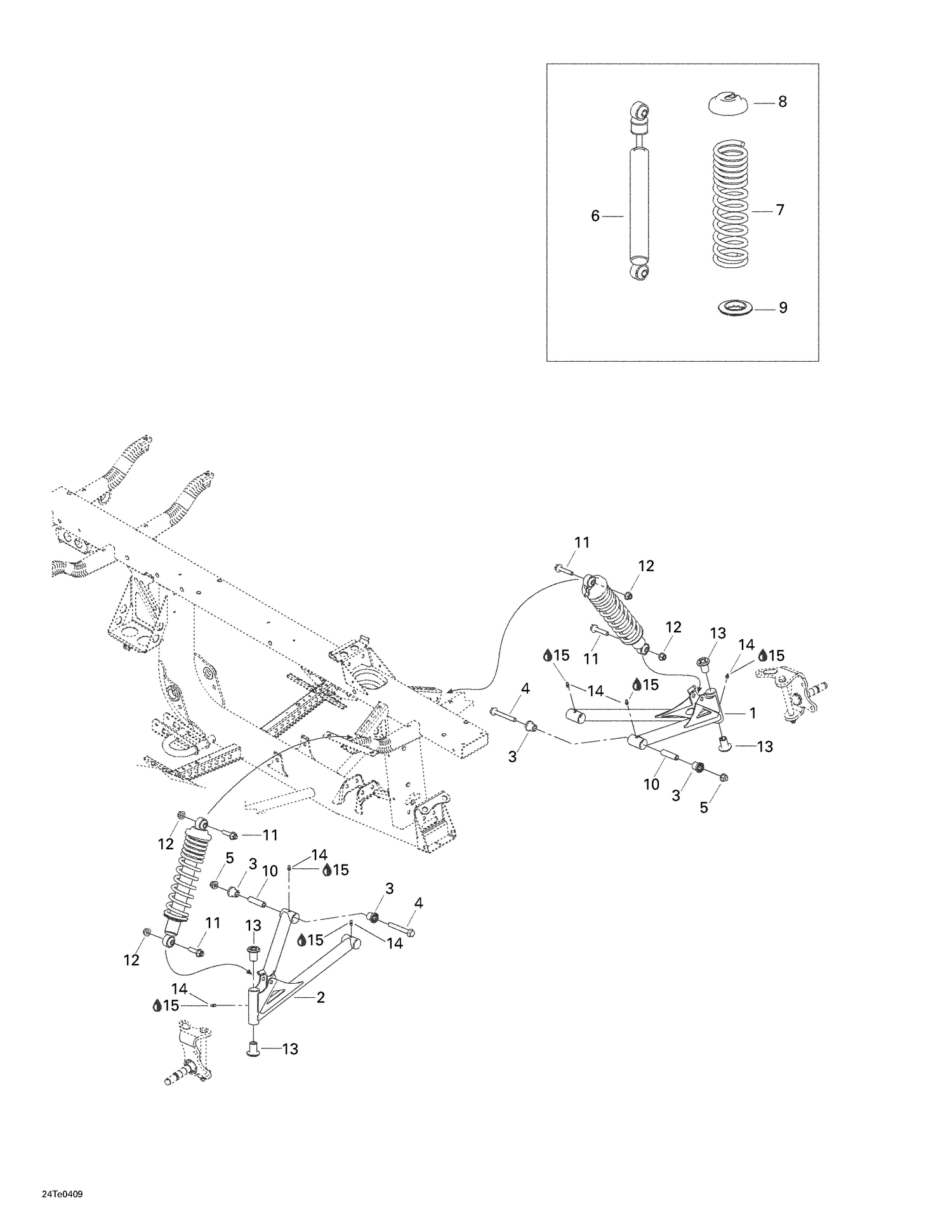

07- Front Suspension
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 706200175 | LH ARM - Call your local BRP dealership |
| 2 | 706200176 | RH Arm |
| 3 | 706200063 | Cushion |
| 4 | 207608044 | HEX. FLANGED SCREW M10 X 80 - Call your local BRP dealership |
| 5 | 233201414 | Hex. Flange Elastic Nut M10 |
| 6 | 706200183 | Front Shock |
| 7 | 706200240 | Red Front Spring |
| 8 | 706200881 | Spring Stopper This part replaces 503140600. |
| 9 | 706000197 | Spring Seat |
| 10 | 706200177 | INNER BUSHING - Call your local BRP dealership |
| 11 | 207605044 | Hex. Flange Screw M10 X 50 |
| 12 | 233201414 | Hex. Flange Elastic Nut M10 |
| 13 | 706200169 | CUSHION - Call your local BRP dealership |
| 14 | 408200700 | Grease Fitting |
