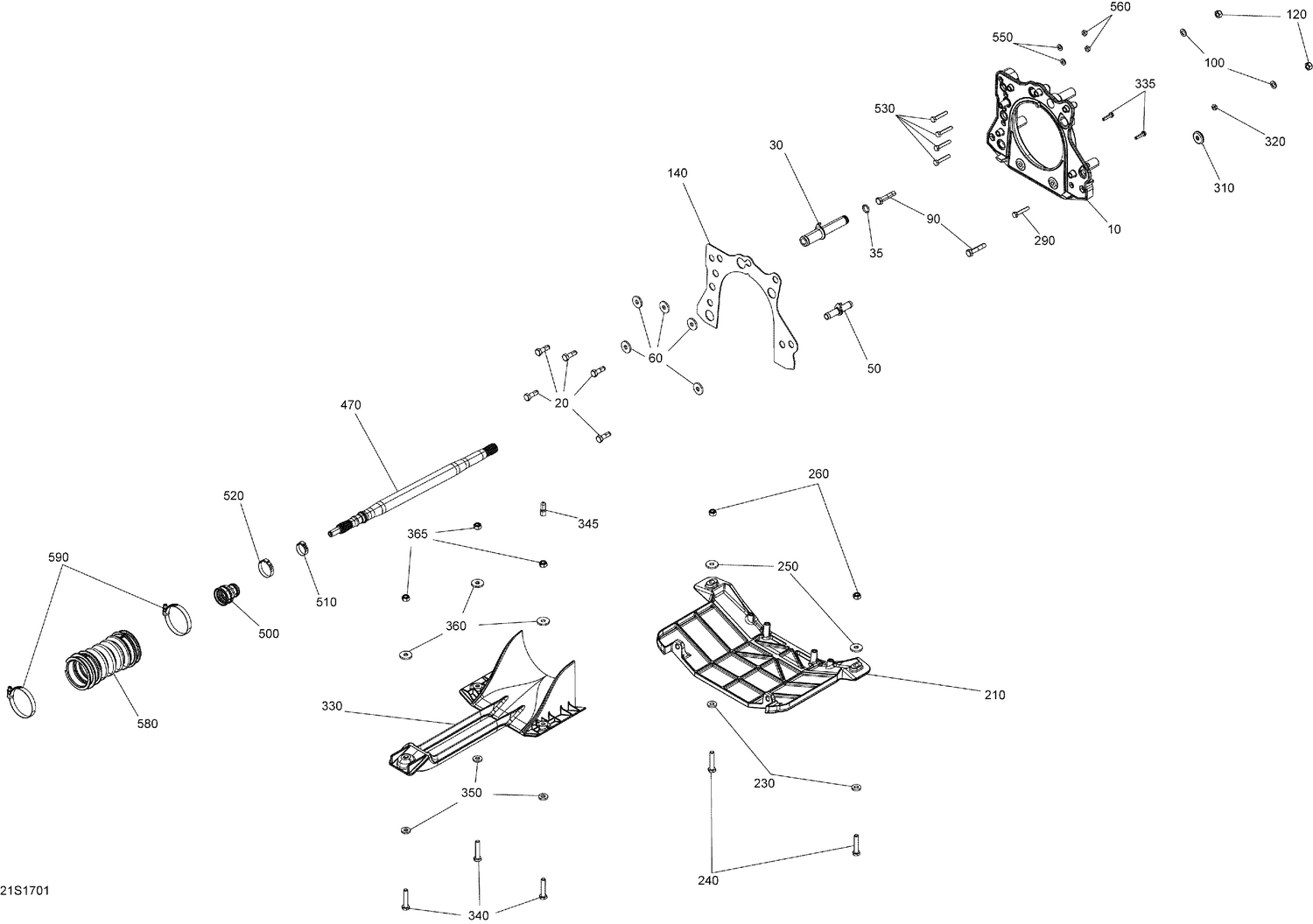

05- Propulsion - All Models
Parts (33)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 271001956 | Anodized Pump Support |
| 20 | 207382560 | Hex. Screw M8 X 25, Scotch Grip |
| 30 | 271001818 | Water Straight Fitting, In |
| 35 | 293300006 | O-Ring |
| 50 | 271001817 | Water Straght Fitting, Out |
| 60 | 279000336 | Flat Washer This part replaces 279000164. |
| 90 | 250000230 | Hex. Screw M8 X 40, Scotch Grip |
| 100 | 234080600 | Flat Washer M8, Stainless |
| 120 | 232581200 | Hex. Elastic Nut M8 Brass |
| 140 | 271001958 | Gasket |
| 210 | 271001840 | Riding Plate |
| 230 | 293050001 | Flat Washer M8.5 x 18 |
| 240 | 207184060 | Hex. Screw M8 X 40 |
| 250 | 279000336 | Flat Washer This part replaces 279000164. |
| 260 | 232581200 | Hex. Elastic Nut M8 Brass |
| 290 | 207363560 | Screw Hex. M6 X 35, Scotch Grip |
| 310 | 271001920 | Anode Zinc |
| 320 | 232561200 | Brass Elastic Stop Nut M6 |
| 330 | 271002011 | Pump Grate |
| 335 | 211000023 | Hex. Screw 10-14 X 7/8” |
| 340 | 207184060 | Hex. Screw M8 X 40 |
| 345 | 293000105 | Cap Plug |
| 350 | 293050001 | Flat Washer M8.5 x 18 |
| 360 | 279000336 | Flat Washer This part replaces 279000164. |
| 365 | 232581200 | Hex. Elastic Nut M8 Brass |
| 470 | 271002072 | Drive Shaft This part replaces 271001923. |
| 500 | 295501148 | Protector Sleeve Kit This part replaces 271001922. |
| 510 | 509000442 | Oeticker Gear Clamp, 25.6-706R |
| 520 | 509000181 | Oetiker Gear Clamp |
| 530 | 207363560 | Screw Hex. M6 X 35, Scotch Grip |
| 550 | 234061600 | Stainless Flat Washer M6 |
| 560 | 232561200 | Brass Elastic Stop Nut M6 |
| 580 | 271001921 | Bellow |
